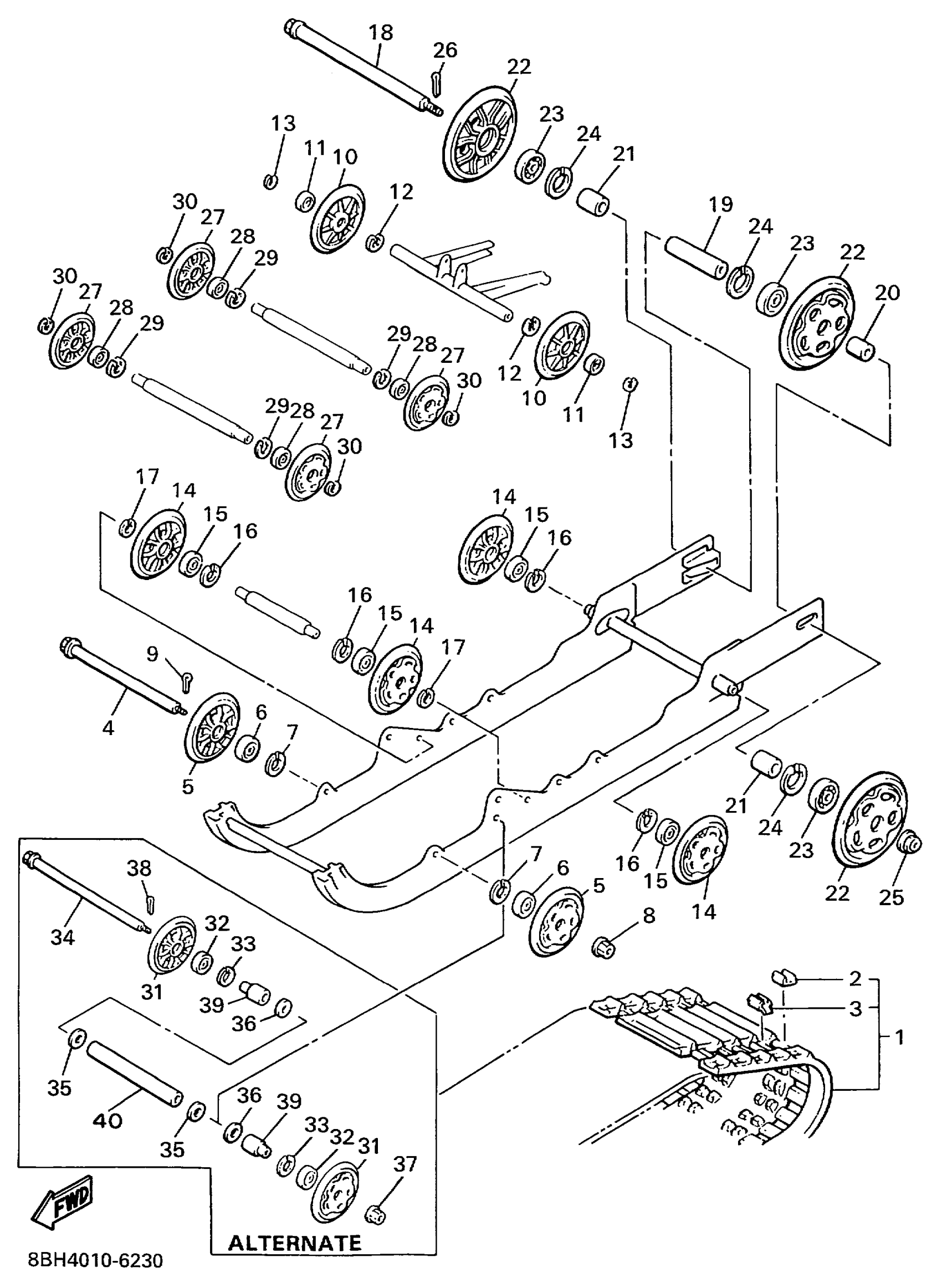

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8CC-47110-11-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.17

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

SHAFT 5

82M-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

6

BEARING(8AB)

93306-00444-00

$35.70

7

CIRCLIP(5U8)

99009-42500-00

$6.77

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

9

PIN, COTTER

91401-30025-00

$6.18

10

SUSPENSION WHEEL COMP

885-47320-01-00

$67.65

11

BEARING(8AB)

93306-00444-00

$35.70

12

CIRCLIP(5U8)

99009-42500-00

$6.77

13

CIRCLIP(1AR)

99009-20400-00

$6.17

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

15

BEARING(8AB)

93306-00444-00

$35.70

16

CIRCLIP(5U8)

99009-42500-00

$6.77

17

CIRCLIP(1AR)

99009-20400-00

$6.17

18

REAR AXLE COMP.

8L8-47520-02-00

$83.57

19

COLLAR

90387-202X4-00

Unavailable

20

COLLAR

90387-202X5-00

Unavailable

21

COLLAR(88Y)

90387-204X2-00

$10.18

22

GUIDE WHEEL COMP.

8K2-47530-00-00

$117.57

23

BEARING(8AE)

93306-20469-00

$35.49

24

CIRCLIP(48Y)

99009-47500-00

$7.66

25

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

26

PIN, COTTER

91401-30025-00

$6.18

27

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$53.83

28

BEARING(8AB)

93306-00444-00

$35.70

29

CIRCLIP(5U8)

99009-42500-00

$6.77

30

CIRCLIP(1AR)

99009-20400-00

$6.17

31

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

32

BEARING(8AB)

93306-00444-00

$35.70

33

CIRCLIP(5U8)

99009-42500-00

$6.77

34

SHAFT 5

82M-47487-00-00

Unavailable

35

WASHER, PLATE

90201-164P0-00

Unavailable

36

WASHER, PLATE(33Y)

90201-164H4-00

$8.02

37

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

38

PIN, COTTER

91401-30025-00

$6.18

39

COLLAR

90387-166M8-00

Unavailable

40

COLLAR

90387-160M7-00

Unavailable
