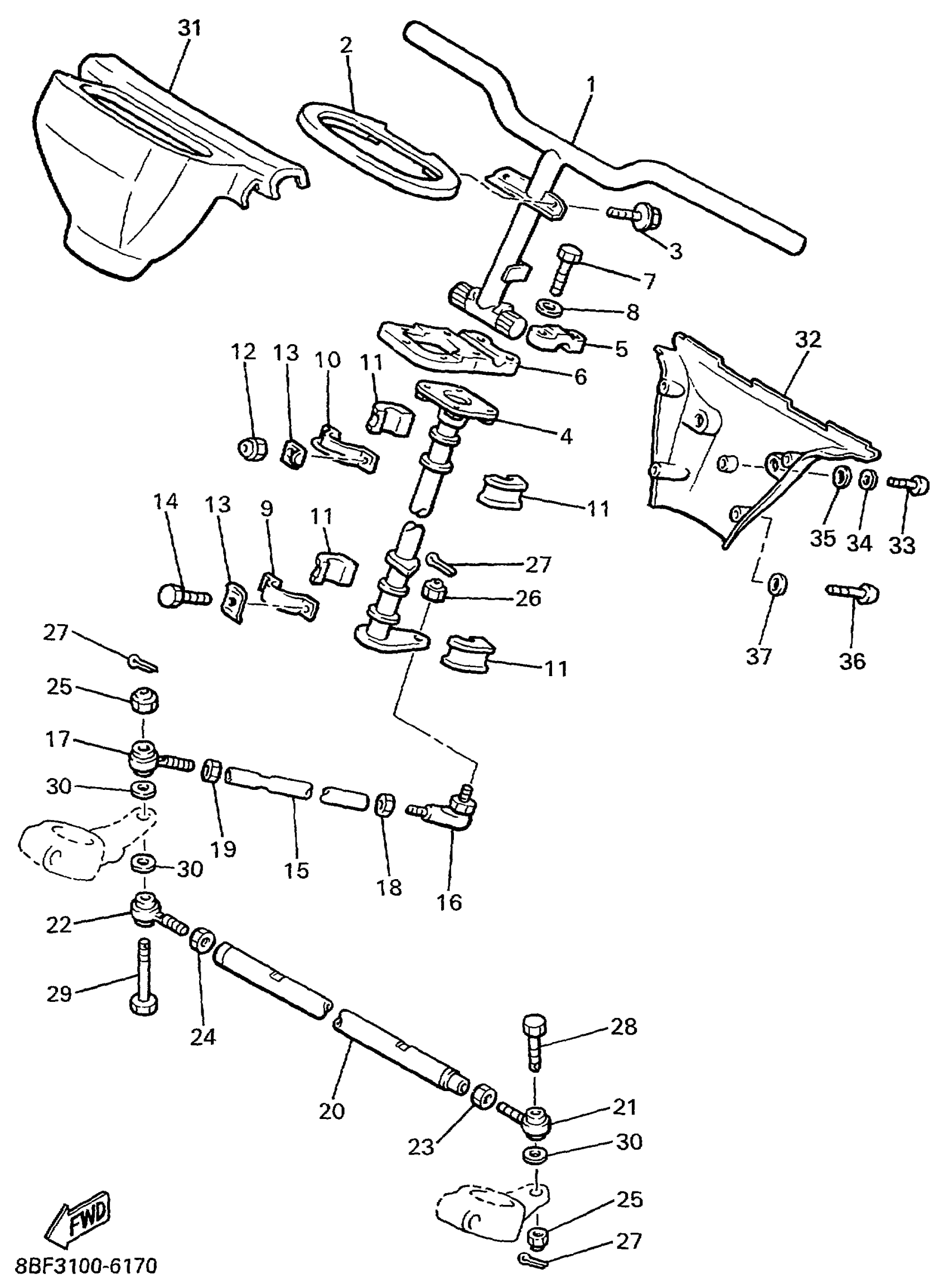

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

88H-23811-00-00

Unavailable

2

BRACKET 10

8V0-23878-00-00

Unavailable

3

BOLT, FLANGE

95817-06010-00

$3.91

4

COLUMN, STEERING 2

83V-23813-01-00

$160.42

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

6

HOLDER, HANDLE UPPER

8V0-23814-01-00

Unavailable

7

BOLT, HEXAGON

97017-08055-00

$6.88

8

WASHER(6TA)

92907-08600-00

$2.52

9

BRACKET, STEERING LOWER

84M-23868-00-00

$32.05

10

HOLDER, BEARING

84M-23872-00-00

$16.78

11

BEARING, STEERING

8F3-23812-00-00

$12.49

12

NUT, NYLON

95717-08300-00

$2.57

13

WASHER, LOCK 1

8AC-23894-01-00

$3.62

14

BOLT, HEXAGON

97017-08020-00

$6.38

15

ROD,STEERING RELAY

87F-23821-00-00

Unavailable

16

JOINT, UNIVERSAL 1

86X-23841-00-00

$51.36

17

JOINT, UNIVERSAL 3

87S-23847-01-00

$44.71

18

NUT (3WP1)

95317-10700-00

$6.17

19

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

20

ROD,TIE

89X-23831-00-00

Unavailable

21

JOINT, UNIVERSAL 2

87S-23845-01-00

$45.86

22

JOINT, UNIVERSAL 3

87S-23847-01-00

$44.71

23

NUT (3WP1)

95317-10700-00

$6.17

24

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

25

NUT, NYLON

95707-10300-00

$6.68

26

NUT, SELF-LOCKING (8J8)

90185-10085-00

$2.57

27

PIN, COTTER

91490-25020-00

$2.94

28

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

29

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

$31.92

30

WASHER PLATE (3L6)

90201-08759-00

$2.52

31

PAD, STEERING

8X9-23815-00-00

Unavailable

32

PAD,STEERING

80L-23817-02-00

Unavailable

33

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

34

WASHER(1RW)

92907-05600-00

$0.78

35

WASHER, PLAIN LARGE

92907-05200-00

$4.09

36

SCREW, PAN HEAD

98517-05030-00

$7.92

37

WASHER(1RW)

92907-05600-00

$0.78
