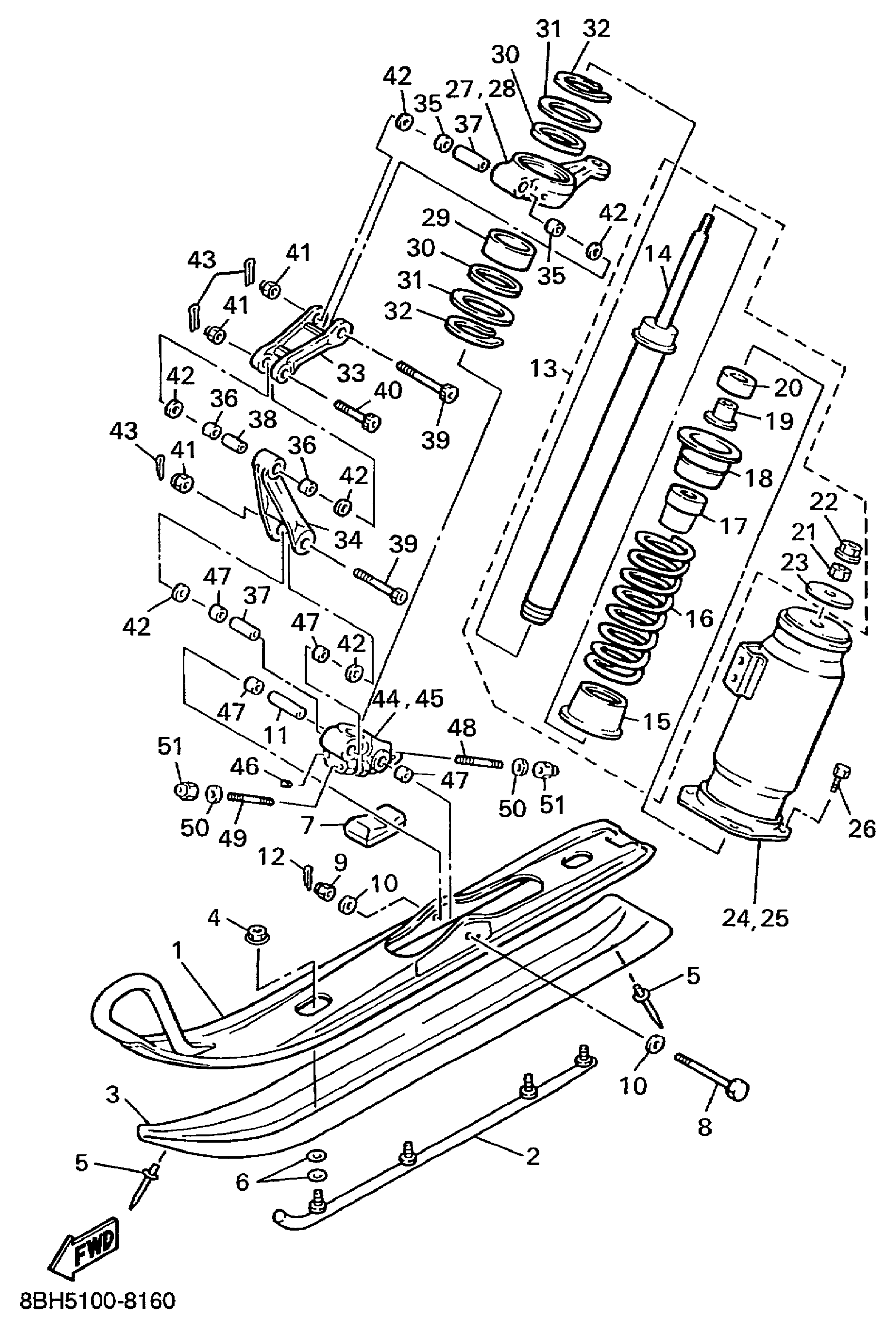

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 SKI Diagram

#

Description
Price

1

SKI 1 (88F-23710-00-00)

88F-23710-01-00

Unavailable

2

RUNNER 1

8BH-23731-00-00

$52.28

3

RUNNER 2 (8BH-23732-00-00)

8BH-23732-00-XX

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$7.09

5

RIVET, BLIND(89A)

90267-48160-00

$5.77

6

WASHER, PLATE

90201-08020-00

$4.67

7

STOPPER 1

88T-23743-00-00

$19.77

8

BOLT, WITH HAUL (31A)

90102-10050-00

$16.75

9

NUT, NYLON

95707-10300-00

$6.68

10

WASHER (7A9)

90201-100F7-00

$6.38

11

COLLAR (8V0)

90387-106J3-00

$13.95

12

PIN, COTTER

91490-20025-00

$1.31

13

ABSORBER ASSEMBLY 1

88X-2376A-00-00

Unavailable

14

. DAMPER SUB ASSEMBLY

88X-22401-00-00

Unavailable

15

SEAT, SPRING 2

82M-23777-00-00

$16.71

16

. SPRING, COMPRESSION

90501-752G6-00

Unavailable

17

. BUMP, STOP

87F-22493-00-00

Unavailable

18

PLATE, BACK UP

8AB-23788-00-00

Unavailable

19

COLLAR(82M)

90387-084R1-00

$12.29

20

WASHER

82M-23779-00-00

$12.78

21

. NUT

90170-08220-00

Unavailable

22

NUT(6L2)

95333-08600-00

$3.20

23

WASHER, PLATE(82M)

90201-080L1-00

$2.67

24

HOLDER, ABSORBER (LH)

87H-2376J-00-00

Unavailable

25

HOLDER, ABSORBER (RH)

87H-2377J-00-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

$2.55

27

ARM, OUTSIDE 1

87F-23851-01-00

Unavailable

28

ARM, OUTSIDE 2

87F-23852-01-00

Unavailable

29

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

$33.18

30

OIL SEAL (8U7)

93109-53036-00

$10.34

31

WASHER, PLATE(8W1)

90201-535H6-00

$3.78

31

WASHER, PLATE (8L9)

90201-536A1-00

$3.66

32

CIRCLIP (8L9)

93410-52061-00

$10.51

33

ARM, FRONT 1

8L0-2382E-01-00

$35.28

34

ARM, FRONT 2

8L0-2382F-00-00

$36.58

35

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

$9.15

36

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

$9.29

37

COLLAR(89A)

90387-101Y9-00

$20.45

38

COLLAR (8L0)

90387-100A4-00

$5.62

39

BOLT, WITH HOLE (8L0)

90102-10039-00

$10.38

40

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

$31.92

41

NUT, NYLON

95707-10300-00

$6.68

42

WASHER PLATE 626441260000

90202-14037-00

$6.68

43

PIN, COTTER

91490-20025-00

$1.31

44

BRACKET 1

84M-2376E-00-00

$259.32

45

BRACKET 2

84M-2377E-00-00

$339.69

46

BOLT, SET (8K2)

90113-06039-00

$6.97

47

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

$9.15

48

BOLT, STUD 3

95617-08655-00

$4.34

49

BOLT, STUD 3

95617-08640-00

$3.98

50

WASHER(6TA)

92907-08600-00

$2.52

51

NUT, NYLON

95717-08300-00

$2.57
