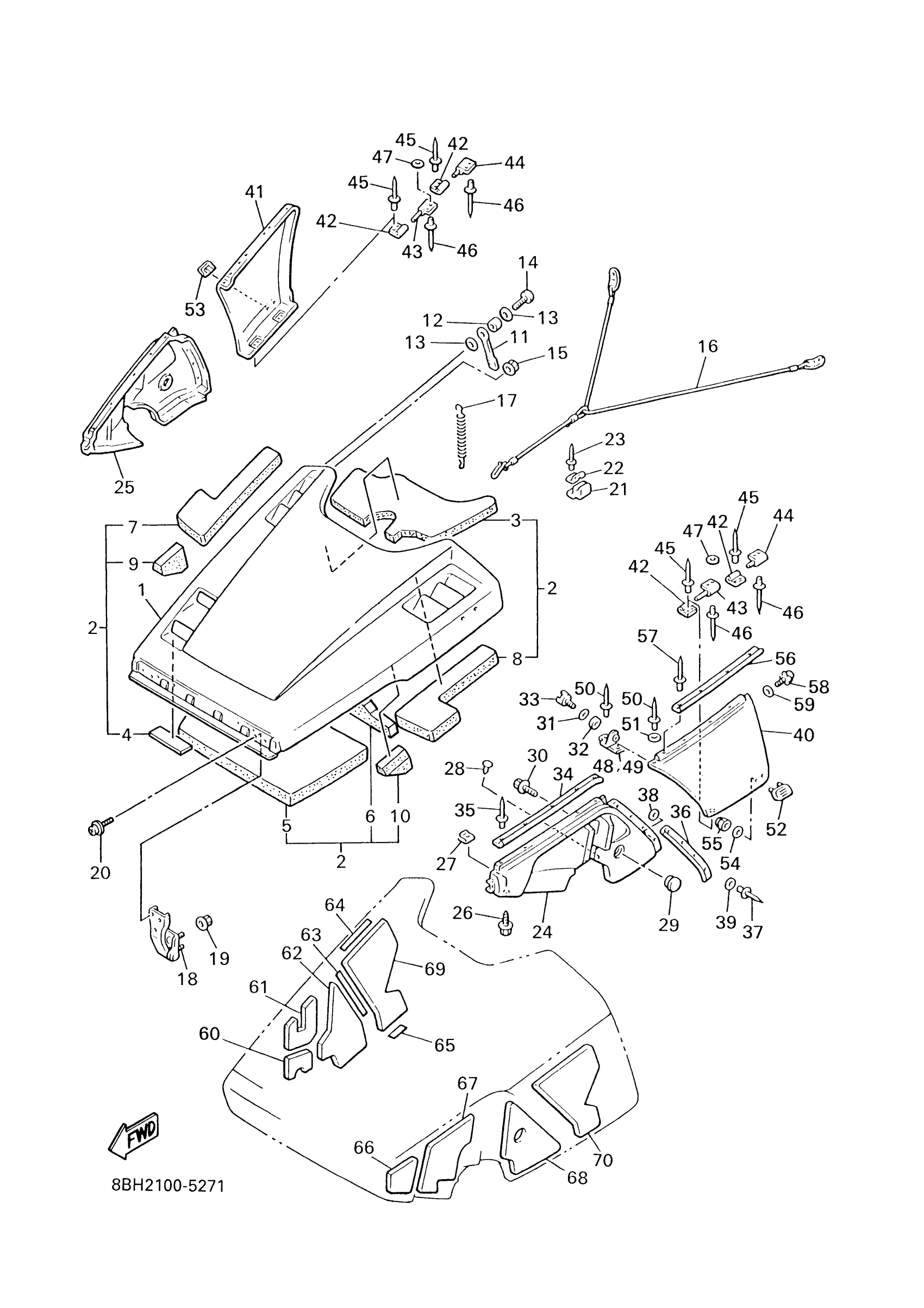

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 SHROUD Diagram

#

Description
Price

1

SHROUD ASY

87H-Y7711-31-00

Unavailable

2

LINING SET

87H-W7726-00-00

Unavailable

3

. LINING, SHROUD 1

8V0-77261-01-00

Unavailable

4

. LINING, SHROUD 2

80L-77262-00-00

Unavailable

5

. LINING, SHROUD 7

8V0-77267-03-00

Unavailable

6

DAMPER, NOISE 16

80L-77276-00-00

Unavailable

7

. DAMPER, NOISE 11

8V0-77271-01-00

Unavailable

8

. DAMPER, NOISE 17

8V0-77277-01-00

Unavailable

9

. DAMPER, NOISE 18

8V0-77278-01-00

Unavailable

10

. DAMPER, NOISE 19

8V0-77279-00-00

Unavailable

11

BODY, LATCH 1

8V0-77171-00-00

$18.37

12

COLLAR (420)

90387-06241-00

$6.18

13

WASHER, PLATE

90201-06557-00

$2.75

14

SCREW, BINDING

98907-06030-00

$5.94

15

NUT, FLANGE(4MV)

95707-06500-00

$0.78

16

STOPPER, SHROUD

88F-77118-00-00

Unavailable

17

CLAMP, ROD

80L-77159-00-00

Unavailable

18

HINGE ASSEMBLY

87F-77140-00-00

Unavailable

19

NUT, FLANGE(4MV)

95707-06500-00

$0.78

20

SCREW, WITH WASHER

90159-05137-00

Unavailable

21

STOPPER

8V0-77188-00-00

Unavailable

22

WASHER, SPECIAL

8V0-77116-01-00

$6.95

23

RIVET, BLIND (J10)

90267-40077-00

Unavailable

24

HOOD 1

87H-21982-01-00

Unavailable

25

HOOD 2

87H-21983-00-00

Unavailable

26

BOLT, WITH WASHER

90119-06226-00

$2.15

27

NUT, SPRING (26H)

90183-06023-00

$7.45

28

RIVET(8AB)

90269-05073-00

$1.58

29

GROMMET

90480-40382-00

Unavailable

30

BOLT, WITH WASHER(55K)

90119-06117-00

$3.74

31

WASHER, PLATE

90201-06557-00

$2.75

32

WASHER, PLATE 1412342700

90202-06008-00

$3.91

33

BOLT, WING (36F)

90122-06020-00

$4.98

34

BUSH, RUBBER 1

87F-77515-00-00

Unavailable

35

RIVET(81E)

90269-05055-00

$7.02

36

TRIM 1

8V0-2196T-00-00

Unavailable

37

RIVET, BLIND

90267-40029-00

$6.68

38

WASHER, PLATE(26H)

90201-044H9-00

$6.68

39

WASHER, PLATE (8M6)

90201-047A2-00

$2.78

40

HOOD 3

80L-2197H-00-00

Unavailable

41

HOOD 4

80L-2198H-00-00

Unavailable

42

BRACKET, 1

88F-2194X-00-00

Unavailable

43

BRACKET 2

88R-2195X-00-00

Unavailable

44

BRACKET 3

88F-2196F-00-00

$11.69

45

RIVET, BLIND (8L0)

90267-48059-00

$2.46

46

RIVET, BLIND (8J5)

90267-48057-00

Unavailable

47

WASHER, PLATE

90201-04027-00

$1.88

48

PROTECTOR 3 (LH)

87F-77553-01-00

Unavailable

49

PROTECTOR 4

87F-77554-01-00

$6.02

50

RIVET, BLIND (8R4)

90267-48088-00

$3.11

51

WASHER, PLAIN LARGE

92907-05200-00

$4.09

52

PROTECTOR 1

85L-77551-00-00

Unavailable

53

PROTECTOR 2

85L-77552-00-00

Unavailable

54

WASHER, PLATE 8067717800

90201-05029-00

$5.12

55

NUT, NYLON

95707-05300-00

$2.74

56

BUSH, RUBBER 2

8V0-77516-01-00

Unavailable

57

RIVET(81E)

90269-05055-00

$7.02

58

HOLDER, LATCH

8V0-77175-00-00

$15.43

59

PLATE

4U5-2176E-00-00

$6.43

60

LINING, SHROUD 5

87F-77265-01-00

Unavailable

61

LINING, SHROUD 6

87F-77266-01-00

Unavailable

62

DAMPER, NOISE 16

87F-77276-01-00

Unavailable

63

TAPE 1

8V0-7717E-01-00

$2.95

64

TAPE 1

8V0-7717F-01-00

Unavailable

65

TAPE 3

82M-7717G-01-00

Unavailable

66

DAMPER, NOISE 12

87F-77272-00-00

Unavailable

67

DAMPER, NOISE 13

87F-77273-00-00

$13.17

68

DAMPER, NOISE 14

87F-77274-00-00

Unavailable

69

LINING,SHROUD 6

8V0-77266-01-00

Unavailable

70

DAMPER, NOISE 15

8V0-77275-00-00

Unavailable
