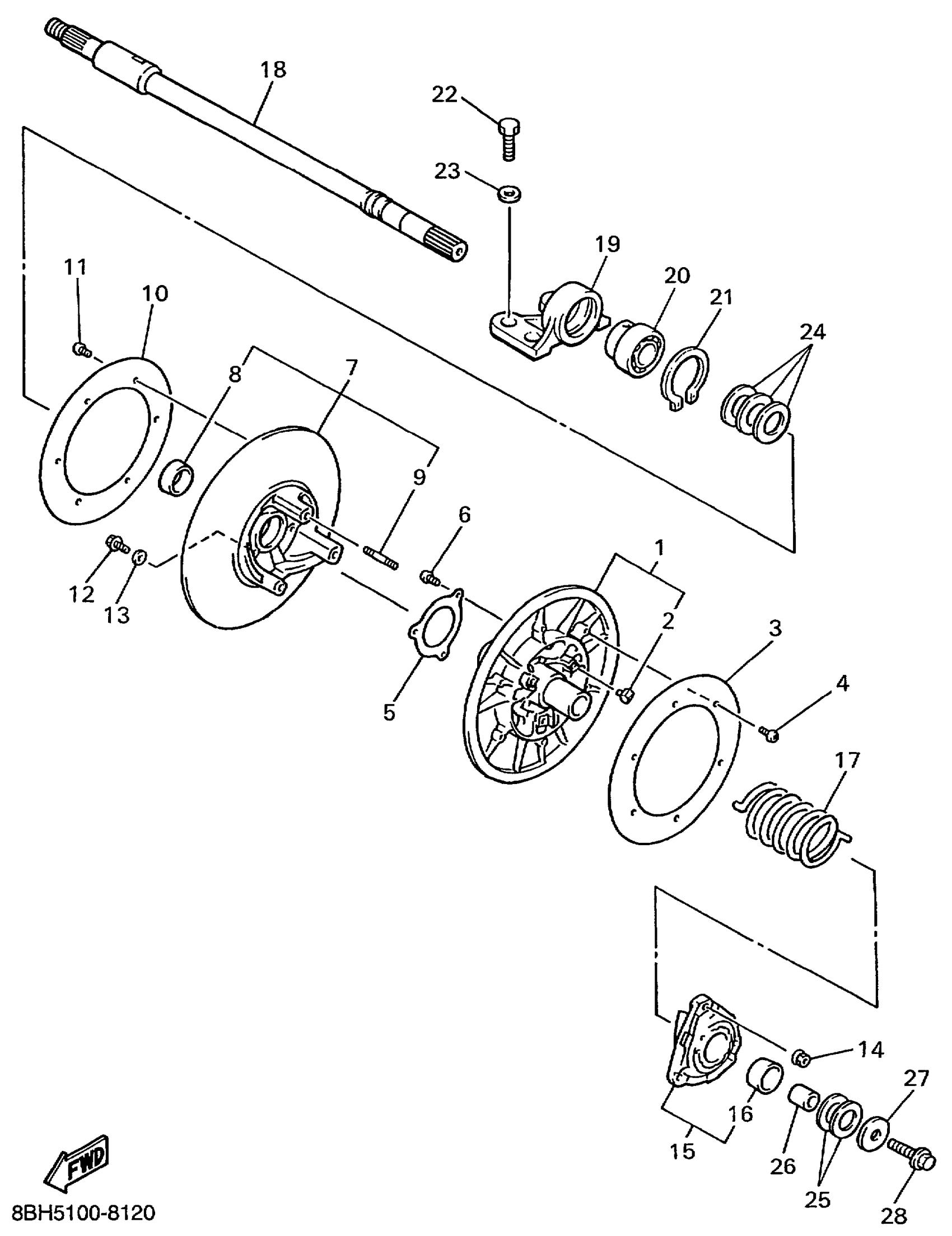

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8CM-17660-10-00

$536.99

2

SHOE, RAMP

8AV-17688-10-00

$27.33

3

PLATE 1

8CM-17665-00-00

$36.28

4

GASKET, EXHAUST

98507-05008-00

$2.69

5

STOPPER, HOLDER

8BV-17656-00-00

$20.20

6

SCREW, BINDING

98907-06016-00

$7.14

7

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

$218.32

8

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

9

BOLT, STUD 3

95617-08630-00

$3.69

10

PLATE 2

8CM-17675-00-00

$36.28

11

GASKET, EXHAUST

98507-05008-00

$2.69

12

BOLT, WASHER BASED(8BN)

90105-06734-00

$2.82

13

WASHER, PLATE (371)

90201-06431-00

$4.48

13

WASHER, PLATE (22K)

90201-061H1-00

$3.74

14

NUT(8BN)

90179-08655-00

$7.46

15

SEAT SPRING SET

8BV-17604-11-00

$157.17

15

SEAT SPRING SET

8BV-17604-31-00

$158.42

15

SEAT SPRING SET

8BV-17604-50-00

$174.71

15

SEAT SPRING SET

8BV-17604-71-00

$228.66

15

SEAT SPRING SET

8BV-17604-91-00

$227.38

16

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

17

SPRING, TORSION(8BF)

90508-500B1-00

$34.34

17

SPRING, TORSION(8AB)

90508-536A9-00

$33.48

17

SPRING, TORSION(8BN)

90508-556A2-00

$40.38

17

SPRING, TORSION(8BT)

90508-556A7-00

$52.77

18

SHAFT, SECONDARY

88F-17681-00-00

Unavailable

19

HOUSING, BEARING

85L-47631-00-00

Unavailable

20

BEARING

888-17678-00-00

Unavailable

21

CIRCLIP(26H)

99009-52500-00

$10.68

22

BOLT, HEXAGON

97017-08020-00

$6.38

23

WASHER(6TA)

92907-08600-00

$2.52

24

WASHER, PLATE (8R6)

90201-252F1-00

$6.92

24

WASHER, PLATE (888)

90201-25526-00

$7.46

24

WASHER, PLATE (888)

90201-25527-00

$7.60

25

WASHER, PLATE (T=0.5)

90201-222F0-00

$5.89

25

WASHER, PLATE (8L8)

90201-225A4-00

$7.85

26

COLLAR

90387-1407E-00

Unavailable

27

WASHER, PLATE

90201-14022-00

$4.86

28

BOLT, WASHER BASED

90105-14754-00

Unavailable
