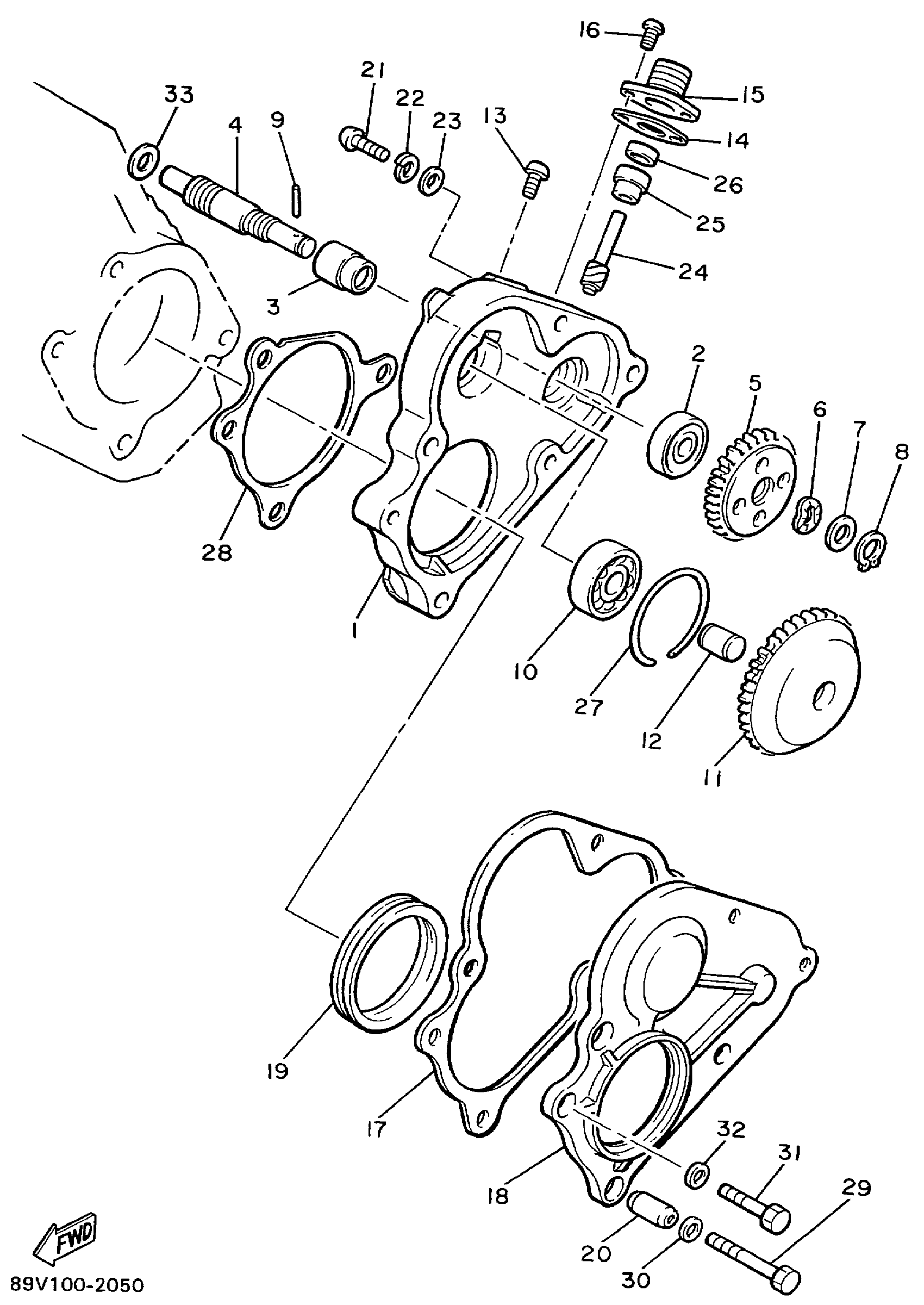

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 PUMP DRIVE GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

89F-15416-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$6.17

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$6.33

4

SHAFT, WORM

879-13175-00-00

Unavailable

5

GEAR, DRIVE 2

821-13188-00-00

$26.03

6

WASHER, WAVE (137)

90206-11016-00

$12.72

7

PLATE, CAM THRUST

137-13148-00-00

$3.28

8

CIRCLIP(10W)

99009-10400-00

$3.91

9

PIN,DOWEL (137)

93603-22028-00

$2.13

10

BEARING (B6000RS)

93306-00003-00

Unavailable

11

GEAR, IDLE

8V0-13179-00-00

Unavailable

12

SHAFT, IDLE GEAR

8V0-13342-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.14

14

GASKET

821-17818-02-00

$5.66

15

CAP, HOUSING

821-17819-00-00

Unavailable

16

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

17

GASKET 2

8V0-15466-03-00

Unavailable

18

COVER, OIL PUMP 2

89F-15426-00-00

Unavailable

19

OIL SEAL (8V0)

93104-52079-00

$12.23

20

PIN, DOWEL(8AH)

91808-22019-00

$6.86

21

SCREW, PAN HEAD

98517-05020-00

$1.35

22

WASHER(3SX)

92907-05100-00

$6.18

23

WASHER(1RW)

92907-05600-00

$0.78

24

GEAR, DRIVEN (10T)

813-17841-00-00

Unavailable

25

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

Unavailable

26

OIL SEAL (6X12X4-821)

93104-06033-00

$6.49

27

CIRCLIP, INNER

93450-28098-00

Unavailable

28

GASKET, OIL PUMP COVER 1

8V0-15456-03-00

$11.25

29

BOLT(21W)

97017-06035-00

$2.91

30

WASHER(6TA)

92907-06600-00

$0.78

31

BOLT, HEXAGON

97017-06025-00

$2.98

32

WASHER(6TA)

92907-06600-00

$0.78

33

WASHER, PLATE (1E7)

90201-08624-00

$7.09
