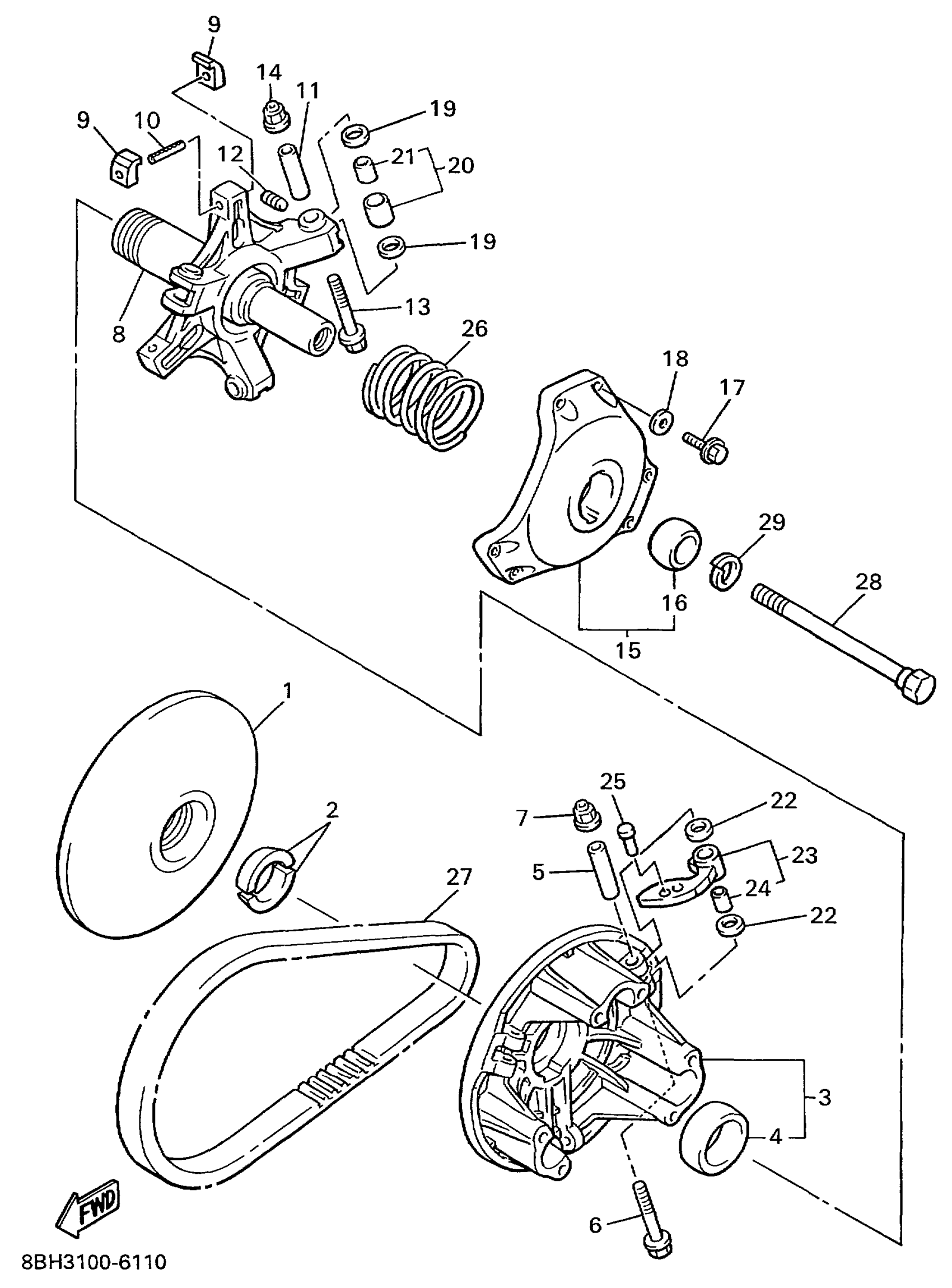

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRI FIXED

8BF-17611-09-00

Unavailable

2

STOPPER

8V0-17639-00-00

$10.52

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$430.68

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$50.08

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

7

NUT, S/L FLANGE

95607-05200-00

$6.86

8

SPIDER COMPLETE

8BW-17640-11-00

$293.52

9

SLIDER

8BW-17653-00-00

$13.86

10

PIN, SPRING (7F7)

91609-50032-00

$3.66

11

COLLAR

90387-0514T-00

$14.86

12

BOLT, SET

90113-05041-00

$6.68

13

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

14

NUT, S/L FLANGE

95607-05200-00

$6.86

15

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

$90.97

16

. BUSH, BIMETAL FORMED

90384-28244-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

$3.00

18

WASHER(6TA)

92907-06600-00

$0.78

19

WASHER, PLATE(88R)

90202-08204-00

$5.72

20

ROLLER, COMP

8BH-17624-00-00

Unavailable

20

ROLLER, COMP

8BH-17624-10-00

$57.62

20

ROLLER, COMP

8BH-17624-20-00

$60.88

21

. BUSH, SOLID

90380-08244-00

Unavailable

22

WASHER, PLATE(88R)

90202-08204-00

$5.72

23

WEIGHT COMP

89F-17605-10-00

$67.75

23

WEIGHT COMP

8BF-17605-10-00

Unavailable

23

WEIGHT COMP

8BF-17605-10-00

Unavailable

24

. BUSH, SOLID

90380-08244-00

Unavailable

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

$7.55

25

RIVET, COUNTER SUNK (8G8)

90261-06017-00

$3.52

25

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

$6.82

25

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

$2.72

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

$6.78

25

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

$5.62

26

SPRING, COMPRESSION(8AT)

90501-481J1-00

$38.01

26

SPRING, COMPRESSION(89R)

90501-487G8-00

$29.71

26

SPRING, COMPRESSION(89F)

90501-507G2-00

$38.83

26

SPRING, COMPRESSION(89R)

90501-507G7-00

$29.71

26

SPRING, COMPRESSION(89L)

90501-521J6-00

$37.82

26

SPRING, COMPRESSION(88S)

90501-524G4-00

$28.94

26

SPRING, COMPRESSION

90501-524G5-00

Unavailable

26

PRIMARY SPRING

90501-525J8-00

$37.45

26

SPRING, COMPRESSION(89R)

90501-526G4-00

$29.71

26

SPRING, COMPRESSION(8BH)

90501-526J9-00

$27.91

26

SPRING, COMPRESSION(89F)

90501-527G1-00

$40.71

26

SPRING, COMPRESSION(8AV)

90501-550J8-00

$45.37

26

SPRING, COMPRESSION(88S)

90501-553G0-00

$32.34

26

SPRING, COMPRESSION(88R)

90501-553G6-00

$37.37

26

SPRING, COMPRESSION(8AB)

90501-555J9-00

$51.03

26

SPRING, COMPRESSION(89F)

90501-556G5-00

$41.11

26

SPRING, COMPRESSION(89F)

90501-556G6-00

$33.15

26

SPRING, COMPRESSION(89F)

90501-556G7-00

$33.15

26

SPRING, COMPRESSION(89R)

90501-557G5-00

$29.71

26

SPRING, COMPRESSION(89R)

90501-557G6-00

$31.23

26

SPRING, COMPRESSION(8AX)

90501-581J7-00

$31.54

26

SPRING, COMPRESSION(8AY)

90501-582J1-00

$58.54

26

SPRING, COMPRESSION(8CG)

90501-585J3-00

$28.94

26

SPRING, COMPRESSION(8BU)

90501-586J0-00

$46.40

26

SPRING, COMPRESSION(8AY)

90501-602J0-00

$38.97

26

SPRING, COMPRESSION(88R)

90501-604G0-00

$26.58

26

SPRING, COMPRESSION(88R)

90501-605G7-00

$29.25

26

SPRING, COMPRESSION(8CG)

90501-605J5-00

$35.58

26

SPRING, COMPRESSION(89F)

90501-606G9-00

$33.15

26

SPRING, COMPRESSION(89F)

90501-607G0-00

$33.29

26

SPRING, COMPRESSION(89R)

90501-607G3-00

$29.71

26

SPRING, COMPRESSION(89R)

90501-607G4-00

$32.40

27

V-BELT

89L-17641-02-00

Unavailable

28

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

29

WASHER(JN5)

92907-16100-00

$12.08
