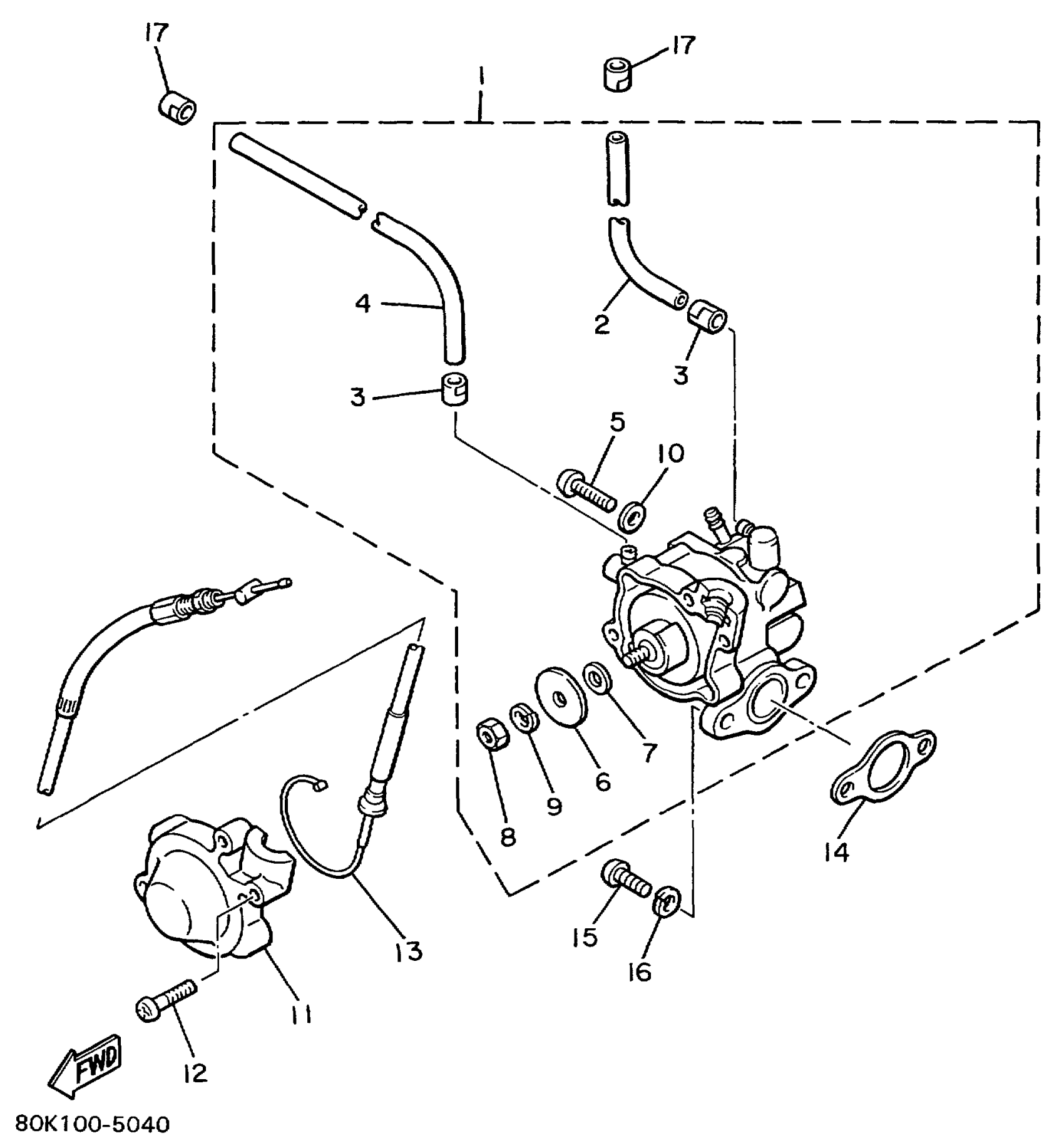

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY (8V0-13101-00)

8V0-13101-01-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

3

CLIP (2A6)

90468-02025-00

$7.02

4

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

5

SCREW, BINDING

98907-04020-00

$0.42

6

PLATE, ADJUSTING

137-13138-01-00

$12.17

7

SHIM,PLUNGER

137-13137-00-03

$5.35

7

SHIM,PLUNGER

137-13137-00-05

$5.32

7

SHIM,PLUNGER

137-13137-00-10

$6.43

8

NUT, HEXAGON (663)

95380-05600-00

$6.17

9

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

10

GASKET 137131870000

90430-04004-00

$6.86

11

COVER, ADJUST PULLEY

8A5-13146-01-00

$15.95

12

SCREW, PAN HEAD

98507-04018-00

$1.23

13

PUMP CABLE ASY

8V0-26320-02-00

Unavailable

14

GASKET, PUMP CASE

126-13116-01-00

$6.92

15

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

16

WASHER(3SX)

92907-05100-00

$6.18

17

CLIP (2A6)

90468-02025-00

$7.02
