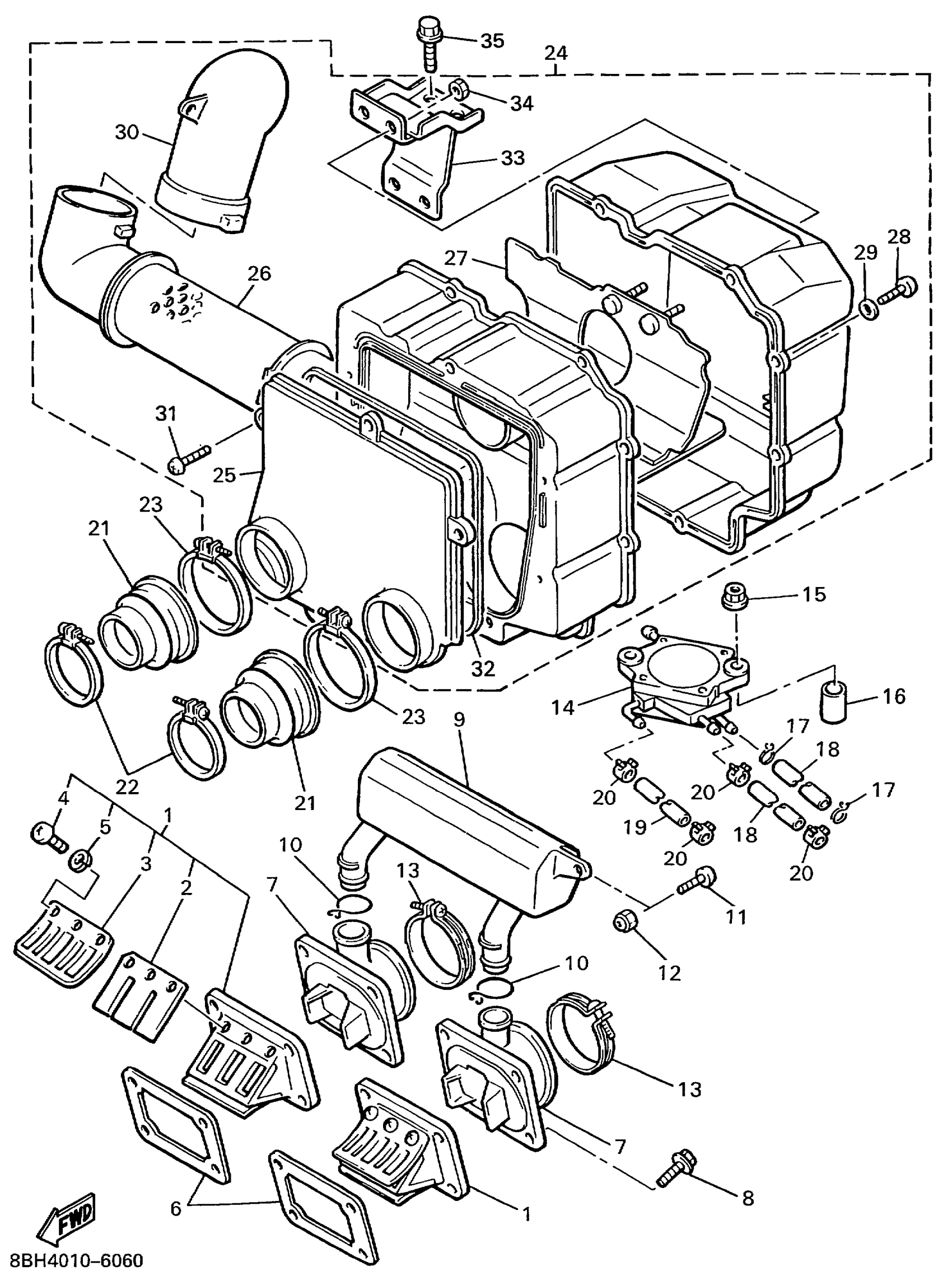

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

3R5-13610-00-00

Unavailable

2

REED, VALVE

3R5-13613-00-00

$40.80

3

. STOPPER, REED VALVE

2X5-13616-00-00

Unavailable

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

GASKET, VALVE SEAT

80L-13621-01-00

$9.80

7

MANIFOLD, INTAKE

8V0-13555-00-00

$117.18

8

BOLT, FLANGE

95817-06025-00

$1.46

9

CHAMBER, AIR

8V0-13581-00-00

Unavailable

10

CLIP(8V0)

90467-24096-00

$6.38

11

SCREW, BINDING (8J0)

90154-05005-00

$3.91

12

NUT, NYLON

95707-05300-00

$2.74

13

BAND

86M-13575-00-00

$16.45

14

FUEL PUMP ASSEMBLY

8BF-24410-00-00

Unavailable

15

NUT, FLANGE(4MV)

95707-06500-00

$0.78

16

COLLAR (8U7)

90387-105G5-00

$7.35

17

CLIP (7K7)

90467-11044-00

$5.10

18

HOSE (L270)

90445-094K2-00

$1.83

19

HOSE (L400)

90445-116K9-00

$19.08

20

CLIP (8A1)

90467-09026-00

$2.72

21

JOINT, AIR CLEANER 1

8V0-14453-00-00

$26.50

22

CLAMP, HOSE (29L)

90460-68230-00

$12.54

23

HOSE CLAMP ASSY

90450-81001-00

$11.26

24

SILENCER ASSEMBLY, INTAKE

8V0-14440-01-00

Unavailable

25

CAP,CACE1

8V0-14412-01-00

$13.57

26

. PIPE

8V0-14465-00-00

Unavailable

27

. PLATE

8V0-14484-00-00

Unavailable

28

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

29

WASHER(1RW)

92907-05600-00

$0.78

30

. JOINT

8V0-14454-00-00

Unavailable

31

SCREW, PAN HEAD

98507-05014-00

$6.18

32

SEAL

51Y-14462-00-00

$11.61

33

. STAY 2

8V0-14494-00-00

Unavailable

34

NUT(6TA)

95317-06600-00

$2.69

35

BOLT, FLANGE

95817-06012-00

$1.49
