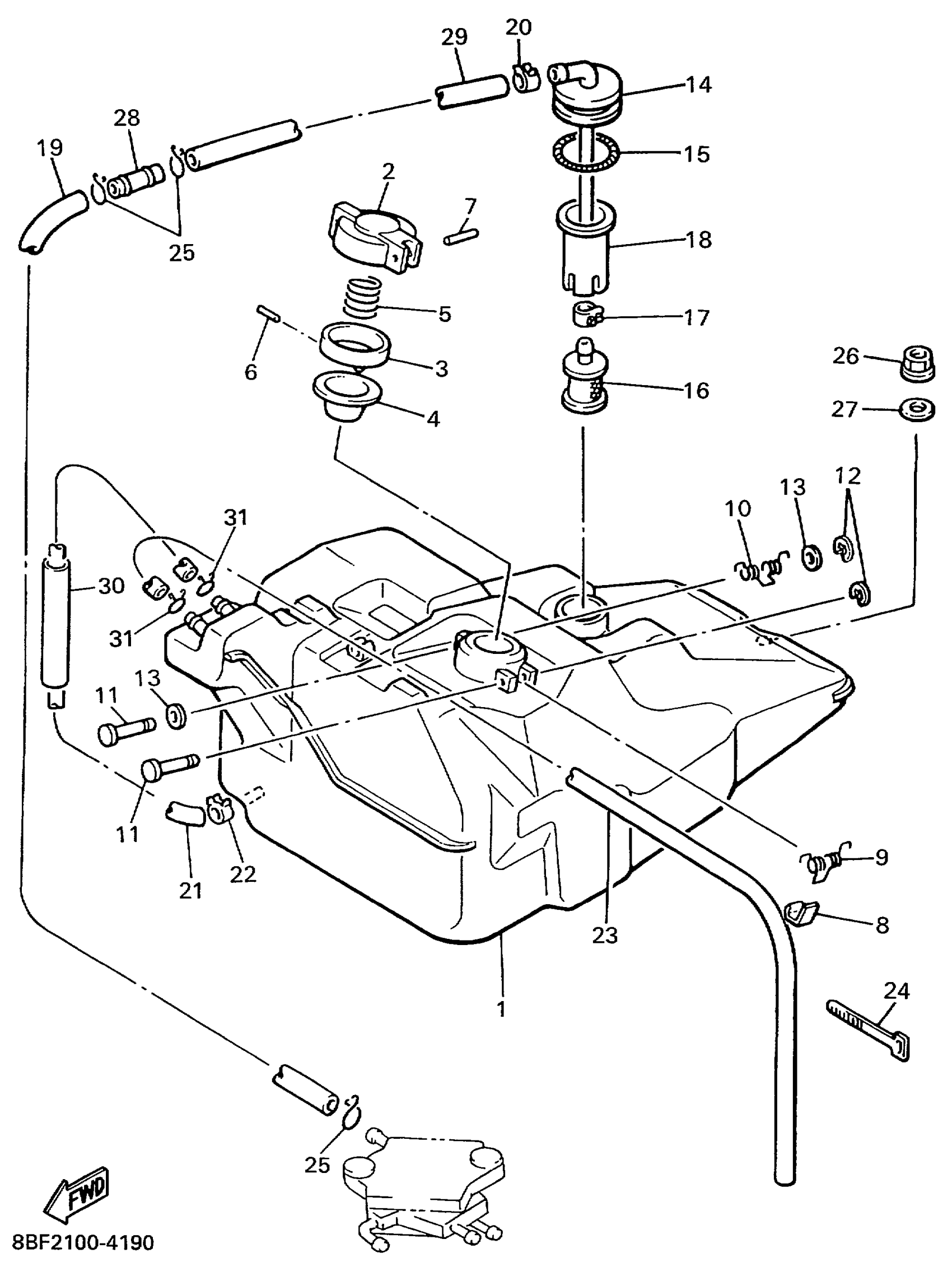

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8V0-24111-03-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$18.71

4

GASKET, CAP 1

89A-24641-00-00

$9.35

5

SPRING, CAP

90501-20130-00

$6.80

6

PIN, SPRING

91690-30016-00

$5.88

7

PIN, SPRING

91609-25032-00

$1.83

8

HOOK

83M-24628-00-00

$19.68

9

SPRING, TORSION(81E)

90508-10715-00

$5.48

10

SPRING, TORSIOW (8F3)

90508-08353-00

$6.87

11

PIN (813)

90249-03017-00

$2.25

12

CIRCLIP (604)

93430-02001-00

$6.69

13

WASHER, PLATE 8077743700

90201-03313-00

$5.20

14

PIPE, SUCTION 1 (8V0-24335-01)

86M-24335-00-00

Unavailable

15

SPRING, TENSION (8R4)

90506-06261-00

$6.94

16

FILTER ASSY

8H5-24560-00-00

$11.47

17

CLIP

90467-11028-00

$5.14

18

PIPE, SUCTION 2

8V0-24336-00-00

Unavailable

19

HOSE (L390)

90445-115K6-00

Unavailable

20

CLIP

90467-11028-00

$5.14

21

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$12.58

22

CLIP (8A1)

90467-09026-00

$2.72

23

HOSE

90446-09306-00

Unavailable

24

BAND

341-26397-01-00

Unavailable

25

CLIP (8J7)

90467-11009-00

$7.55

26

NUT, NYLON

95717-08300-00

$2.57

27

WASHER, PLATE (3L7)

90201-08784-00

$2.54

28

PIPE, JOINT 4

878-24379-00-00

$6.46

29

HOSE (L210)

90445-110F5-00

$14.08

30

PROTECTOR, PIPE

88T-24326-00-00

$12.54

31

CLIP

90467-090A2-00

$2.51
