Description

Price

1

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$34.99

6

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

7

C.D.I. UNIT ASSY

8BK-85540-01-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

10

NUT, NYLON

95707-06300-00

$3.50

11

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

12

WIRE HARNESS ASSEMBLY

8BG-82590-10-00

Unavailable

13

WIRE HARNESS ASSEMBLY 2

8BG-82580-00-00

Unavailable

14

BRACKET, BATTERY

89X-2199G-01-00

Unavailable

15

COVER 3

89X-2198J-00-00

Unavailable

16

NUT,SELF-LOCKING

95607-06200-00

Unavailable

17

BOLT, FLANGE

95817-06010-00

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

CLAMP (3Y2)

90464-16039-00

Unavailable

20

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

21

CAP, KEY

526-82579-00-00

Unavailable

22

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

23

. BULB (12V5W)

8V0-85353-00-00

Unavailable

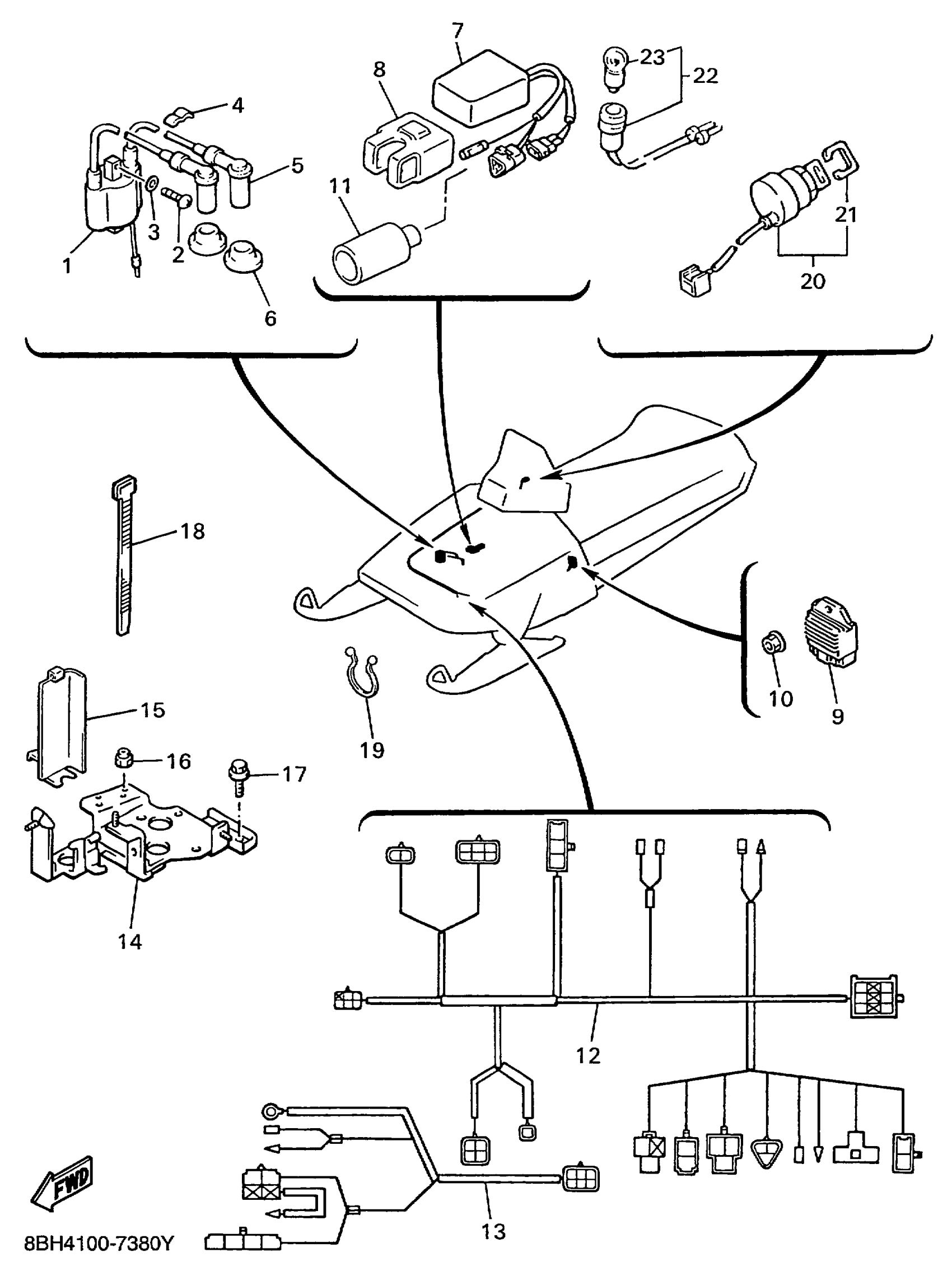

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, PLAIN (646)

CLAMP, CORD

PLUG CAP ASSY

SEAL, PLUG CAP

C.D.I. UNIT ASSY

BAND

RECTIFIER & REGULATOR ASSY

NUT, NYLON

COVER, CONNECTER

WIRE HARNESS ASSEMBLY

WIRE HARNESS ASSEMBLY 2

BRACKET, BATTERY

COVER 3

NUT,SELF-LOCKING

BOLT, FLANGE

BAND

CLAMP (3Y2)

MAIN SWITCH ASSY

CAP, KEY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)
