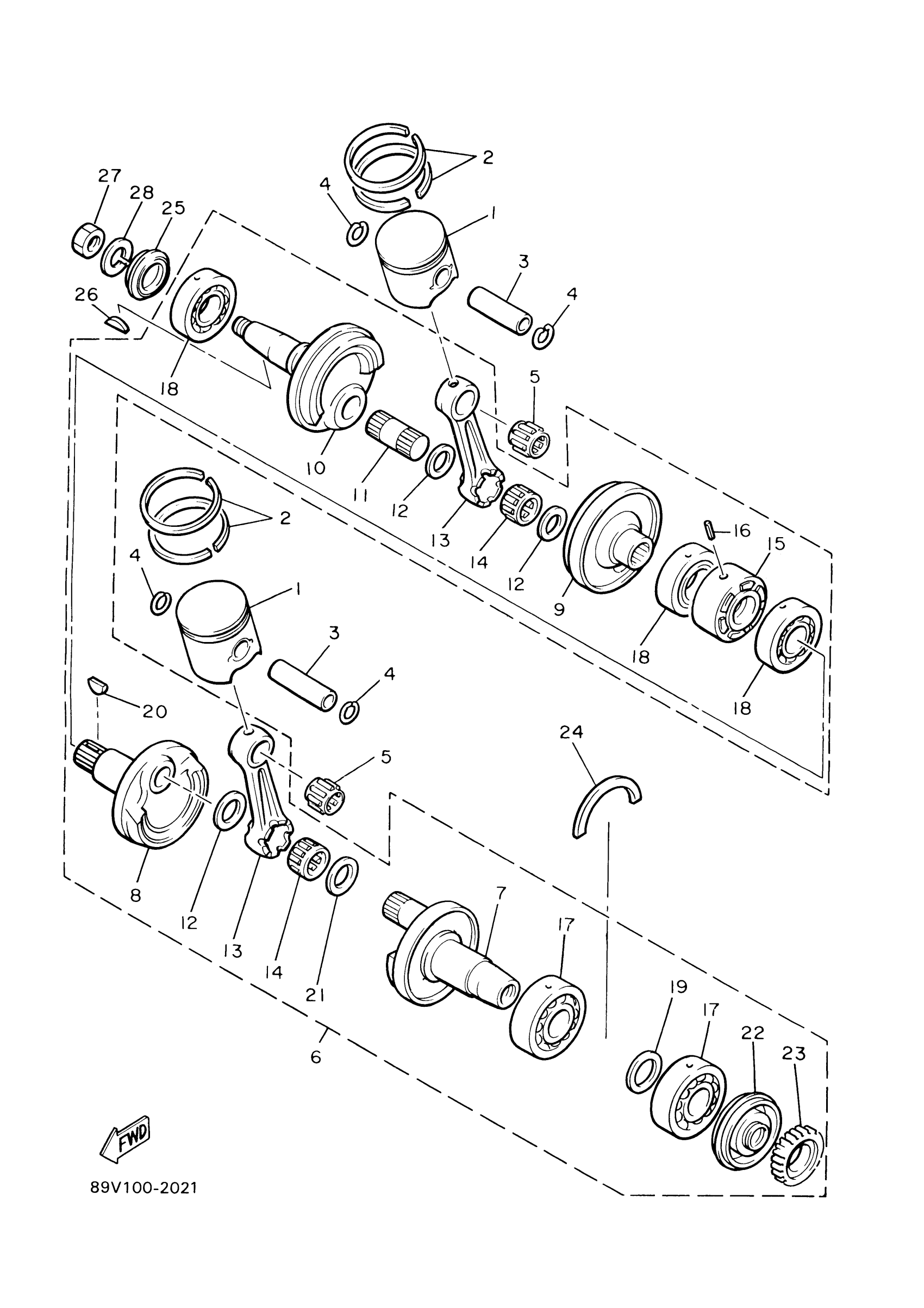

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8V0-11631-00-96

Unavailable

1

PISTON 1 O/S 0.25 (0.25MM O/S)

8V0-11635-00-00

Unavailable

1

PISTON 2 O/S 0.50 (0.50MM O/S)

8V0-11636-00-00

Unavailable

2

PISTON RING SET

8V0-11601-00-00

$91.86

2

PISTON RINGSET 1ST (1ST O/S)

8V0-11601-10-00

Unavailable

2

PISTON RINGSET 2ND (2ND O/S)

8V0-11601-20-00

Unavailable

3

PIN, PISTON

818-11633-00-00

$28.05

4

CIRCLIP (2F1)

93450-19052-00

$3.96

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$32.87

6

CRANKSHAFT ASSEMBLY

89F-11400-00-00

Unavailable

7

CRANK 1

89F-11412-01-00

Unavailable

8

. CRANK 2

8V0-11422-00-00

Unavailable

9

. CRANK 3

8V0-11432-00-00

Unavailable

10

. CRANK 4

8V0-11442-00-00

Unavailable

11

. PIN, CRANK 1

857-11681-00-00

Unavailable

12

WASHER (152-11685-00)

90209-24073-00

$10.08

13

. ROD, CONNECTING

8V0-11651-00-00

Unavailable

14

. BEARING, CYLINDRICAL

93310-424L8-00

Unavailable

15

. SEAL, LABYRINTH 1

8V0-11515-01-00

Unavailable

16

PIN (2H7)

93603-10049-00

$2.52

17

BEARING

93306-38201-00

$116.94

18

BEARING(8V0)

93306-20633-00

$67.35

19

. WASHER, PLATE

90201-327F7-00

Unavailable

20

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

21

WASHER, CRANK PIN

8A7-11685-00-00

$10.68

22

OIL SEAL (8V0)

93103-32151-00

$32.02

23

GEAR, PUMP DRIVE

8K2-13178-00-00

$36.28

24

CIRCLIP

93450-78091-00

Unavailable

25

OIL SEAL(83V)

93103-32155-00

$27.92

26

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

27

NUT

90170-16425-00

$6.60

28

WASHER(JN5)

92907-16100-00

$12.08
