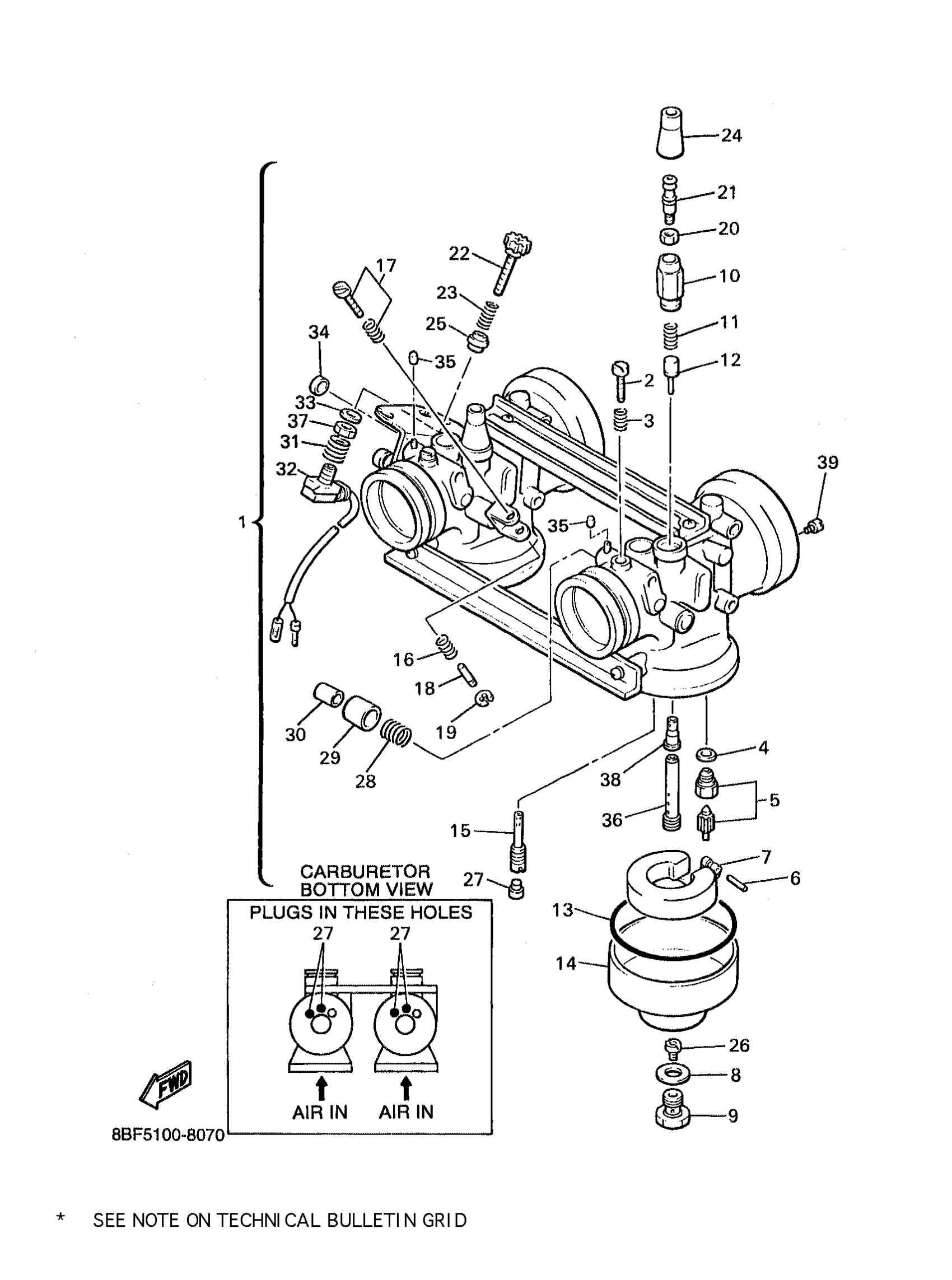

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR

80L-14100-04-00

Unavailable

2

SCREW, PILOT ADJUSTING

620-14211-00-00

$17.41

3

SPRING, AIR ADJUSTING

82A-14134-00-00

$8.22

4

WASHER, VALVE SEAT

214-14195-00-00

$6.11

5

VALVE SEAT ASSY

168-14190-15-00

$37.21

6

PIN,FLOAT

8M6-14186-00-00

$9.46

7

FLOAT ASSY

8M6-14185-00-00

$85.35

8

GASKET

286-14198-00-00

$7.45

9

HOLDER

8M6-14261-00-00

$39.83

10

CAP, PLUNGER

8G8-14174-00-00

$23.77

11

SPRING, PLUNGER

127-14135-00-00

$6.40

12

PLUNGER, STARTER

8G8-14171-00-00

$26.92

13

GASKET, FLOAT CHAMBER

8M6-14126-00-00

$16.37

14

BODY, FLOAT CHAMBER

8M6-14181-00-00

$48.26

15

JET, PILOT (# 95)

193-14142-95-00

$12.27

15

. JET, PILOT #115 (#115) (193-1414F-15)

193-1414F-15-A1

Unavailable

16

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

17

. STOP SCREW SET

12R-1490K-00-00

Unavailable

18

. ROD, PUSH

584-14992-00-00

Unavailable

19

. CLIP

256-14937-00-00

Unavailable

20

NUT, WIRE ADJUSTING

802-14161-00-00

$6.65

21

CABLE ADJUST SCREW SET

12G-14106-00-00

$17.66

22

SCREW,THROTTLE

80L-14122-00-00

$35.71

23

SPRING

8X0-14500-00-00

$17.91

24

CAP

8A7-14169-00-00

$15.80

25

RING

8X0-14184-00-00

$20.43

26

JET,MAIN(#120)

3G2-14231-24-00

$9.74

26

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

26

JET, MAIN (#130)

3G2-14231-26-A0

$10.06

26

JET, MAIN (#135)

3G2-14231-27-00

$10.60

26

JET, MAIN (#140)

3G2-14231-28-00

$11.09

26

JET,MAIN #147.5

3G2-1423A-80-A0

$10.52

26

JET,MAIN #152.5

3G2-1423A-81-00

$18.31

26

JET MAIN (#143.8)

3G2-1423E-57-00

$12.58

27

CAP

8V0-14118-00-00

$12.45

28

. SPRING, THROTTLE 2

80L-14932-00-00

Unavailable

29

COLLAR

80L-14534-00-00

$6.31

30

COLLAR

80L-14535-00-00

$10.28

31

SPRING, THROTTLE STOP

8X0-14133-00-00

$15.40

32

SWITCH, CARBURETOR

87S-8259A-01-00

$73.57

33

WASHER, PLUG SCREW

22F-14117-00-00

$6.38

34

COLLAR

80L-14264-00-00

$6.31

35

CAP

895-14169-00-00

$4.02

36

. NOZZLE, MAIN

8Y2-14941-1A-00

Unavailable

36

. NOZZLE, MAIN

8Y2-14941-2A-00

Unavailable

36

NOZZLE, MAIN

8Y2-14941-3A-00

$33.83

37

NUT

8X0-14358-00-00

$6.80

38

. NOZZLE

80L-14489-00-00

Unavailable

39

JET, AIR (#1.0)

239-14172-10-00

$9.08

39

PILOT JET, AIR (#1.20)

239-14172-12-00

$4.65

39

. PILOT JET, AIR (15)

239-14172-15-00

Unavailable

39

. PILOT JET, AIR (18)

239-14172-18-00

Unavailable

39

JET, AIR (#2.0)

239-14172-20-00

$7.51
