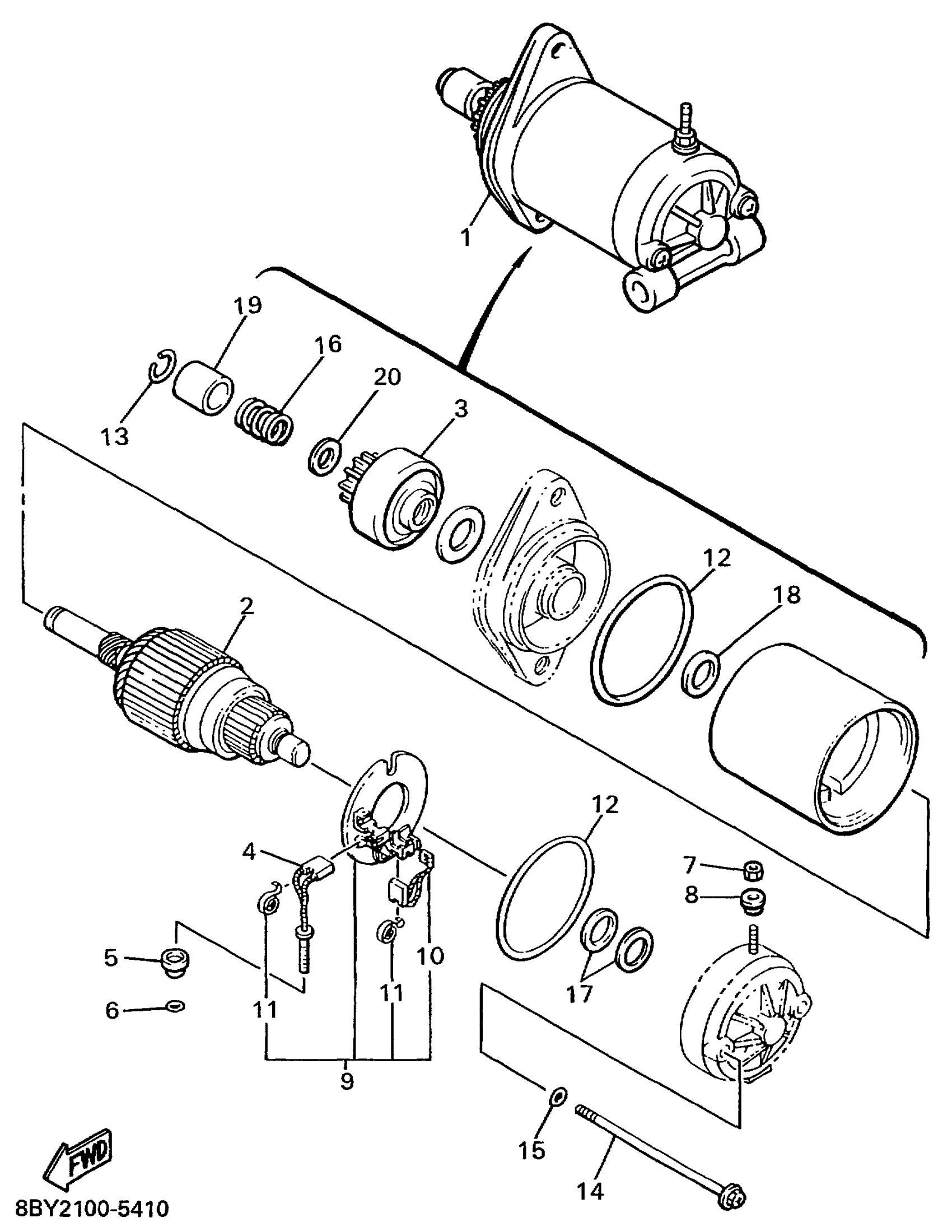

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 ALTERNATE ELECTRICAL 2 Diagram

#

Description
Price

1

STARTING MOTOR ASSY

8BB-81800-02-00

$788.91

2

ARMATURE ASSY

8Y3-81850-50-00

$283.62

3

CLUTCH, OVER RUN

84N-81832-51-00

$215.02

4

BRUSH 1

73A-81811-01-00

$35.31

5

. GROMMET

73A-81829-50-00

$9.62

6

. O-RING

73A-81847-00-00

$8.49

7

NUT

4H7-81872-00-00

$4.86

8

. GROMMET

73A-81829-00-00

$5.49

9

BRUSH HOLDER ASSY

8L6-81840-51-00

$58.95

10

BRUSH 2

84N-81812-00-00

$12.82

11

SPRING, BRUSH

8L6-81813-50-00

$3.77

12

O-RING

4H7-81844-00-00

$21.05

13

RING

8L6-81834-50-00

$3.37

14

BOLT

84N-81826-00-00

$14.71

15

O-RING

8L6-81847-50-00

$3.05

16

SPRING, LEVER

8BB-81836-00-00

$3.05

17

WASHER 1

4H7-81843-50-00

$3.74

18

WASHER

8L6-81835-50-00

$3.05

19

RING, STOP

8L6-81833-50-00

$22.69

20

WASHER, PLATE

8BB-8185A-00-00

$6.58
