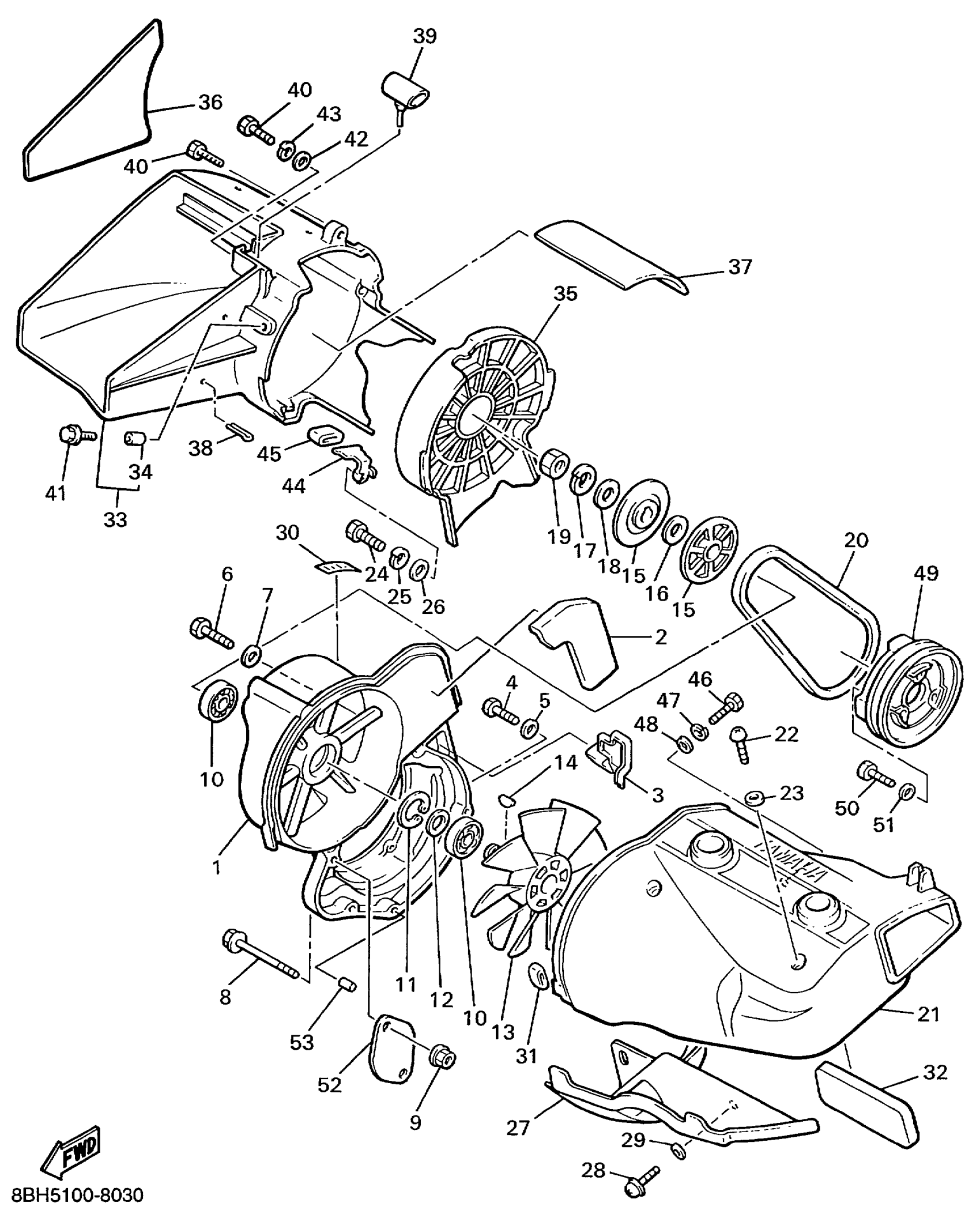

Yamaha PZ480STC (PHAZER MOUNTAIN LITE) 8BH6 1999 AIR SHROUD FAN Diagram

#

Description
Price

1

CASE, FAN

88T-12621-01-00

Unavailable

2

DAMPER, SHROUD 6

8Y0-12679-00-00

$6.52

3

DAMPER, AIR SHROUD 1

80L-12658-01-00

Unavailable

4

BOLT (8K4)

90101-08499-00

$21.95

5

WASHER(6TA)

92907-08600-00

$2.52

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

WASHER(6TA)

92907-08600-00

$2.52

8

BOLT, FLANGE

95817-08090-00

$3.54

9

NUT, FLANGE(JN5)

95707-08500-00

$1.49

10

BEARING

93306-20348-00

$33.70

11

CIR-CLIP (70R)

93420-40064-00

$6.98

12

WASHER, PLATE (8H8)

90201-17713-00

$6.23

13

FAN

8H8-12611-01-00

$77.61

14

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

15

PULLEY 2

8H8-12619-01-00

$31.99

16

WASHER, CLAW (8H8)

90214-17017-00

$5.74

16

WASHER, CLAW (1.0T)

90214-17018-00

Unavailable

17

WASHER(JN5)

92907-16100-00

$12.08

18

WASHER, PLATE (8H8)

90201-17713-00

$6.23

19

NUT

90170-16425-00

$6.60

20

BELT

8V0-12612-00-00

$24.55

21

AIR SHROUD, CYLINDER 1

8V0-12651-02-00

Unavailable

22

SCREW, PAN

98507-06014-00

$6.18

23

WASHER(6TA)

92907-06600-00

$0.78

24

BOLT, HEXAGON

97017-06016-00

$6.18

25

WASHER, SPRING

92907-06100-00

$1.00

26

WASHER(6TA)

92907-06600-00

$0.78

27

AIR SHROUD, CYLINDER 2

8V0-12652-00-00

$38.15

28

SCREW, PAN

98507-06014-00

$6.18

29

WASHER(6TA)

92907-06600-00

$0.78

30

LABEL, CAUTION

8K4-12628-00-00

$10.15

31

DAMPER, AIR SHROUD CYLINDER

8H8-12658-00-00

$7.34

32

DAMPER, ENGINE MOUNT 2

3WF-15326-00-00

Unavailable

33

DUCT

8V0-12661-04-00

Unavailable

34

COLLAR(1RW)

90387-0801M-00

$7.80

35

COVER, FAN CASE

80L-12616-00-00

Unavailable

36

DAMPER, DUCT 2

8V0-12685-01-00

Unavailable

37

DAMPER, DUCT 3

8V0-12686-00-00

Unavailable

38

91401-16025

91401-16025-00

$0.17

39

BUSH, RUBBER

81H-12667-00-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

41

BOLT, FLANGE

95817-06020-00

$2.69

42

WASHER, PLATE

90201-06045-00

$6.18

43

WASHER, SPRING

92907-06100-00

$1.00

44

STAY 1

8V0-12637-00-00

$6.95

45

DAMPER, AIR SHROUD CYLINDER

8H8-12658-00-00

$7.34

46

BOLT, HEXAGON

97017-06016-00

$6.18

47

WASHER, SPRING

92907-06100-00

$1.00

48

WASHER(6TA)

92907-06600-00

$0.78

49

PULLEY, STARTER

8V0-15723-00-00

Unavailable

50

BOLT, HEXAGON

97017-08025-00

$7.46

51

WASHER(6TA)

92907-08600-00

$2.52

52

PLATE

8K4-12633-00-00

Unavailable

53

PIN, DOWEL(3VD)

99530-10114-00

$2.23
