- PZ480STB (PHAZER MOUNTAIN LITE) 8BH5 1998
TRACK SUSPENSION 1

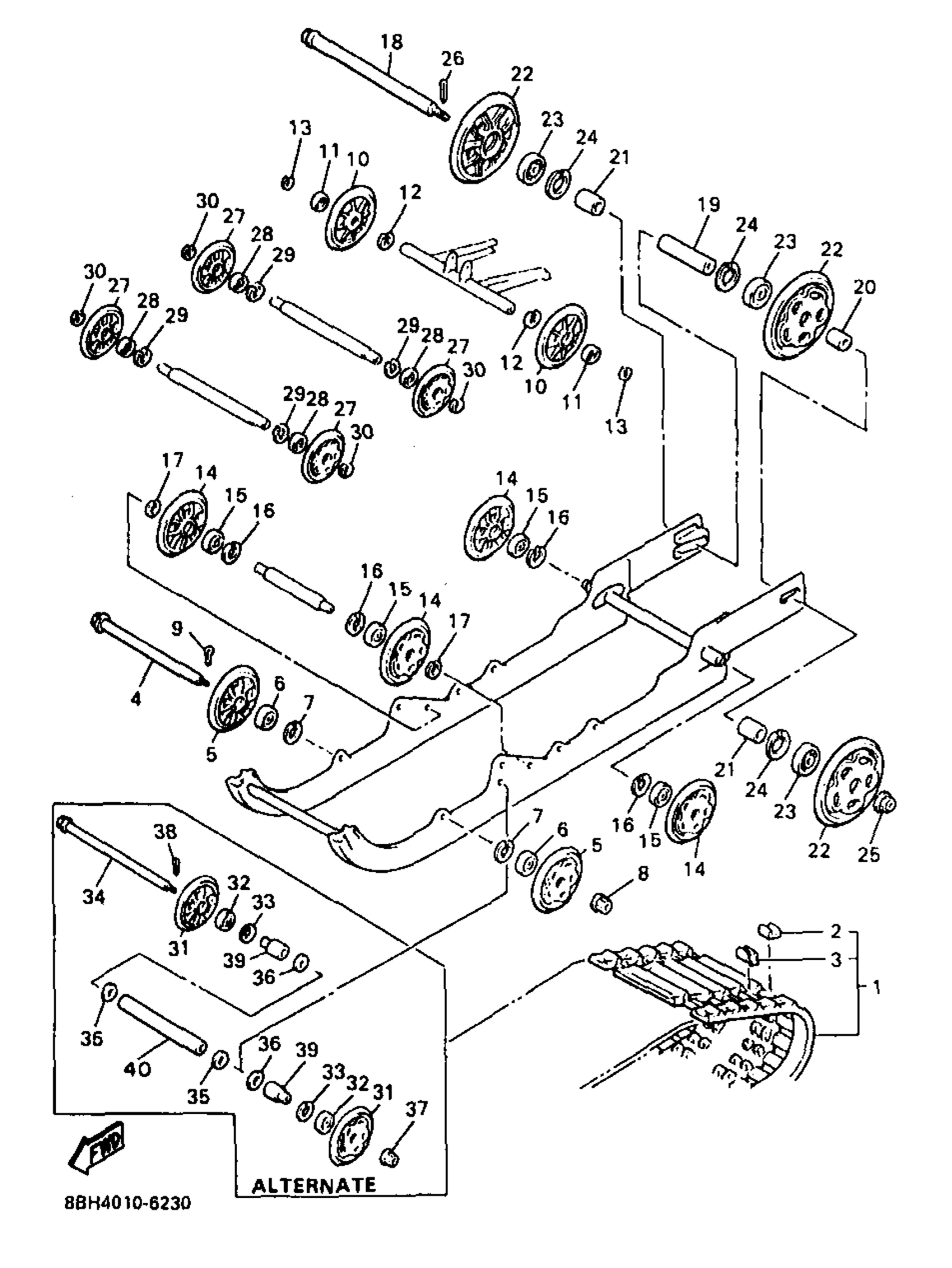

Yamaha PZ480STB (PHAZER MOUNTAIN LITE) 8BH5 1998 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8CC-47110-11-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
89A-47115-01-00
Unavailable
4
SHAFT 5
82M-47487-00-00
Unavailable
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
6
BEARING(8AB)
93306-00444-00
$41.99
7
CIRCLIP(5U8)
99009-42500-00
$8.49
8
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
9
PIN, COTTER
91401-30025-00
$8.49
10
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
CIRCLIP(1AR)
99009-20400-00
$8.49
14
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
15
BEARING(8AB)
93306-00444-00
$41.99
16
CIRCLIP(5U8)
99009-42500-00
$8.49
17
CIRCLIP(1AR)
99009-20400-00
$8.49
18
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
19
COLLAR
90387-202X4-00
Unavailable
20
COLLAR
90387-202X5-00
Unavailable
21
COLLAR(88Y)
90387-204X2-00
Unavailable
22
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
23
BEARING(8AE)
93306-20469-00
Unavailable
24
CIRCLIP(48Y)
99009-47500-00
Unavailable
25
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
26
PIN, COTTER
91401-30025-00
$8.49
27
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
28
BEARING(8AB)
93306-00444-00
$41.99
29
CIRCLIP(5U8)
99009-42500-00
$8.49
30
CIRCLIP(1AR)
99009-20400-00
$8.49
31
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
32
BEARING(8AB)
93306-00444-00
$41.99
33
CIRCLIP(5U8)
99009-42500-00
$8.49
34
SHAFT 5
82M-47487-00-00
Unavailable
35
WASHER, PLATE
90201-164P0-00
Unavailable
36
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
37
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
38
PIN, COTTER
91401-30025-00
$8.49
39
COLLAR
90387-166M8-00
Unavailable
40
COLLAR
90387-160M7-00
Unavailable
