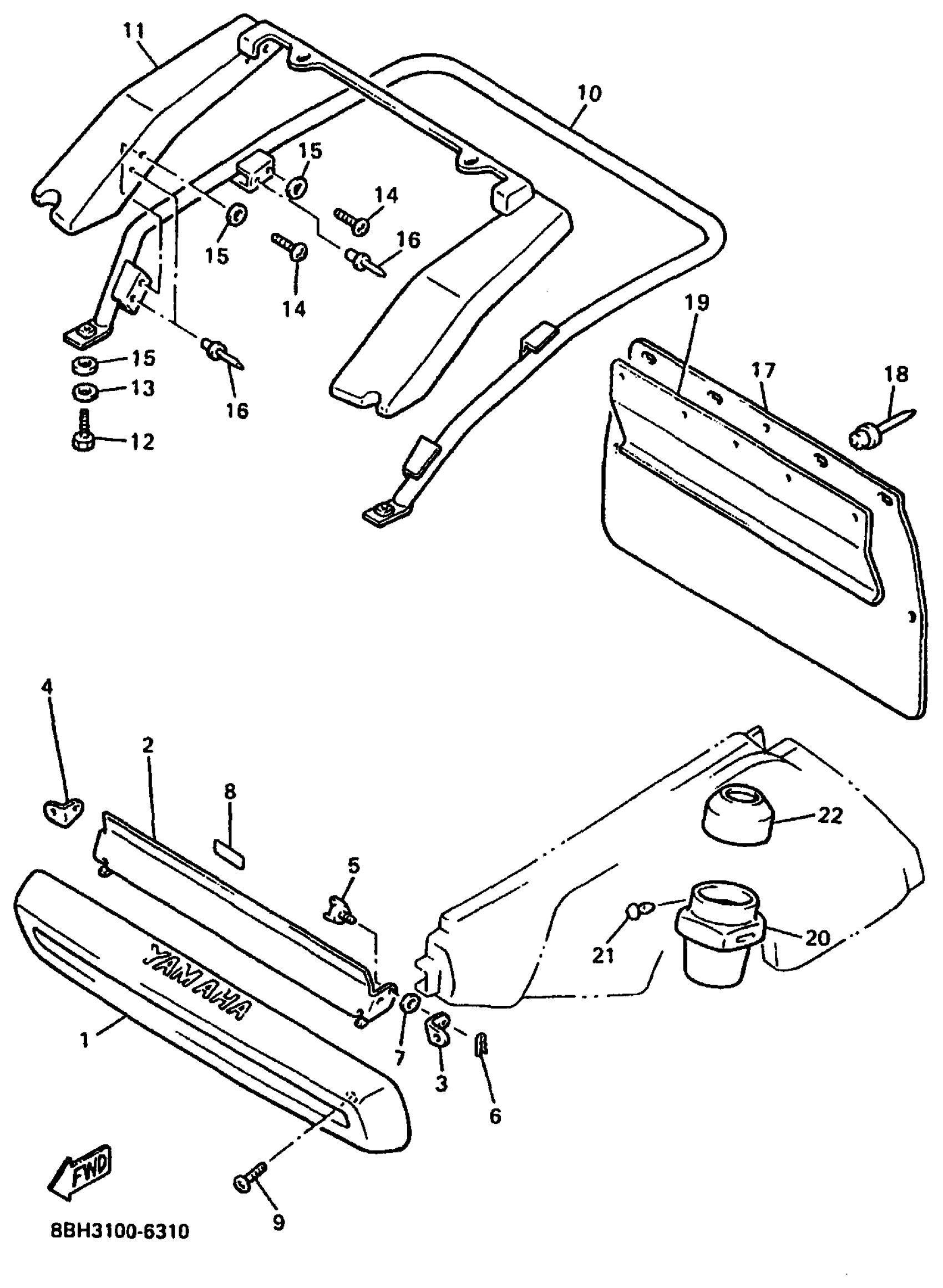

Yamaha PZ480STA (PHAZER MOUNTAIN LITE) 8BH4 1997 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8BF-77511-10-00

Unavailable

2

PLATE 1

80L-77185-00-00

Unavailable

3

STAY 1

87F-77125-00-00

Unavailable

4

STAY 2

87F-77126-00-00

Unavailable

5

BOLT, WING(8W1)

90122-05022-00

$7.49

6

PIN, HAIR 6474123500

90468-10003-00

$1.96

7

. WASHER, PLATE

90202-05088-00

Unavailable

8

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

9

SCREW, BINDING

98907-06016-00

$9.49

10

BUMPER, REAR 1

88X-77541-00-00

Unavailable

11

BUMPER, REAR 2

88X-77542-00-00

Unavailable

12

BOLT, HEXAGON

97017-08016-00

$8.49

13

WASHER(6TA)

92907-08600-00

$3.03

14

BOLT, BUTTON

92017-08020-00

$7.49

15

WASHER(6TC)

92907-08200-00

$8.49

16

RIVET, BLIND

90267-48117-00

Unavailable

17

FLAP

8V9-77595-00-00

Unavailable

18

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

19

PROTECTOR 6

89X-77556-00-00

Unavailable

20

PROTECTOR 1

82M-77551-00-00

Unavailable

21

RIVET (8M6)

90269-04025-00

Unavailable

22

PROTECTOR 4

82M-77554-01-00

Unavailable
