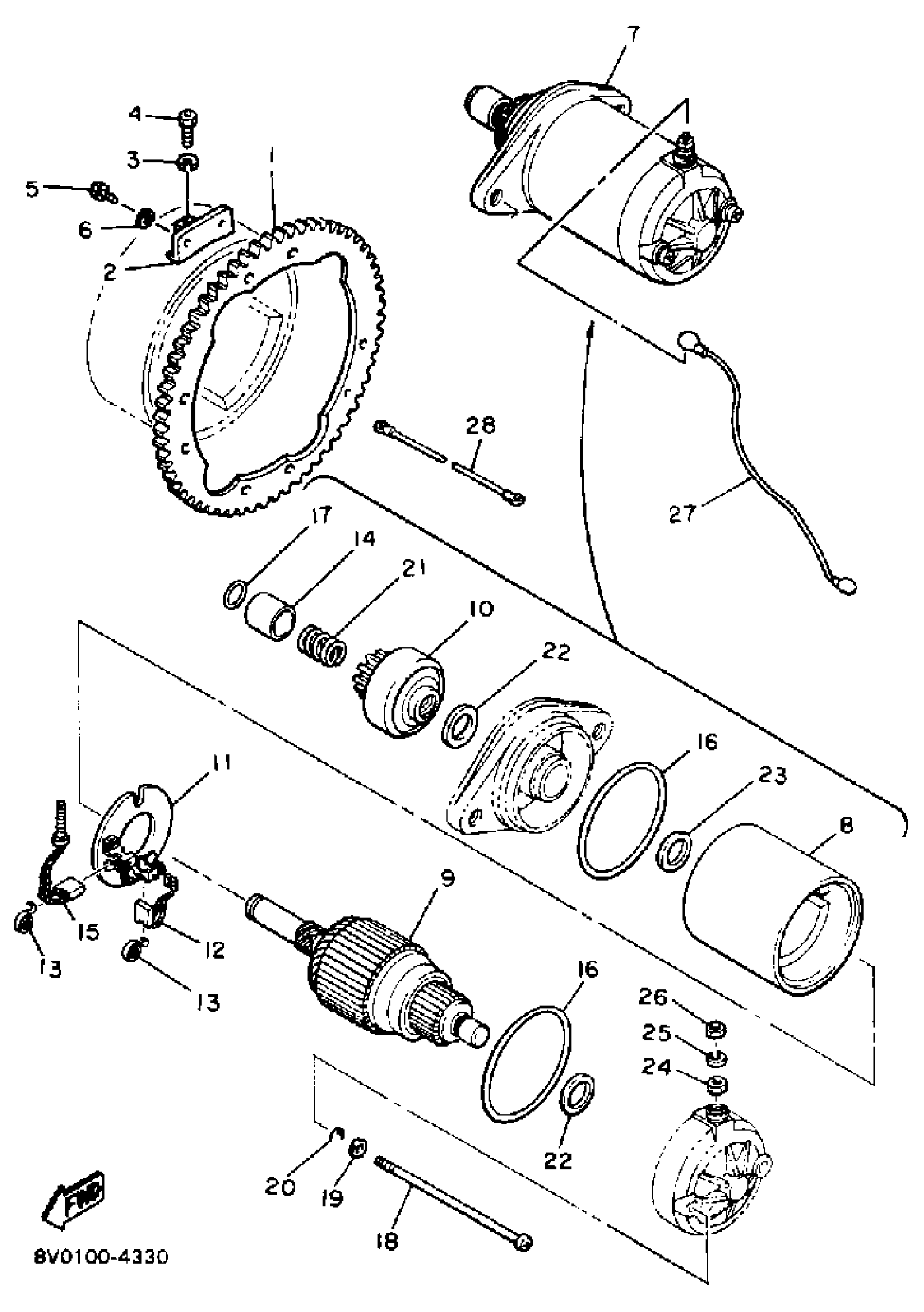

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 STARTING MOTOR Diagram

#

Description
Price

1

GEAR, RING

8X9-81891-00-00

Unavailable

2

STAY, RING GEAR

8X9-81895-00-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

Unavailable

5

BOLT(3JP)

97017-06010-00

$3.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

8

STATOR ASSEMBLY

(8L6-81810-50-00)

Unavailable

9

. ARMATURE ASSEMBLY

8L6-81850-50-00

Unavailable

10

. CLUTCH, OVER RUN

8L6-81832-50-00

Unavailable

11

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

12

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

$29.99

13

SPRING, BRUSH

8L6-81813-50-00

Unavailable

14

RING, STOP

8L6-81833-50-00

Unavailable

15

. BRUSH 1

8L6-81811-50-00

Unavailable

16

O-RING

4H7-81844-00-00

Unavailable

17

RING

8L6-81834-50-00

Unavailable

18

BOLT

4H7-81826-01-00

Unavailable

19

. WASHER 2

8L6-81824-50-00

Unavailable

20

O-RING

8L6-81847-50-00

Unavailable

21

SPRING, LEVER

8L6-81836-50-00

Unavailable

22

WASHER 1

4H7-81843-50-00

Unavailable

23

WASHER

8L6-81835-50-00

Unavailable

24

NUT

4H7-81872-00-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

NUT(650)

95380-06700-00

Unavailable

27

WIRE,LEAD

8CL-82117-00-00

Unavailable

28

WIRE, MINUS LEAD (81E-82116-00)

83M-82116-00-00

Unavailable
