- PZ480SEH (PHAZER SE (ELEC START)) 1984
SHROUD - WINDSHIELD

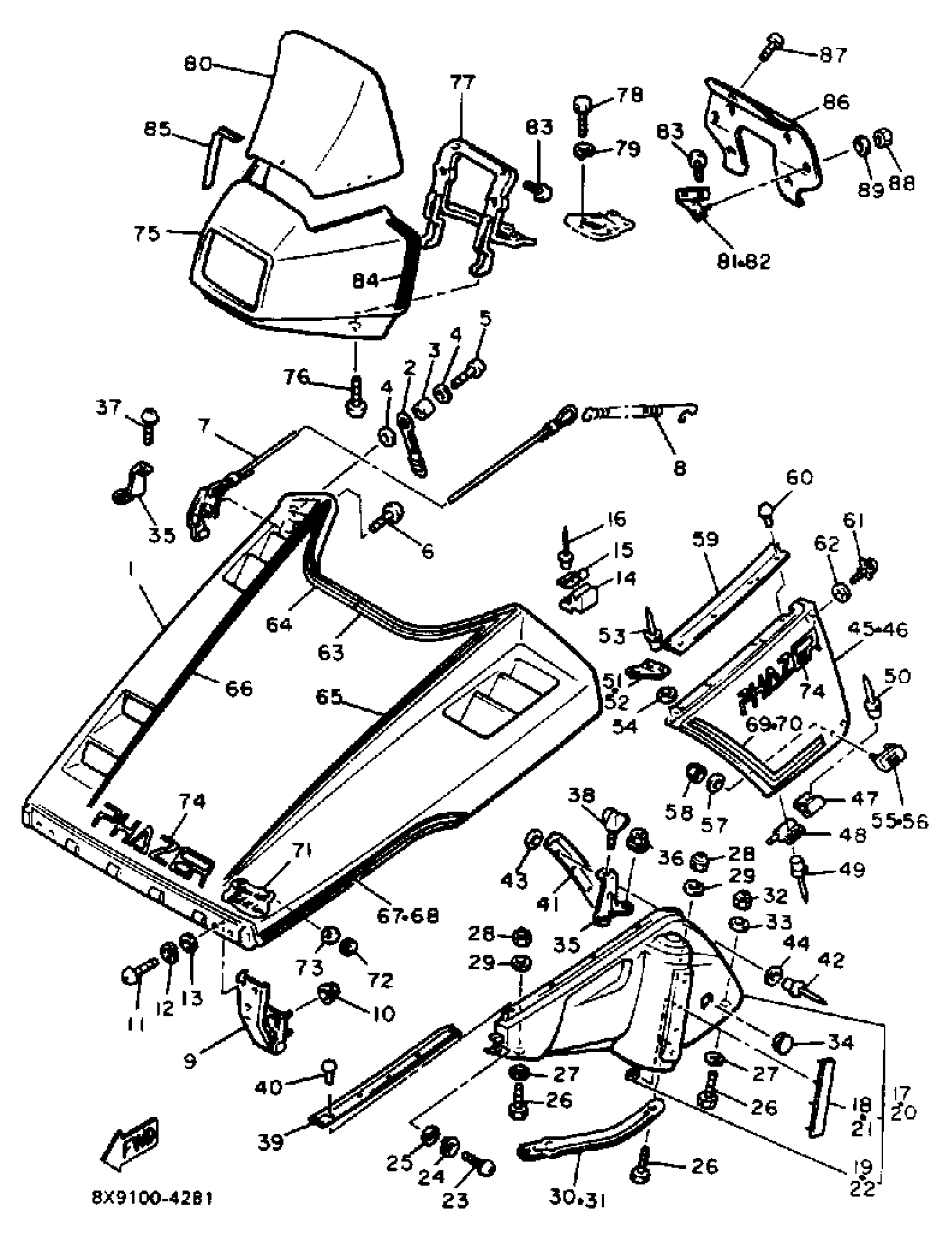

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASSEMBLY (8X9-W7711-00)
8X9-W7714-00-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06025-00
$8.49
6
SCREW, BINDING
98907-06010-00
$1.65
7
STOPPER, SHROUD
8V0-77118-01-00
Unavailable
8
CLAMP, ROD
8V0-77159-00-00
Unavailable
9
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
10
NUT, FLANGE(7NB)
95780-06500-00
$2.60
11
SCREW, PAN HEAD
90157-05M19-00
Unavailable
12
WASHER(3SX)
92907-05100-00
$8.49
13
WASHER, PLAIN LARGE
92907-05200-00
$4.46
14
STOPPER
8V0-77188-00-00
Unavailable
15
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
16
RIVET, BLIND
90267-40029-00
Unavailable
17
HOOD 1 (L.H)
8X9-21982-00-00
Unavailable
18
. EMBLEM 1
8X9-77141-00-00
Unavailable
19
NUT, SPRING (1L9)
90183-04012-00
Unavailable
20
HOOD 2 (R.H)
8X9-21983-00-00
Unavailable
21
. EMBLEM 1
8X9-77141-00-00
Unavailable
22
NUT, SPRING (1L9)
90183-04012-00
Unavailable
23
SCREW, PAN
98517-05012-00
Unavailable
24
WASHER(3SX)
92907-05100-00
$8.49
25
WASHER, PLAIN LARGE
92907-05200-00
$4.46
26
BOLT, HEXAGON
97017-06016-00
Unavailable
27
WASHER, PLATE
90201-06380-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
WASHER, PLATE
90201-06380-00
Unavailable
30
GUARD, SUB FRAMEFRAME FR 1
8V0-21995-01-00
Unavailable
31
GUARD, SUB FRAMEFRAME FR 2
8V0-21996-01-00
Unavailable
32
NUT, NYLON
95707-06300-00
Unavailable
33
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
34
GROMMET
90480-40382-00
Unavailable
35
BRACKET 3
8V0-2196F-00-00
Unavailable
36
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
37
SCREW, BIND (705)
98980-06016-00
Unavailable
38
BOLT, WING
90122-06015-00
Unavailable
39
BUSH, RUBBER 1
8V0-77515-01-00
Unavailable
40
RIVET(81E)
90269-05055-00
Unavailable
41
TRIM 1
8V0-2196T-00-00
Unavailable
42
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
43
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
44
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
45
HOOD 3
8X9-2197H-00-00
Unavailable
46
HOOD 4
8X9-2198H-00-00
Unavailable
47
BRACKET, 1
8V0-2194X-00-00
Unavailable
48
BRACKET 2
88R-2195X-00-00
Unavailable
49
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
50
RIVET, BLIND
90267-48060-00
Unavailable
51
PROTECTOR 3
8V0-77553-00-00
Unavailable
52
PROTECTOR 4
8V0-77554-00-00
Unavailable
53
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
54
WASHER, PLATE
90201-04027-00
Unavailable
55
PROTECTOR 1
8V0-77551-00-00
Unavailable
56
PROTECTOR 2
8V0-77552-00-00
Unavailable
57
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
58
NUT, NYLON
95707-05300-00
Unavailable
59
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
60
RIVET(81E)
90269-05055-00
Unavailable
61
HOLDER, LATCH
8V0-77175-00-00
Unavailable
62
PLATE
4U5-2176E-00-00
Unavailable
63
STRIPE 1
8X9-77281-00-00
Unavailable
64
STRIPE 2
8X9-77282-00-00
Unavailable
65
STRIPE 3
8X9-77283-00-00
Unavailable
66
STRIPE 4
8X9-77284-00-00
Unavailable
67
ORNAMENT 1
8X9-77163-00-00
Unavailable
68
ORNAMENT 2
8X9-77164-00-00
Unavailable
69
STRIPE 5
8X9-77285-00-00
Unavailable
70
STRIPE 6
8X9-77286-00-00
Unavailable
71
EMBLEM 2
8X9-77142-00-00
Unavailable
72
NUT SPRING 116283170100
90183-04005-00
Unavailable
73
WASHER PLATE 174283160000
90202-04003-00
Unavailable
74
EMBLEM 6
8X9-77356-00-00
Unavailable
75
FAIRING 1 (8X9-77231-00)
8X9-77231-01-00
Unavailable
76
SCREW, BIND(1JK)
98980-06010-00
Unavailable
77
STAY, FAIRING
8V0-77241-00-00
Unavailable
78
BOLT, HEXAGON
97017-06025-00
Unavailable
79
WASHER, SPRING
92995-06100-00
Unavailable
80
WINDSHIELD
8BH-77210-00-XX
Unavailable
81
WASHER 1
8X9-77218-00-00
Unavailable
82
WASHER 2
8X9-77219-00-00
Unavailable
83
SCREW, PAN HEAD
98502-05006-00
Unavailable
84
STRIPE 9
8X9-77289-00-00
Unavailable
85
STRIPE 10
8X9-77291-00-00
Unavailable
86
COVER, HEADLIGHT
8X9-77251-00-00
Unavailable
87
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
88
NUT, CAP
95307-05800-00
Unavailable
89
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
