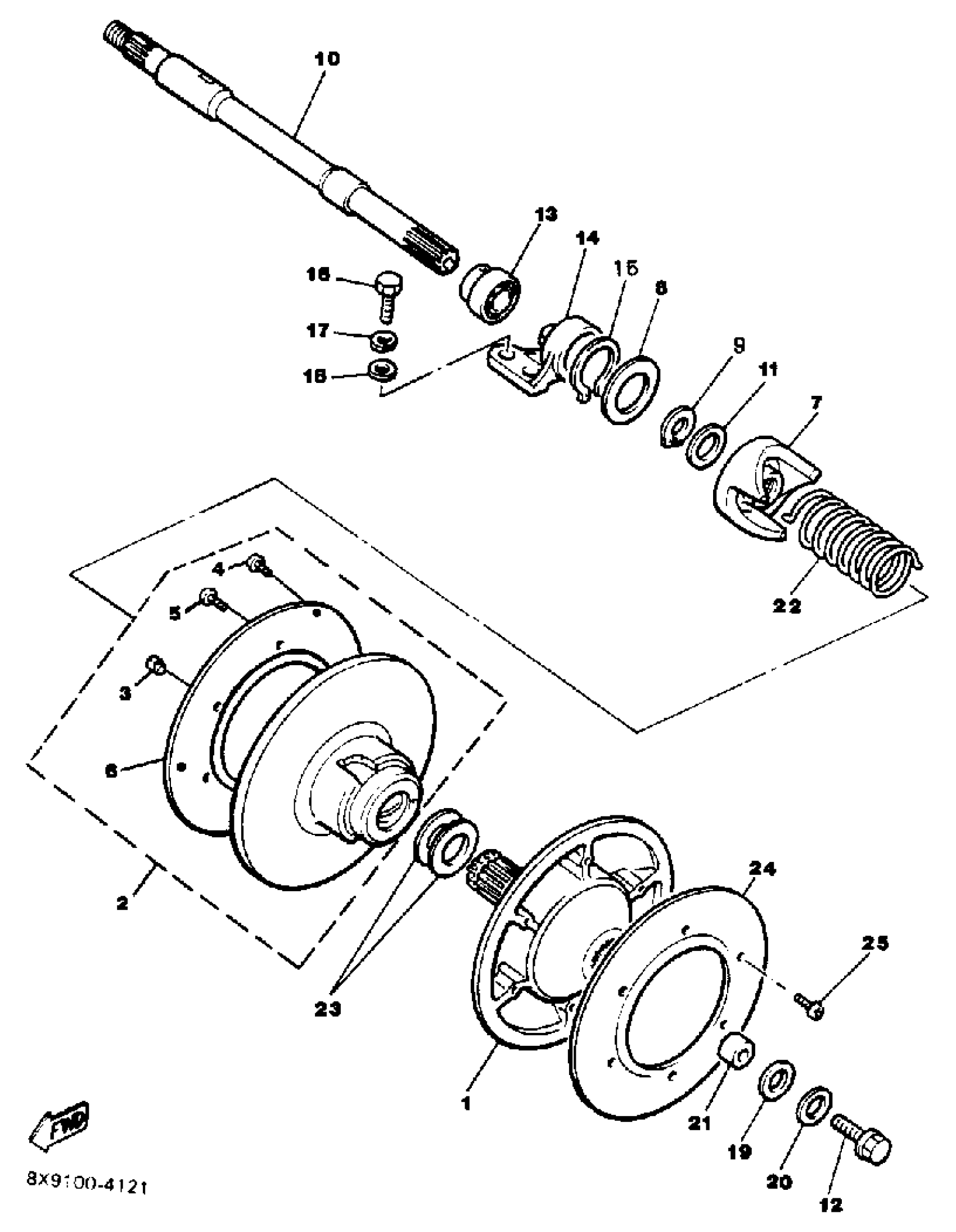

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

89N-17660-00-00

Unavailable

2

SECONDARY SLIDING SHEAVE

81H-17670-00-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

PLATE 2

81H-17675-01-00

Unavailable

7

SEAT, SECONDARY SPRING

8V0-17684-00-00

Unavailable

8

WASHER, PLATE

90201-34684-00

Unavailable

9

CIRCLIP(86F)

93440-34170-00

$8.49

10

SHAFT, SECONDARY

82M-17681-00-00

Unavailable

11

WASHER, PLATE (888)

90201-25526-00

$9.49

12

BOLT, WASHER BASED

90105-14175-00

Unavailable

13

BEARING

888-17678-00-00

Unavailable

14

HOUSING, BEARING

85L-47631-00-00

Unavailable

15

CIRCLIP(26H)

99009-52500-00

$12.49

16

BOLT,HEXAGON

97027-08022-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

20

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

21

COLLAR

90387-147A8-00

Unavailable

22

SPRING, TORSION

90508-50654-00

Unavailable

23

WASHER, PLATE (8U9)

90201-345G2-00

Unavailable

24

PLATE 1

81H-17665-01-00

Unavailable

25

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable
