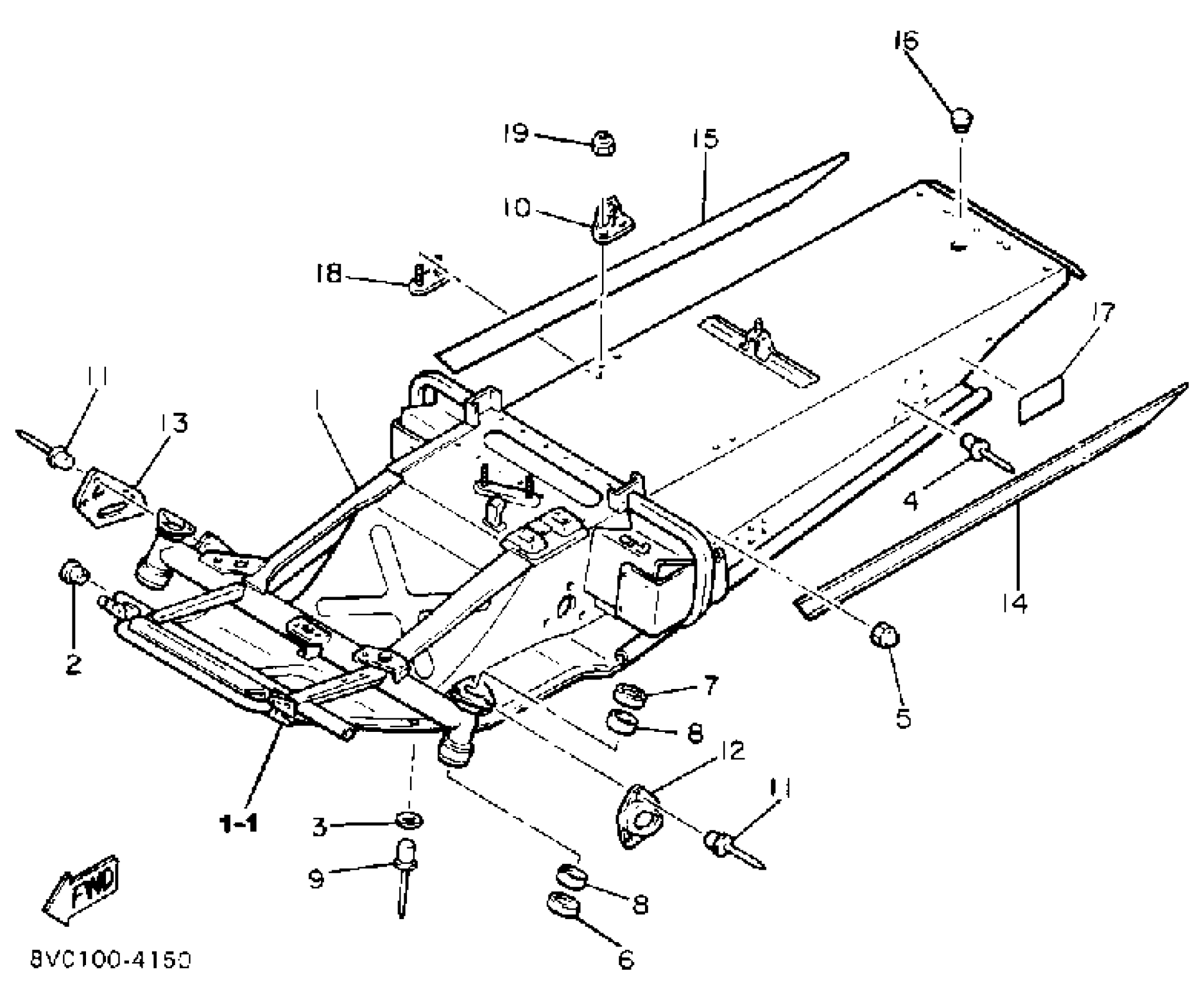

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 FRAME Diagram

#

Description

Price

1

FRAME

8X9-21910-00-00

Unavailable

1

. BELLY PAN (80L-21912-00)

8X9-21912-00-00

Unavailable

2

.. BUSH, SOLID

90381-12047-00

Unavailable

3

WASHER, PLATE

90201-04027-00

$3.02

4

RIVET

90269-04019-00

Unavailable

5

NUT(4MY)

95307-06800-00

$3.82

6

. OIL SEAL

93103-44134-00

Unavailable

7

. OIL SEAL, SD-TYPE

93102-44280-00

Unavailable

8

. BUSH, BIMETAL FORMED

90384-44173-00

Unavailable

10

. BRACKET, SEAT FITTING

8V0-21946-00-00

Unavailable

11

RIVET

90269-04019-00

Unavailable

12

COVER 1

8V0-2198F-01-00

Unavailable

13

COVER 2

8V0-2198G-01-00

Unavailable

14

EMBLEM 1

8X9-77351-00-00

Unavailable

15

EMBLEM 2

8X9-77352-00-00

Unavailable

16

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

Unavailable

17

INDICATOR 2

8K2-77742-00-00

Unavailable

18

. PATCH 6

8V0-21966-00-00

Unavailable

19

NUT, NYLON

95707-06300-00

Unavailable
