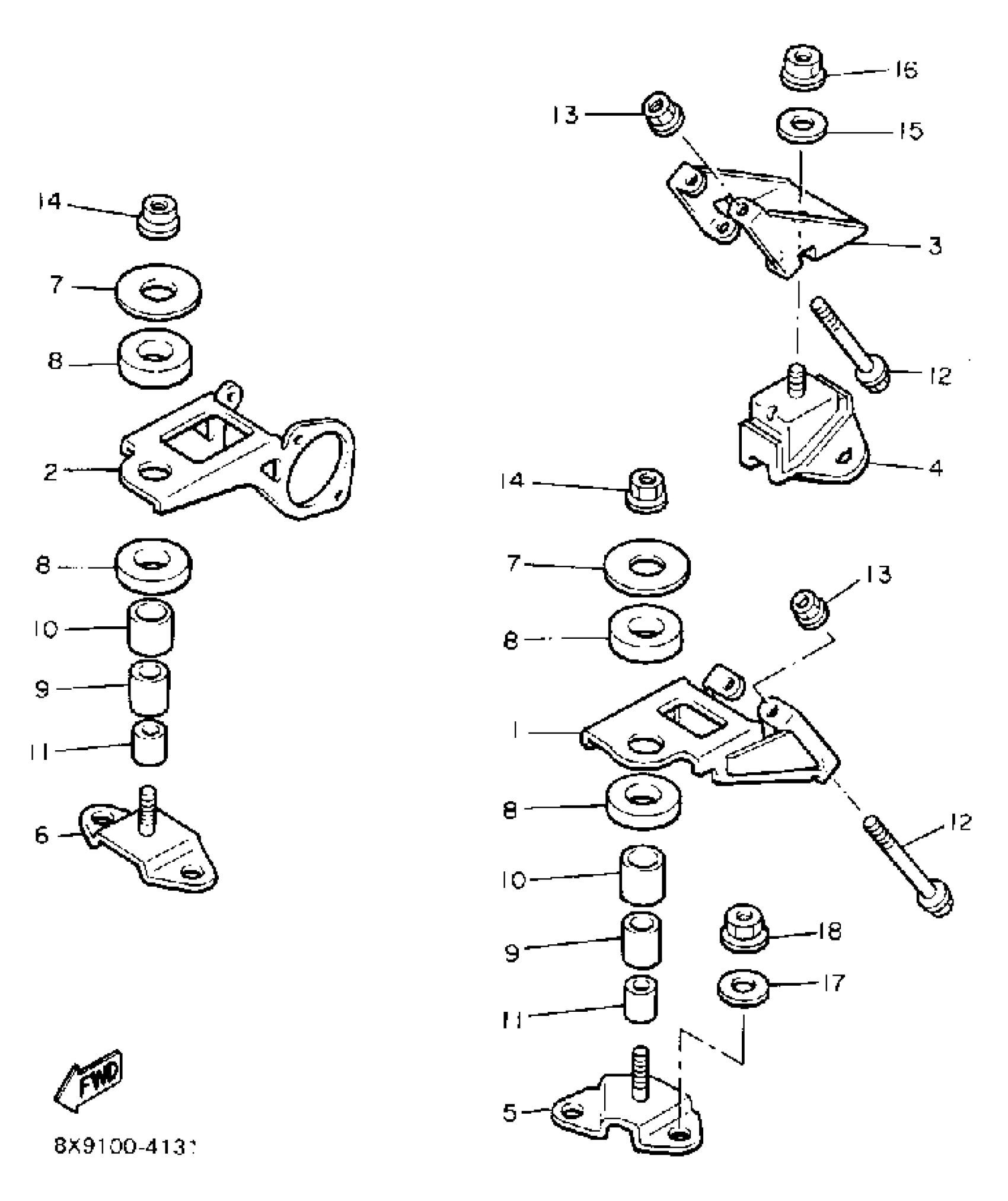

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

8V0-21411-00-00

Unavailable

BRACKET, ENGINE 2

8V0-21419-00-00

Unavailable

BRACKET, ENGINE 3

8V0-21429-01-00

Unavailable

DAMPER 2

8V0-21486-00-00

Unavailable

BRACKET, FRT LWR 1

8V0-21417-00-00

Unavailable

BRACKET, FRT LWR 2

8V0-21418-00-00

Unavailable

WASHER (888)

90201-10151-00

Unavailable

DAMPER, RUBBER 1

8V0-21485-00-00

Unavailable

BUSH, SPEC''L RUBBER

90385-15025-00

Unavailable

COLLAR

90387-21515-00

Unavailable

COLLAR

90387-10514-00

Unavailable

BOLT, FLANGE

95814-08065-00

$4.99

NUT, FLANGE

95704-08500-00

$8.49

NUT, FLANGE(3BM)

95704-10500-00

$4.29

WASHER, PLATE (856)

90201-10321-00

$8.49

NUT, FLANGE(3BM)

95704-10500-00

$4.29

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

NUT, FLANGE

95704-08500-00

$8.49
