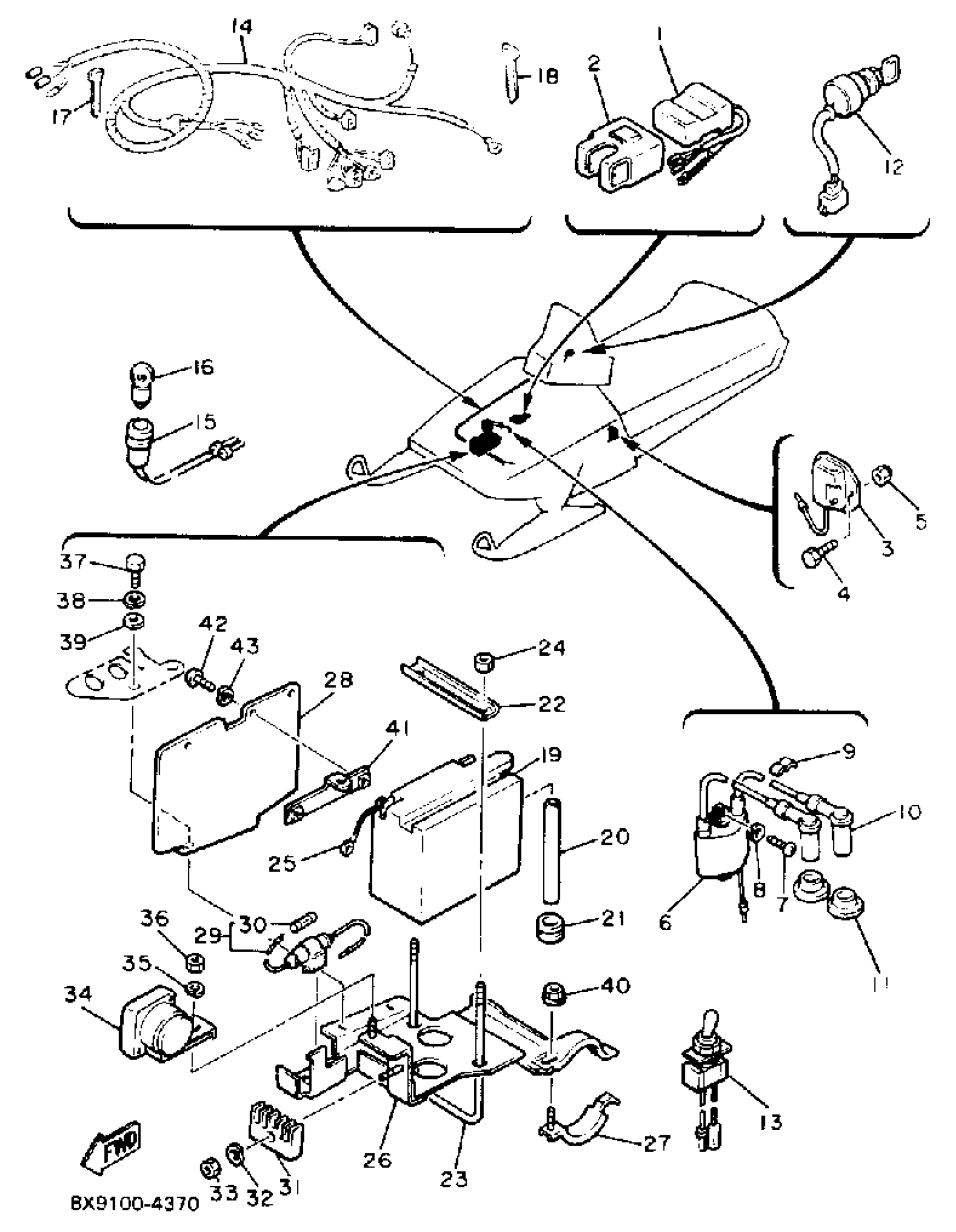

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
8N4-85540-20-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
VOLTAGE REGULATOR ASSY
7XE-81910-00-00
$71.99
4
BOLT(8CP)
97017-06014-00
$8.49
5
NUT, NYLON
95707-06300-00
$3.50
6
IGNITION COIL ASY
8E7-82310-09-00
Unavailable
7
SCREW PAN HEAD
98580-06020-00
$8.49
8
WASHER, SPRING
92995-06100-00
Unavailable
9
CLAMP, CORD
861-82361-00-00
Unavailable
10
PLUG CAP ASSY
85G-82370-20-00
$34.99
11
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
12
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
13
SWITCH
82J-82917-00-00
$105.99
14
WIRE HARNESS ASSEMBLY
8X9-82590-20-00
Unavailable
15
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
16
. BULB (12V5W)
8V0-85353-00-00
Unavailable
17
BAND, SWITCH CORD
437-83936-01-00
Unavailable
18
BAND
341-26397-01-00
Unavailable
19
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
20
HOSE (L340)
90445-08684-00
Unavailable
21
GROMMET 152845180000
90480-12013-00
Unavailable
22
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
23
. SCREW, FITTING
8J4-82133-00-00
Unavailable
24
NUT, NYLON
95707-06300-00
$3.50
25
. WIRE, PLUS LEAD
89X-82115-00-00
Unavailable
26
BRACKET, BATTERY
8V0-2199G-00-00
Unavailable
27
PLATE, BATTERY FITTING
8V0-82136-00-00
Unavailable
28
SHIELD, HEAT
8V0-2199H-00-00
Unavailable
29
FUSE HOLDER ASSEMBLY
2J2-82150-10-00
Unavailable
30
FUSE
682-82151-02-00
Unavailable
31
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
NUT, HEXAGON
95380-06600-00
Unavailable
34
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
NUT, HEXAGON
95380-06600-00
Unavailable
37
BOLT (661)
97013-06012-00
Unavailable
38
WASHER, SPRING
92995-06100-00
Unavailable
39
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
40
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
41
. BRACKET, BATTERY
8V0-82128-00-00
Unavailable
42
GASKET, EXHAUST
98507-05008-00
Unavailable
43
WASHER, PLAIN (646)
92990-05600-00
Unavailable
