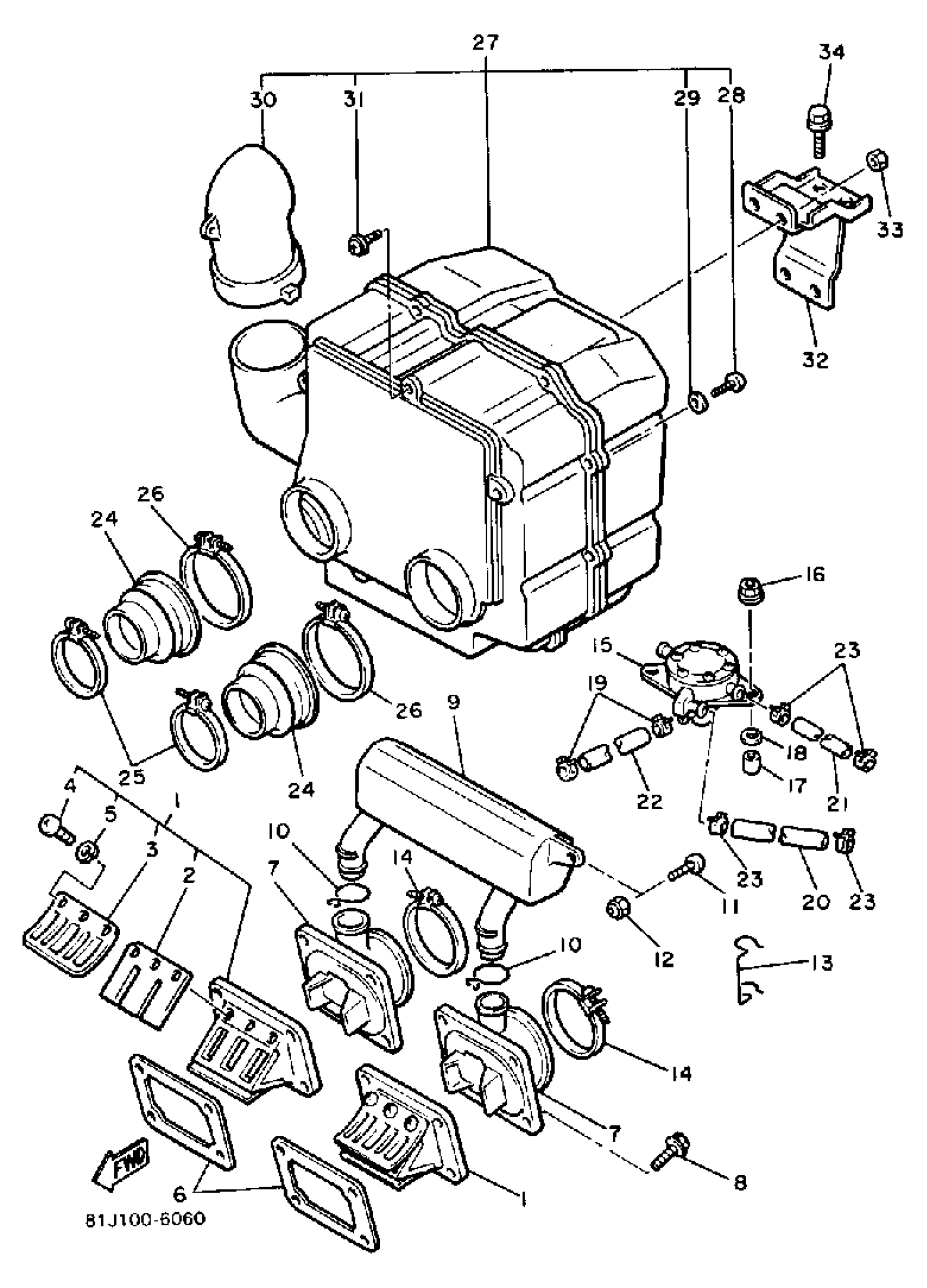

Yamaha PZ480SEH (PHAZER SE (ELEC START)) 1984 AIR CLEANER Diagram
#
1
REED VALVE ASSEMBLY
3R5-13610-00-00
Unavailable
2
REED, VALVE
3R5-13613-00-00
$45.99
3
. STOPPER, REED VALVE
2X5-13616-00-00
Unavailable
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
6
GASKET, VALVE SEAT
80L-13621-01-00
$10.99
7
MANIFOLD, INTAKE
8V0-13555-00-00
$127.99
8
BOLT, FLANGE
95822-06025-00
$1.75
9
CHAMBER, AIR
8V0-13581-00-00
Unavailable
10
CLIP(8V0)
90467-24096-00
$8.49
11
SCREW, PAN HEAD
90157-05M19-00
Unavailable
12
WASHER, PLAIN LARGE
92907-05200-00
$4.46
13
NUT, HEXAGON SMALL
95317-05700-00
$8.49
14
CLAMP
90465-10033-00
Unavailable
15
BAND
86M-13575-00-00
$19.49
16
FUEL PUMP ASSEMBLY (8V0-24410-01)
8V0-24410-02-00
Unavailable
17
NUT(650)
95380-06700-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
COLLAR
90387-06387-00
Unavailable
20
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
21
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
22
HOSE
90446-09053-00
Unavailable
23
HOSE (L450)
90445-10144-00
Unavailable
24
CLIP (8A1)
90467-09026-00
Unavailable
25
JOINT, AIR CLEANER 1
8V0-14453-00-00
Unavailable
26
CLAMP, HOSE (29L)
90460-68230-00
Unavailable
27
HOSE CLAMP ASSY
90450-81001-00
Unavailable
28
UNAVAILABLE IN PRICE BOOK
[SE-ENOTE-]-
Unavailable
29
UNAVAILABLE IN PRICE BOOK
[SE-ENOTE-]-
Unavailable
30
UNAVAILABLE IN PRICE BOOK
[SE-ENOTE-]-
Unavailable
31
UNAVAILABLE IN PRICE BOOK
[SE-ENOTE-]-
Unavailable
32
UNAVAILABLE IN PRICE BOOK
[SE-ENOTE-]-
Unavailable
33
SCREW, PAN HEAD
90157-05M19-00
Unavailable
34
WASHER(1RW)
92907-05600-00
Unavailable
35
. JOINT
8V0-14454-00-00
Unavailable
36
. STAY 2
8V0-14494-00-00
Unavailable
37
NUT, HEXAGON
95380-06600-00
Unavailable
38
BOLT, FLANGE
95817-06012-00
Unavailable
