Description

Price

1

STATOR ASSEMBLY

88F-85510-00-00

Unavailable

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

Unavailable

3

. COIL, LIGHTING 1

8H8-85513-20-00

Unavailable

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

Unavailable

5

. LEAD WIRE ASSEMBLY (8V0-85515-20)

8W0-85515-20-00

Unavailable

6

CLAMP, READ

445-81328-20-00

Unavailable

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN

98507-05035-00

$8.49

10

SCREW, PAN

98507-05040-00

$8.49

11

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

Unavailable

12

. SPACER

8T0-85519-20-00

Unavailable

13

SCREW, PAN HEAD

98507-04018-00

$2.19

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

ROTOR ASSY

88F-85550-00-00

Unavailable

16

SCREW, BIND (705)

98980-06016-00

Unavailable

17

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

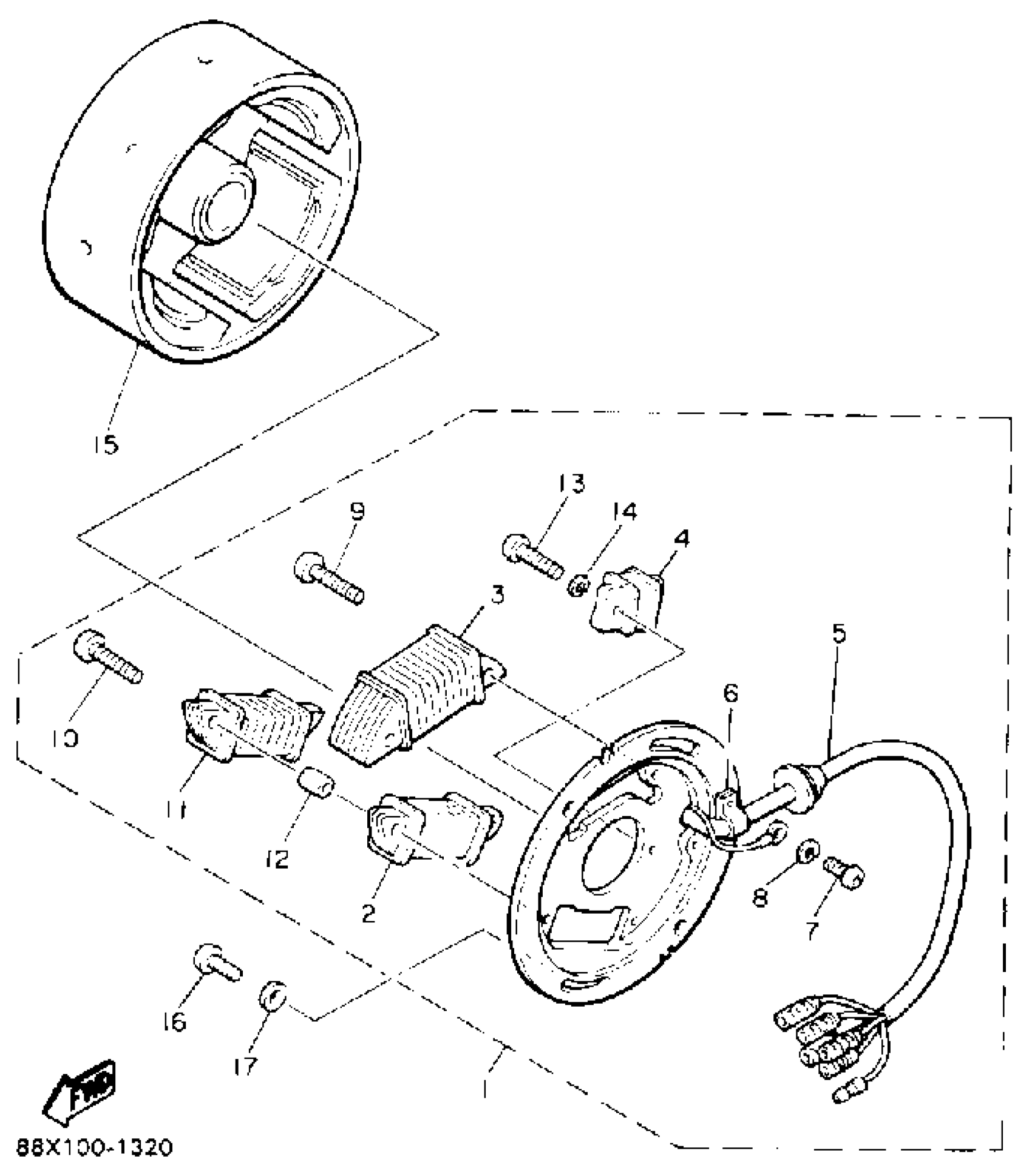

Yamaha PZ480S (PHAZER II) 89F1 1992 GENERATOR Diagram

STATOR ASSEMBLY

. COIL, SOURCE (8T0-85511-20)

. COIL, LIGHTING 1

. COIL, PULSER (8N5-85580-20)

. LEAD WIRE ASSEMBLY (8V0-85515-20)

CLAMP, READ

SCREW, PAN HEAD (713)

YBS67-4 WASHER, SPRING

SCREW, PAN

SCREW, PAN

. COIL, LIGHTING 2 (8V0-85514-20)

. SPACER

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

ROTOR ASSY

SCREW, BIND (705)

WASHER, PLATE 6261117600
