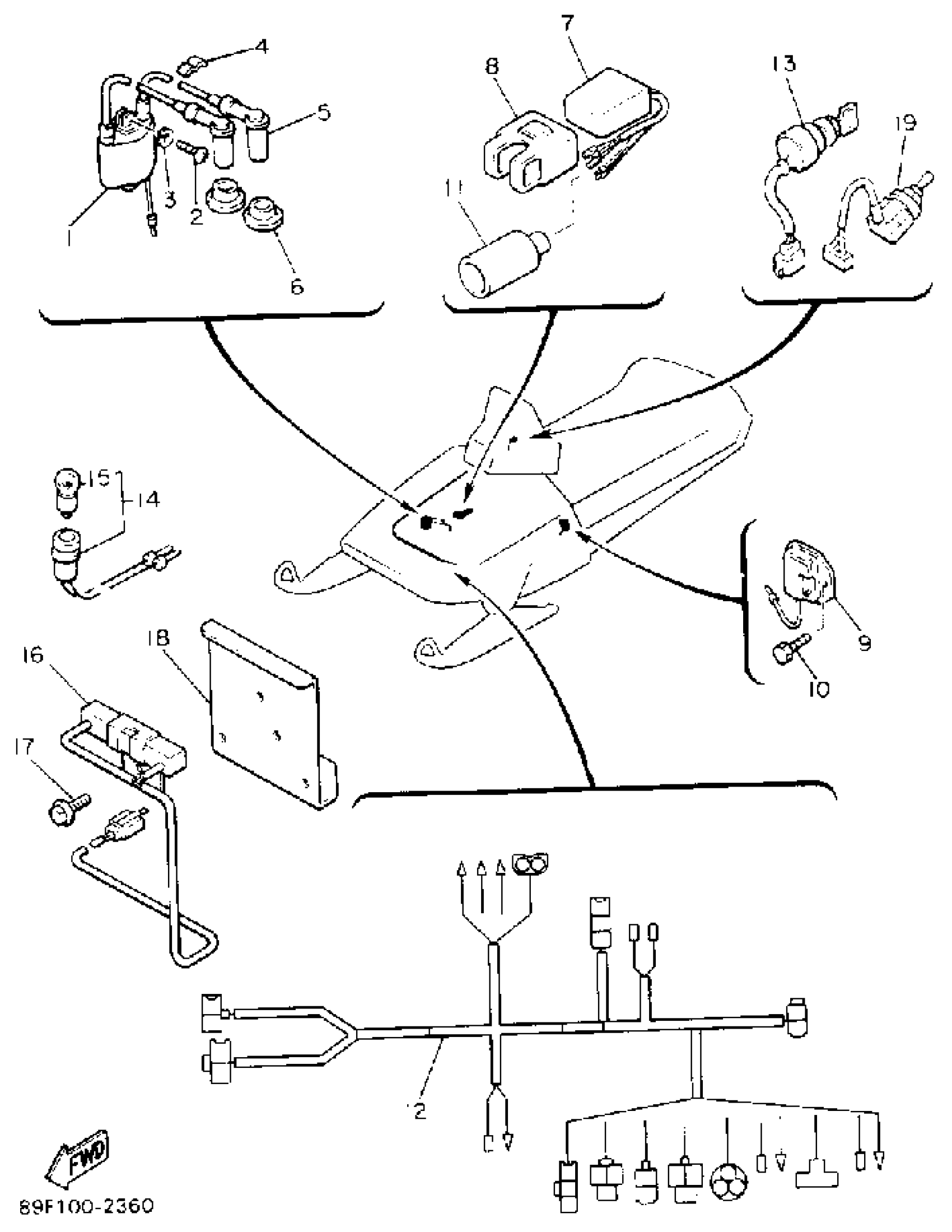

Yamaha PZ480S (PHAZER II) 89F1 1992 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$34.99

6

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

7

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

10

UNAVAILABLE IN PRICE BOOK

870-60604-00-

Unavailable

11

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

12

WIRE HARNESS ASSEMBLY

89F-82590-00-00

Unavailable

13

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

14

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

15

. BULB (12V5W)

8V0-85353-00-00

Unavailable

16

RESISTOR ASSEMBLY

89H-85370-00-00

Unavailable

17

BOLT, FLANGE

95812-06010-00

Unavailable

18

COVER, RESISTOR

89F-85379-00-00

Unavailable

19

SWITCH

88H-82917-00-00

Unavailable
