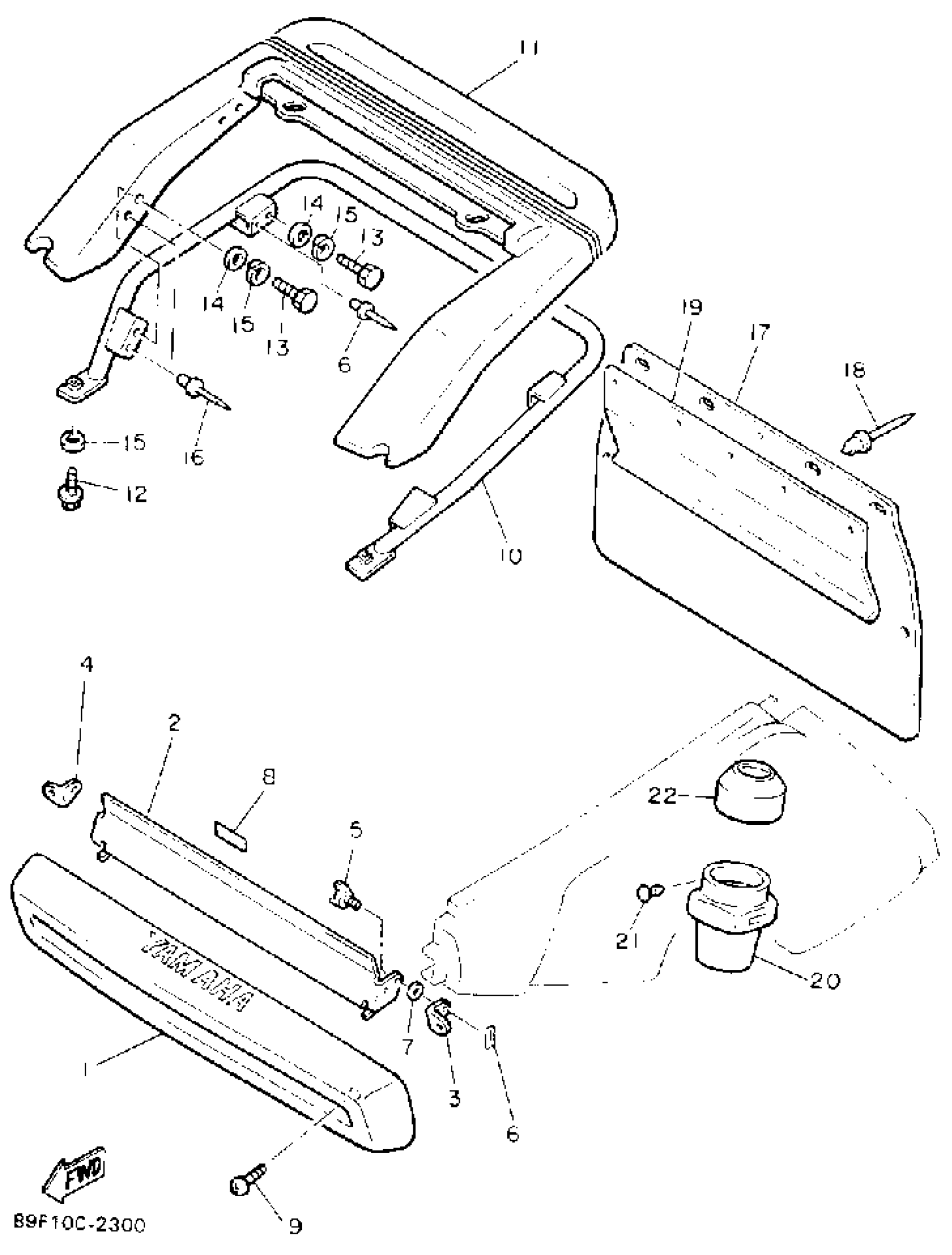

Yamaha PZ480S (PHAZER II) 89F1 1992 BUMPER Diagram

#

Description
Price

1

BUMPER,FRONT 1

8BF-77511-00-00

Unavailable

2

PLATE 1

80L-77185-00-00

Unavailable

3

STAY 1

87F-77125-00-00

Unavailable

4

STAY 2

87F-77126-00-00

Unavailable

5

BOLT, WING(8W1)

90122-05022-00

$7.49

6

PIN, HAIR 6474123500

90468-10003-00

$1.96

7

. WASHER, PLATE

90202-05088-00

Unavailable

8

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

9

SCREW, BINDING

98907-06016-00

$9.49

10

BUMPER, REAR 1

87F-77541-00-00

Unavailable

11

BUMPER, REAR 2

87F-77542-00-00

Unavailable

12

BOLT, FLANGE

95817-08012-00

$5.49

13

SCREW, BIND(J36)

98980-08025-00

$5.60

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

RIVET, BLIND

90267-48117-00

Unavailable

17

FLAP

8V9-77595-00-00

Unavailable

18

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

19

PROTECTOR 6

89X-77556-00-00

Unavailable

20

PROTECTOR 1

82M-77551-00-00

Unavailable

21

RIVET (8M6)

90269-04025-00

Unavailable

22

PROTECTOR 4

82M-77554-01-00

Unavailable
