Description

Price

1

STARTER ASSY

8V0-15710-00-00

Unavailable

2

. CASE, STARTER

8V0-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

WASHER, THRUST

8G5-15739-00-00

$9.49

10

COLLOR

82M-15779-00-00

$8.99

11

PLATE, DRIVE

8F3-15716-03-00

$29.99

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT(650)

95380-06700-00

$8.49

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

15

HANDLE, STARTER

8F3-15755-00-00

$29.99

16

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

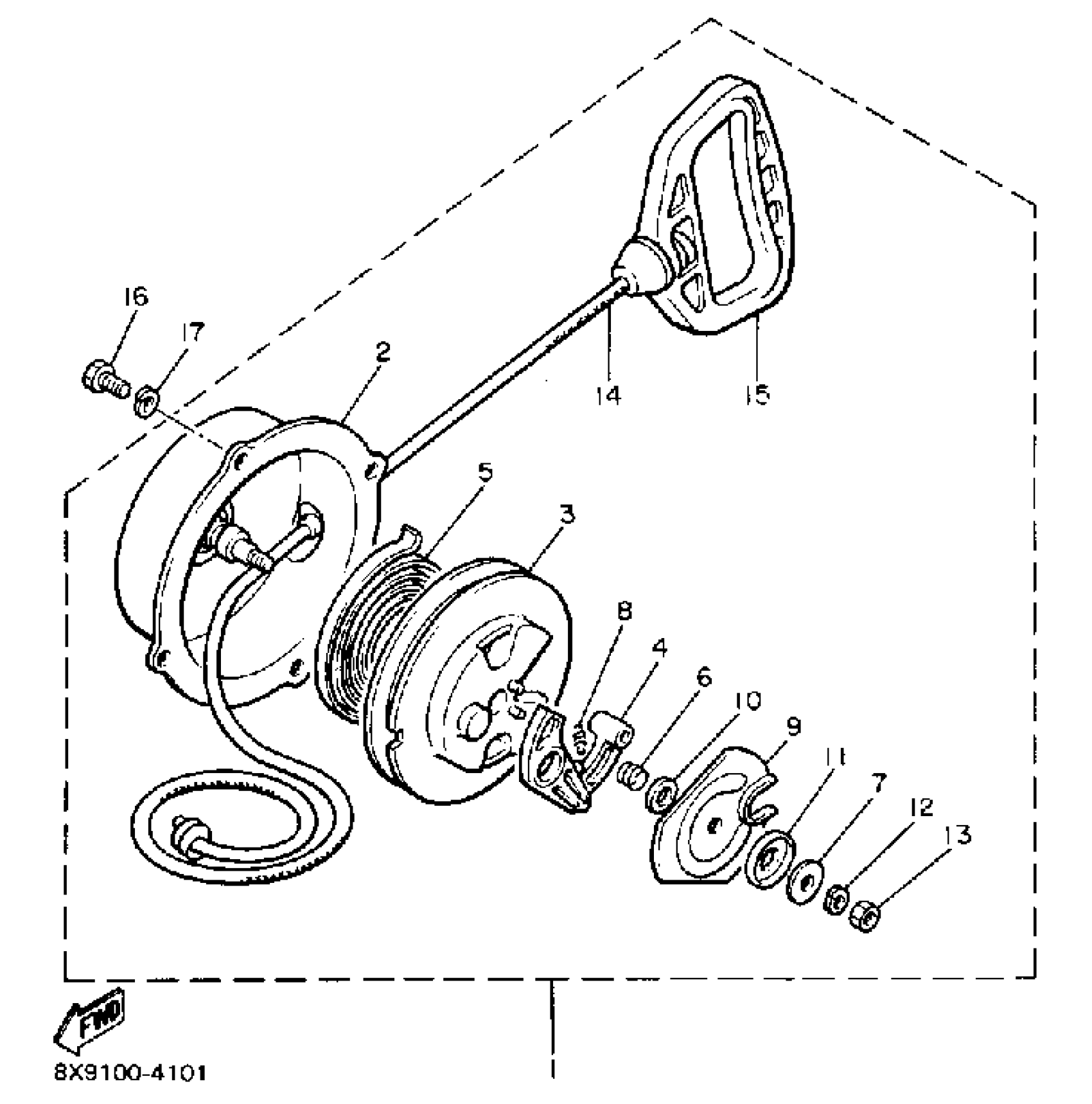

Yamaha PZ480P (PHAZER II) 87F1 1990 STARTER Diagram

STARTER ASSY

. CASE, STARTER

DRUM, SEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

WASHER, THRUST

SPRING, RETURN

WASHER, THRUST

COLLOR

PLATE, DRIVE

WASHER, SPRING

NUT(650)

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING
