Description

Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

85G-82370-20-00

$34.99

6

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

7

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

10

BOLT(8CP)

97017-06014-00

$8.49

11

NUT, NYLON

95707-06300-00

$3.50

12

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

13

WIRE HARNESS ASSEMBLY

87F-82590-00-00

Unavailable

14

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

15

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

16

. BULB (12V5W)

8V0-85353-00-00

Unavailable

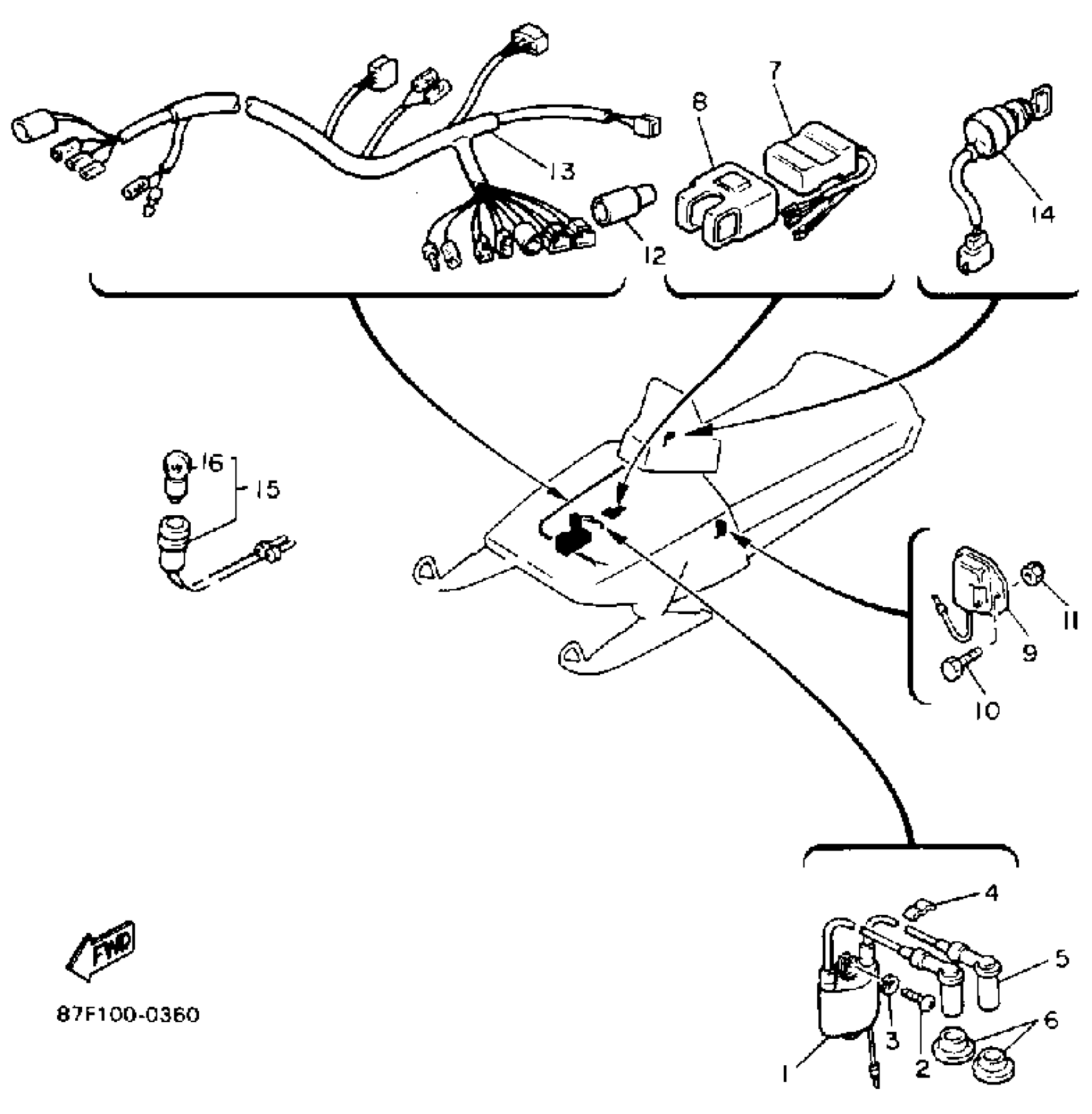

Yamaha PZ480P (PHAZER II) 87F1 1990 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, SPRING

CLAMP, CORD

PLUG CAP ASSY

SEAL, PLUG CAP

C.D.I. UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

BOLT(8CP)

NUT, NYLON

COVER, CONNECTER

WIRE HARNESS ASSEMBLY

MAIN SWITCH ASSY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)
