- PZ480N (PHAZER) 86F1 1989
SHROUD WINSHIELD

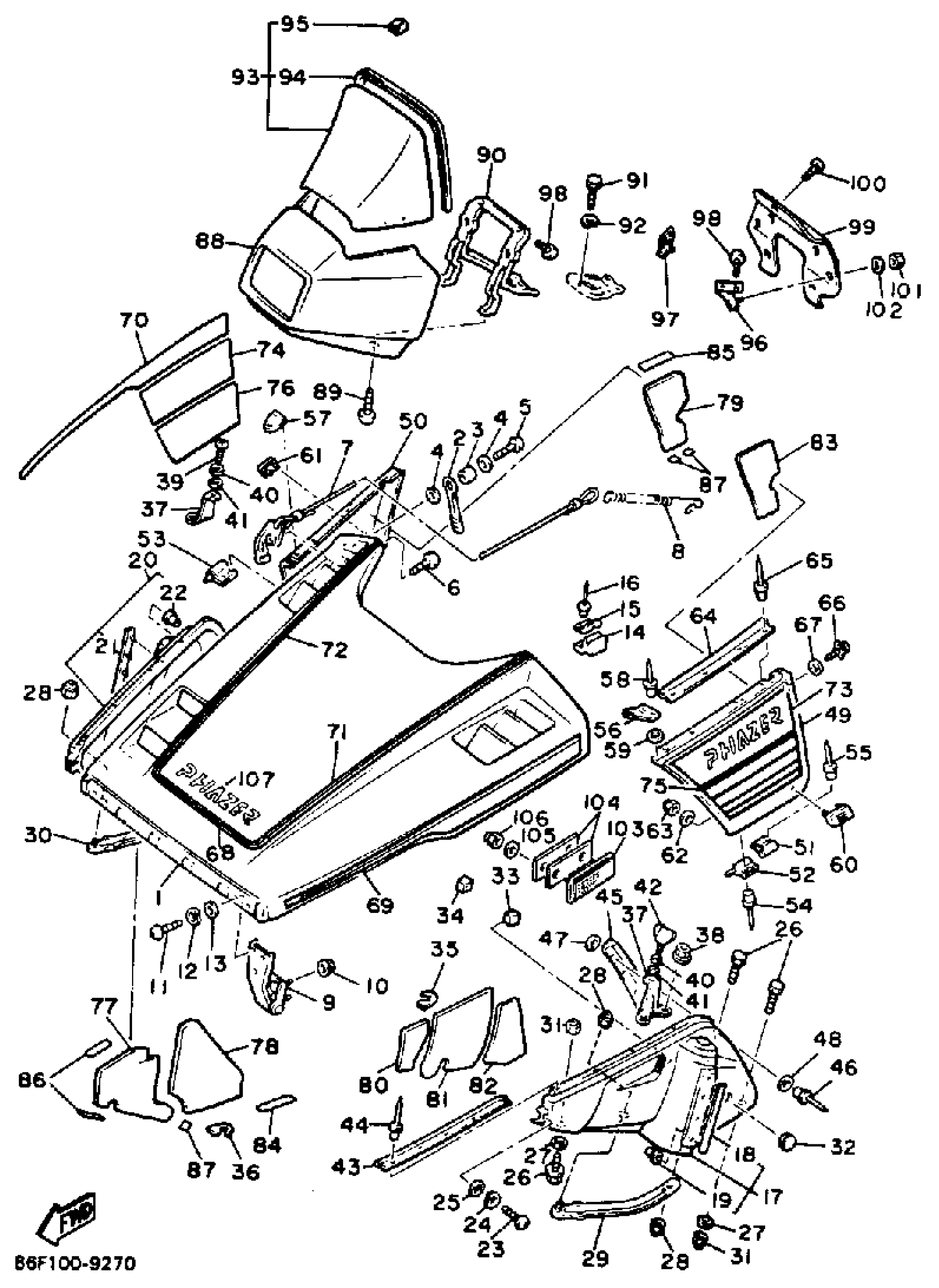

Yamaha PZ480N (PHAZER) 86F1 1989 SHROUD WINSHIELD Diagram
#
1
SHROUD ASSEMBLY
86F-W7714-00-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06025-00
$8.49
6
SCREW, BINDING
98907-06012-00
$9.49
7
STOPPER, SHROUD
80L-77118-01-00
Unavailable
8
CLAMP, ROD
80L-77159-00-00
Unavailable
9
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
10
NUT, FLANGE(7NB)
95780-06500-00
$2.60
11
SCREW, PAN HEAD
90157-05M19-00
Unavailable
12
WASHER(3SX)
92907-05100-00
$8.49
13
WASHER, PLAIN LARGE
92907-05200-00
$4.46
14
STOPPER
8V0-77188-00-00
Unavailable
15
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
16
RIVET, BLIND
90267-40029-00
Unavailable
17
HOOD 1
81H-21982-00-00
Unavailable
18
. EMBLEM 1
81H-77141-00-00
Unavailable
19
NUT, SPRING (1L9)
90183-04012-00
Unavailable
20
HOOD 2
81H-21983-00-00
Unavailable
21
. EMBLEM 1
81H-77141-00-00
Unavailable
22
NUT, SPRING (1L9)
90183-04012-00
Unavailable
23
SCREW, PAN HEAD
90157-05M19-00
Unavailable
24
WASHER(3SX)
92907-05100-00
$8.49
25
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
26
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
27
WASHER, PLATE 8221447500
90201-06057-00
$5.60
28
NUT, NYLON
95707-06300-00
Unavailable
29
GUARD, SUB FRAMEFRAME FR 1
8V0-21995-01-00
Unavailable
30
GUARD, SUB FRAMEFRAME FR 2
8V0-21996-01-00
Unavailable
31
NUT, NYLON
95707-06300-00
Unavailable
32
GROMMET
90480-40382-00
Unavailable
33
GROMMET 1
80L-77431-00-00
Unavailable
34
GROMMET 2
80L-77432-00-00
Unavailable
35
TAPE 1
80L-7717E-00-00
Unavailable
36
TAPE 2
80L-7717F-00-00
Unavailable
37
BRACKET 3
8V0-2196F-00-00
Unavailable
38
NUT, NYLON
95707-05300-00
Unavailable
39
SCREW, BIND (705)
98980-06016-00
Unavailable
40
WASHER, PLATE
90201-06020-00
Unavailable
41
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
42
BOLT, WING (36F)
90122-06020-00
Unavailable
43
BUSH, RUBBER 1
8V0-77515-01-00
Unavailable
44
RIVET(81E)
90269-05055-00
Unavailable
45
TRIM 1
8V0-2196T-00-00
Unavailable
46
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
47
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
48
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
49
HOOD 3
80L-2197H-00-00
Unavailable
50
HOOD 4
80L-2198H-00-00
Unavailable
51
BRACKET, 1
8V0-2194X-00-00
Unavailable
52
BRACKET 2
88R-2195X-00-00
Unavailable
53
BRACKET 2
88R-2195X-00-00
Unavailable
54
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
55
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
56
PROTECTOR 3
8V0-77553-00-00
Unavailable
57
PROTECTOR 4
8V0-77554-00-00
Unavailable
58
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
59
WASHER, PLATE
90201-04027-00
Unavailable
60
PROTECTOR 1
8V0-77551-00-00
Unavailable
61
PROTECTOR 2
8V0-77552-00-00
Unavailable
62
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
63
NUT, NYLON
95707-05300-00
Unavailable
64
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
65
RIVET(81E)
90269-05055-00
Unavailable
66
HOLDER, LATCH
8V0-77175-00-00
Unavailable
67
PLATE
4U5-2176E-00-00
Unavailable
68
STRIPE 1
86F-77281-00-00
Unavailable
69
STRIPE 2
86F-77282-00-00
Unavailable
70
STRIPE 3
86F-77283-00-00
Unavailable
71
STRIPE 4
86F-77284-00-00
Unavailable
72
STRIPE 5
86F-77285-00-00
Unavailable
73
EMBLEM 3
86F-77353-00-00
Unavailable
74
EMBLEM 4
86F-77354-00-00
Unavailable
75
EMBLEM 5
86F-77355-00-00
Unavailable
76
EMBLEM 6
86F-77356-00-00
Unavailable
77
LINING, SHROUD 3
8V0-77263-00-00
Unavailable
78
LINING, SHROUD 1
80L-77261-00-00
Unavailable
79
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
80
DAMPER, NOISE 12
8V0-77272-00-00
Unavailable
81
DAMPER, NOISE 13
8V0-77273-00-00
Unavailable
82
DAMPER, NOISE 14
8V0-77274-00-00
Unavailable
83
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
84
TAPE 1
8V0-7717E-01-00
Unavailable
85
TAPE 1
8V0-7717F-01-00
Unavailable
86
TAPE 3
8V0-7717G-00-00
Unavailable
87
TAPE 3
82M-7717G-01-00
Unavailable
88
FAIRING 1
86F-77231-00-00
Unavailable
89
SCREW, BINDING
98907-06010-00
Unavailable
90
STAY, FAIRING
8V0-77241-00-00
Unavailable
91
BOLT, HEXAGON
97017-06025-00
Unavailable
92
WASHER, SPRING
92995-06100-00
Unavailable
93
WINDSHIELD
8BH-77210-00-XX
Unavailable
94
TRIM,UPPER
87K-77213-00-00
Unavailable
95
. FASTENER
80V-77223-00-00
Unavailable
96
WASHER 1
8X9-77218-00-00
Unavailable
97
WASHER 2
8X9-77219-00-00
Unavailable
98
SCREW, PAN HEAD
98502-05006-00
Unavailable
99
COVER, HEADLIGHT
8X9-77251-00-00
Unavailable
100
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
101
NUT, CROWN(8V0)
90176-05059-00
Unavailable
102
WASHER PLATE (664)
90201-05556-00
Unavailable
103
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
104
BASE, REFLECTOR
80E-85115-00-00
Unavailable
105
WASHER, PLAIN (646)
92990-05600-00
Unavailable
106
NUT, NYLON
95707-05300-00
Unavailable
107
EMBLEM 2
86F-77142-00-00
Unavailable
