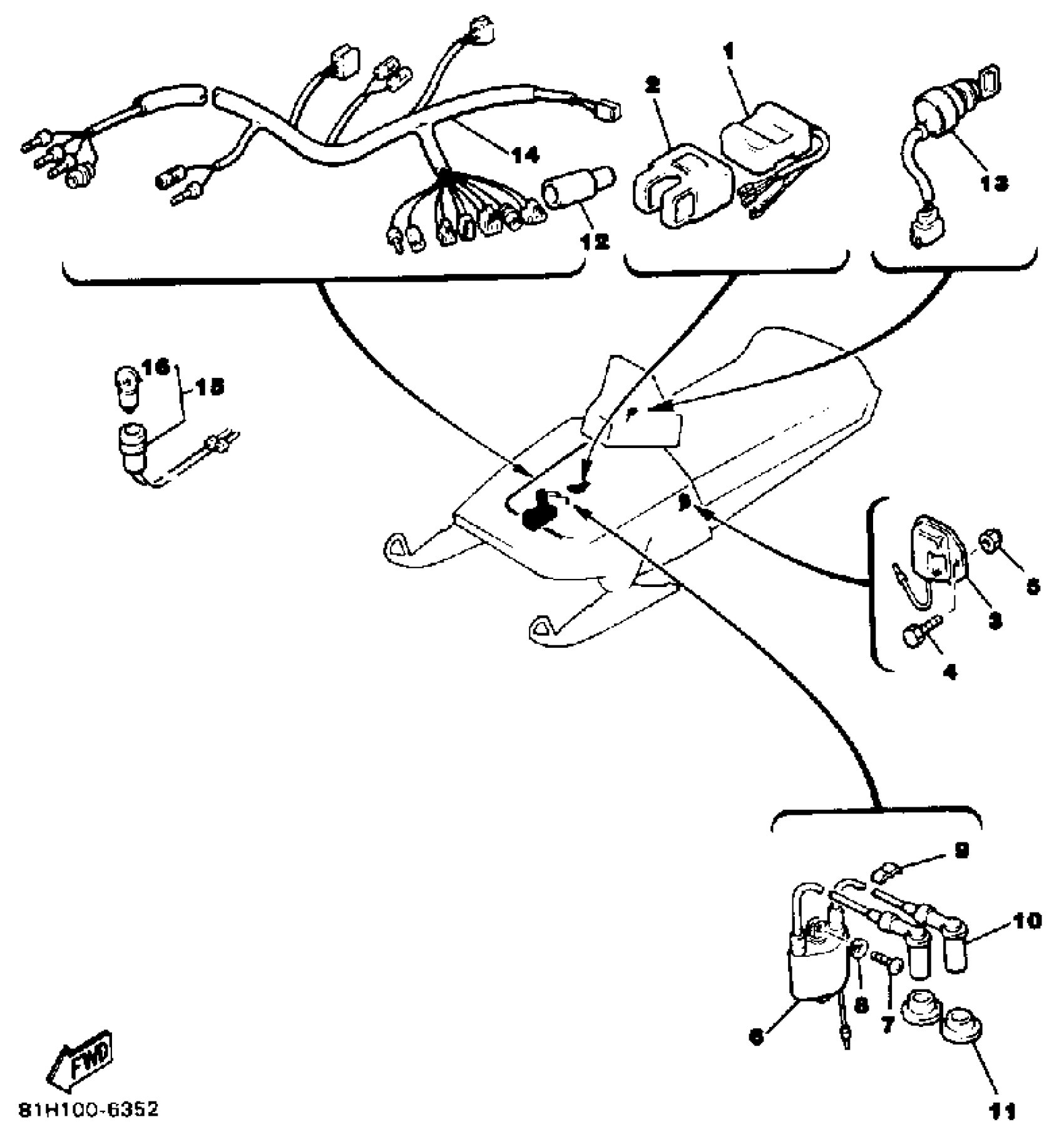

Yamaha PZ480N (PHAZER) 86F1 1989 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

BAND

2A7-85546-00-00

Unavailable

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

BOLT(8CP)

97017-06014-00

$8.49

NUT, NYLON

95707-06300-00

$3.50

IGNITION COIL ASSY

85T-82310-06-00

$79.99

SCREW PAN HEAD

98580-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

CLAMP, CORD

861-82361-00-00

Unavailable

PLUG CAP ASSY

85G-82370-20-00

$34.99

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

WIRE HARNESS ASSEMBLY

84J-82590-20-00

Unavailable

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

. BULB (12V5W)

8V0-85353-00-00

Unavailable
