Description

Price

1

BUMPER, FRONT 1

86F-77511-00-00

Unavailable

2

PLATE 1

80L-77185-00-00

Unavailable

3

STAY 1

80L-77125-01-00

Unavailable

4

BOLT, WING(8W1)

90122-05022-00

$7.49

5

PIN, HAIR 6474123500

90468-10003-00

$1.96

6

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

7

SCREW, BINDING

98907-06016-00

$9.49

8

BUMPER, REAR 2

87F-77542-00-00

Unavailable

9

FLAP

8X9-77595-00-00

Unavailable

10

RIVET, BLIND (8R6)

90267-48086-00

$4.14

11

SCREW, BIND(J50)

98980-08020-00

$2.65

12

WASHER, PLAIN

92990-08200-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

BOLT, FLANGE

95817-08012-00

$5.49

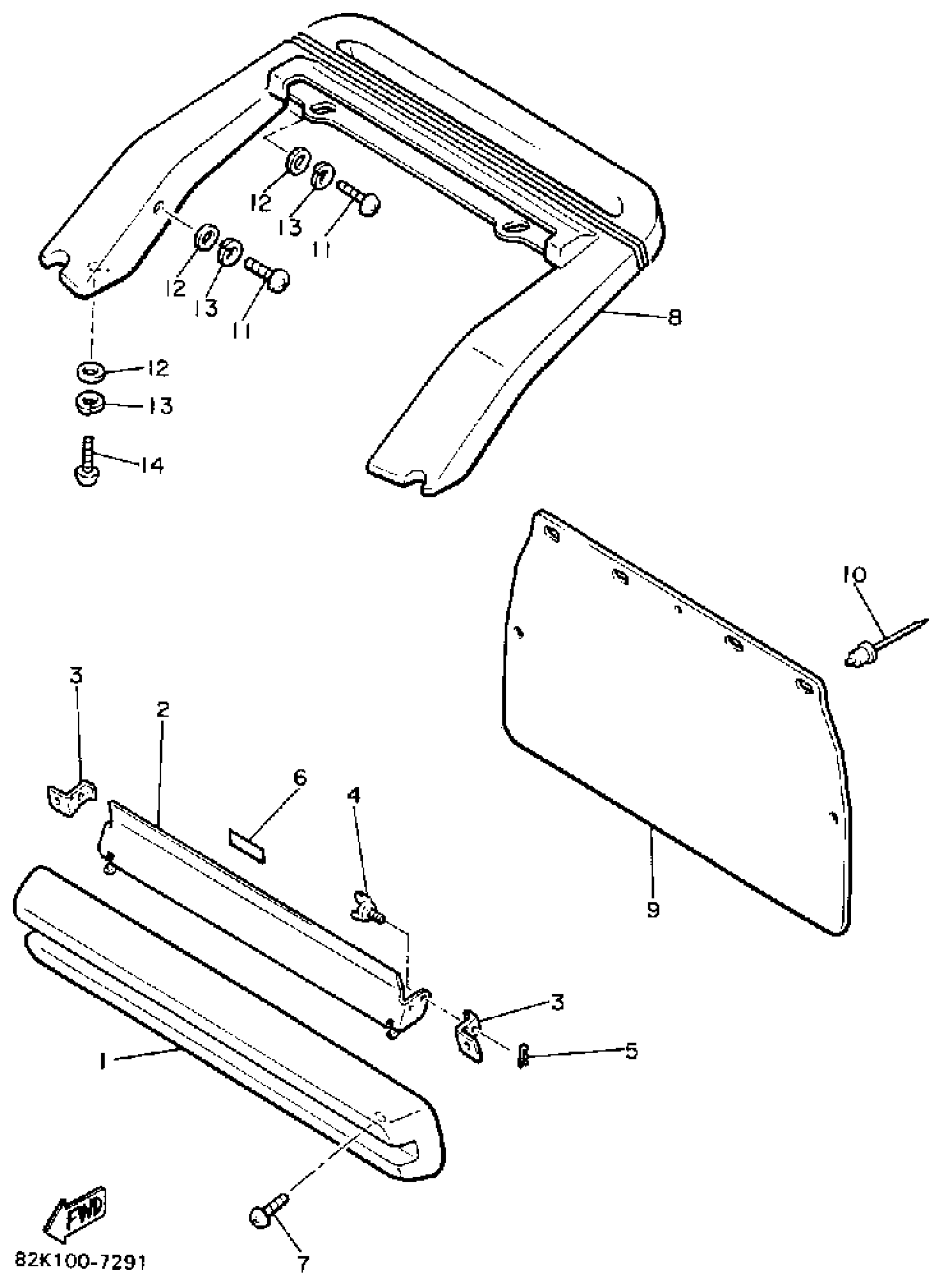

Yamaha PZ480N (PHAZER) 86F1 1989 BUMPER Diagram

BUMPER, FRONT 1

PLATE 1

STAY 1

BOLT, WING(8W1)

PIN, HAIR 6474123500

LABEL,WARNING 2

SCREW, BINDING

BUMPER, REAR 2

FLAP

RIVET, BLIND (8R6)

SCREW, BIND(J50)

WASHER, PLAIN

YBS67-8 WASHER, SPRING

BOLT, FLANGE
