- PZ480N (PHAZER) 86F1 1989
AIR SHROUD FAN

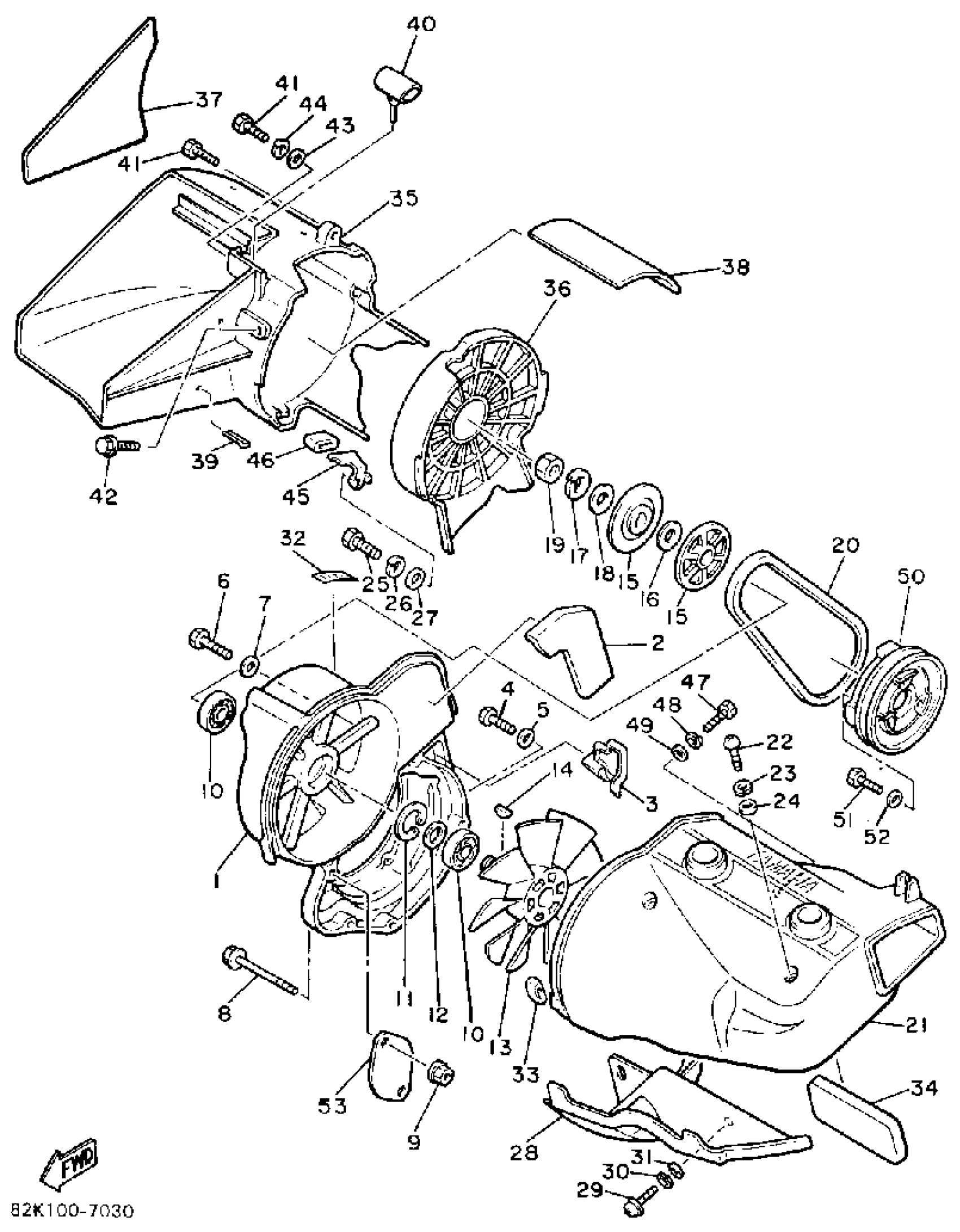

Yamaha PZ480N (PHAZER) 86F1 1989 AIR SHROUD FAN Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
DAMPER, SHROUD 6
8Y0-12679-00-00
Unavailable
3
DAMPER, AIR SHROUD 1
80L-12658-01-00
Unavailable
4
BOLT
97013-08035-00
$5.60
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BOLT, HEXAGON
97013-08050-00
Unavailable
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
BOLT, FLANGE
95817-08090-00
$4.77
9
NUT, FLANGE
95704-08500-00
$8.49
10
BEARING
93306-20348-00
$40.99
11
CIR-CLIP (70R)
93420-40064-00
Unavailable
12
WASHER, PLATE (8H8)
90201-17713-00
$7.49
13
FAN
8H8-12611-01-00
$89.99
14
KEY, WOOD RUFF (324)
90280-05014-00
$9.49
15
PULLEY 2
8H8-12619-01-00
$37.99
16
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
16
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
17
WASHER(JN5)
92907-16100-00
Unavailable
18
WASHER, PLATE (8H8)
90201-17713-00
$7.49
19
NUT
90170-16425-00
Unavailable
20
BELT
8V0-12612-00-00
Unavailable
21
AIR SHROUD, CYLINDER 1
8V0-12651-02-00
Unavailable
22
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
23
WASHER, SPRING
92907-06100-00
Unavailable
24
WASHER(6TA)
92907-06600-00
Unavailable
25
BOLT, HEXAGON
97017-06016-00
Unavailable
26
WASHER, SPRING
92907-06100-00
Unavailable
27
WASHER(6TA)
92907-06600-00
Unavailable
28
AIR SHROUD, CYLINDER 2
8V0-12652-00-00
Unavailable
29
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
30
WASHER, SPRING
92907-06100-00
Unavailable
31
WASHER(6TA)
92907-06600-00
Unavailable
32
LABEL, CAUTION
8K4-12628-00-00
Unavailable
33
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
34
DAMPER, ENGINE MOUNT 2
3WF-15326-00-00
Unavailable
35
DUCT
8V0-12661-04-00
Unavailable
36
COVER, FAN CASE
80L-12616-00-00
Unavailable
37
DAMPER, DUCT 2
8V0-12685-01-00
Unavailable
38
DAMPER, DUCT 3
8V0-12686-00-00
Unavailable
39
PIN, COTTER
91401-16030-00
Unavailable
40
BUSH, RUBBER
81H-12667-00-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
42
BOLT, FLANGE
95817-06020-00
Unavailable
43
WASHER, PLATE
90201-06045-00
Unavailable
44
WASHER, SPRING
92907-06100-00
Unavailable
45
STAY 1
8V0-12637-00-00
Unavailable
46
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
47
BOLT, HEXAGON
97017-06016-00
Unavailable
48
WASHER, SPRING
92907-06100-00
Unavailable
49
WASHER(6TA)
92907-06600-00
Unavailable
50
PULLEY, STARTER
8V0-15723-00-00
Unavailable
51
BOLT, HEXAGON
97017-08025-00
Unavailable
52
.. WASHER, PLATE
92990-08600-00
Unavailable
53
PLATE
8K4-12633-00-00
Unavailable
