SECONDARY SHEAVE

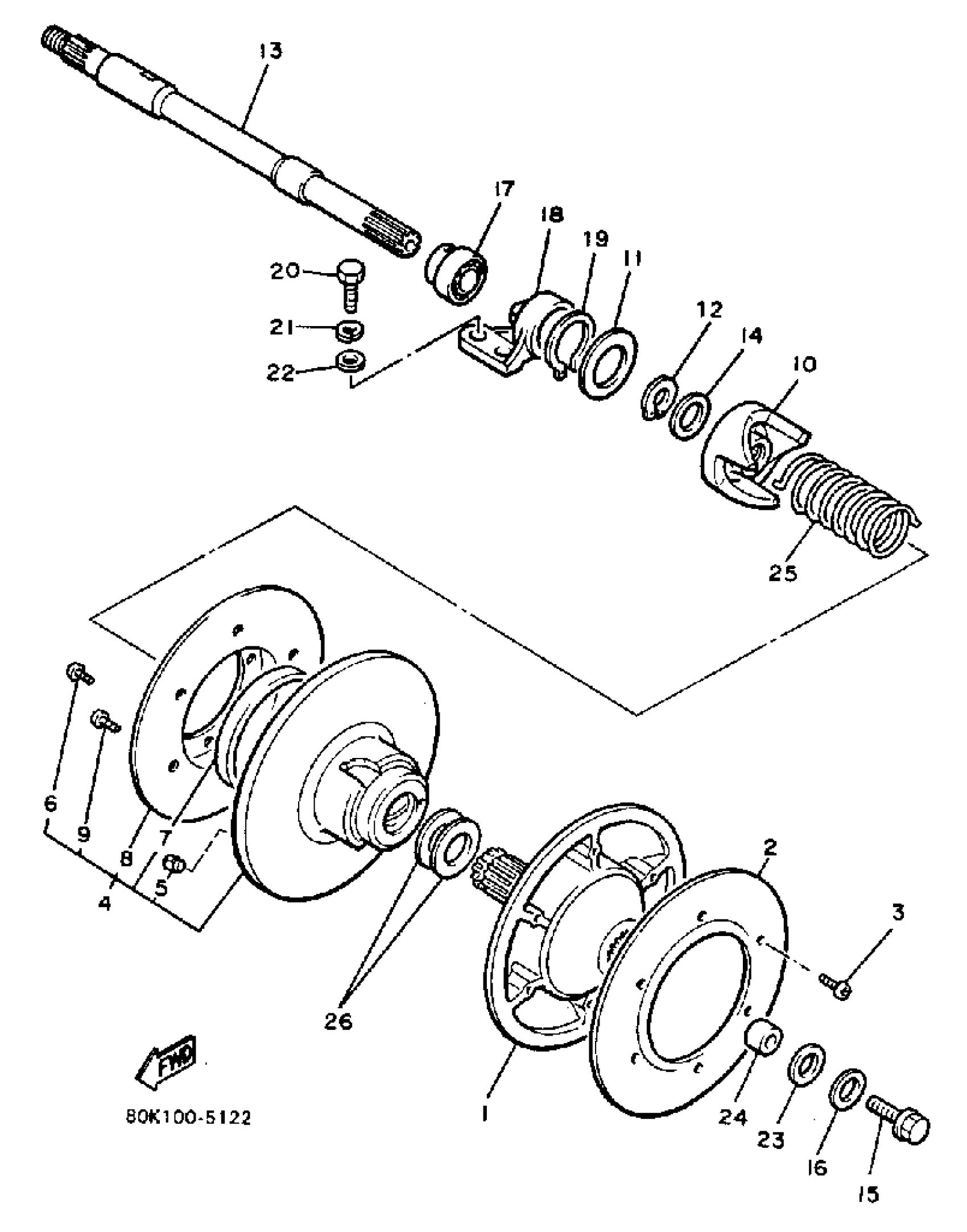

Yamaha PZ480K (PHAZER) 1986 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
89N-17660-00-00
Unavailable
2
PLATE 1
81H-17665-01-00
Unavailable
3
GASKET, EXHAUST
98507-05008-00
$3.55
4
SECONDARY SLIDING SHEAVE
81H-17670-00-00
Unavailable
5
SHOE RAMP
8X6-17688-00-00
$8.49
6
SCREW, BINDING
98907-06012-00
$9.49
7
BUSH, BIMETAL FORMED (90384-90081-00)
90380-90117-00
Unavailable
8
PLATE 2
81H-17675-01-00
Unavailable
9
GASKET, EXHAUST
98507-05008-00
$3.55
10
SEAT, SECONDARY SPRING
8V0-17684-00-00
Unavailable
11
WASHER, PLATE
90201-34684-00
Unavailable
12
CIRCLIP(86F)
93440-34170-00
$8.49
13
SHAFT, SECONDARY
82M-17681-00-00
Unavailable
14
WASHER, PLATE (8R6)
90201-252F1-00
$8.49
14
WASHER, PLATE (888)
90201-25526-00
$9.49
14
WASHER, PLATE (888)
90201-25527-00
Unavailable
15
BOLT, WASHER BASED
90105-14175-00
Unavailable
16
WASHER, PLATE
90201-140A6-00
Unavailable
17
BEARING
888-17678-00-00
Unavailable
18
HOUSING, BEARING
85L-47631-00-00
Unavailable
19
CIRCLIP(26H)
99009-52500-00
Unavailable
20
BOLT,HEXAGON
97027-08022-00
Unavailable
21
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
23
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
24
COLLAR
90387-147A8-00
Unavailable
25
SPRING, TORSION
90508-50654-00
Unavailable
26
WASHER, PLATE (8U9)
90201-345G2-00
Unavailable
