1986 Yamaha Phazer (PZ480K) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha Phazer (PZ480K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

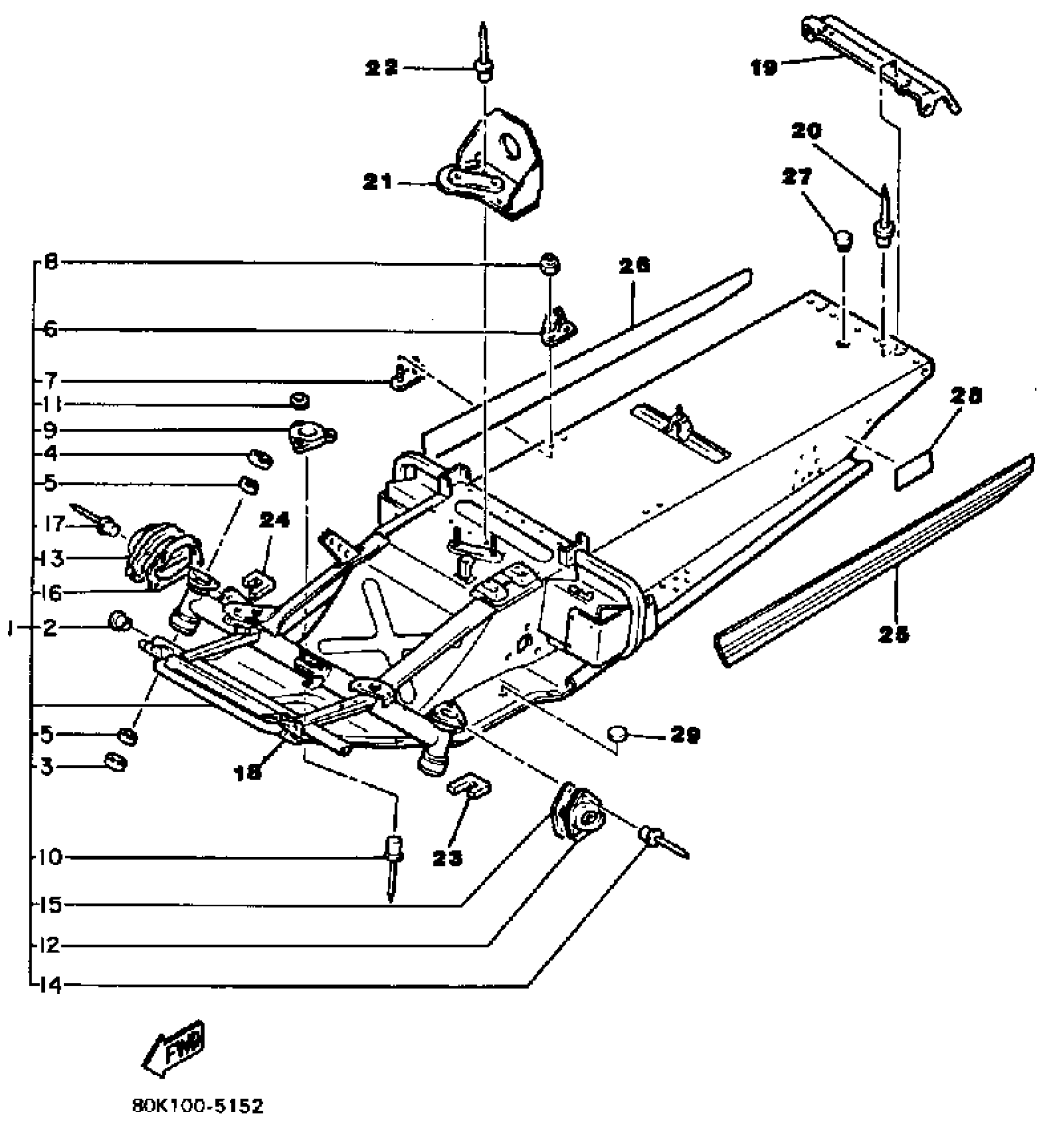

1986 Yamaha Phazer (PZ480K) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

82K-21910-00-00

1
Out of stock

2

.. BUSH, SOLID

90381-12047-00

1
Out of stock

3

. OIL SEAL

93103-44134-00

1
Out of stock

4

. OIL SEAL, SD-TYPE

93102-44280-00

1
Out of stock

5

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

6

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

7

. PATCH 6

8V0-21966-00-00

1
Out of stock

8

NUT, NYLON

95707-06300-00

1

$3.20

In stock

9

. SPACER

80L-21998-00-00

1
Out of stock

10

RIVET, BLIND (8M6)

90267-48051-00

1

$1.88

In stock

11

WASHER, PLATE

90201-04027-00

1
Out of stock

12

. COVER 1

80L-2198F-00-00

1
Out of stock

13

. COVER 2

80L-2198G-00-00

1
Out of stock

14

RIVET, BLIND(8R6)

90267-40105-00

—

$1.62

In stock

15

. WASHER 1

80L-77525-00-00

1
Out of stock

16

. WASHER 2

80L-77526-00-00

1
Out of stock

17

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

18

. BELLY PAN (80L-21912-00)

8X9-21912-00-00

1
Out of stock

19

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

20

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

21

BRACKET, FUEL TNK 2

80L-2194R-00-00

1
Out of stock

22

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

23

TAPE 3

80L-7717G-00-00

1
Out of stock

24

TAPE 4

80L-7717H-00-00

1
Out of stock

25

EMBLEM 1

81J-77351-00-00

1
Out of stock

26

EMBLEM 2

81J-77352-00-00

1
Out of stock

27

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

28

INDICATOR 2

8K2-77742-00-00

1
Out of stock

29

SPACER

80F-21998-00-00

—

$11.69

In stock
