1986 Yamaha Phazer (PZ480K) Bumper Diagram

← All diagrams

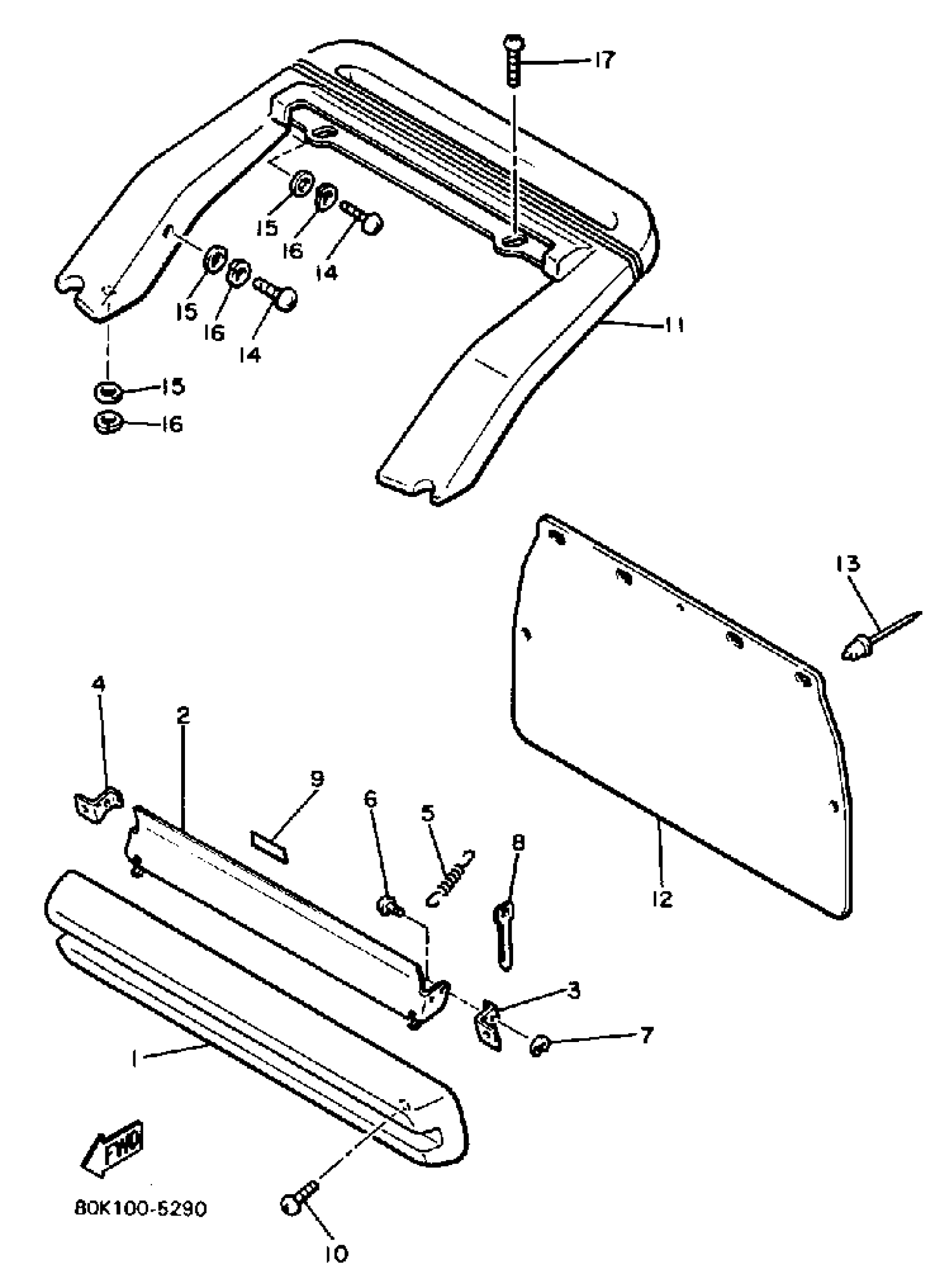

Find the part on the Bumper diagram for your 1986 Yamaha Phazer (PZ480K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Phazer (PZ480K) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8X9-77511-00-00

1
Out of stock

2

PLATE 1

80L-77185-00-00

1
Out of stock

3

STAY 1

80L-77125-00-00

1
Out of stock

4

STAY 2

80L-77126-00-00

1
Out of stock

5

SPRING, TENSION

90506-12371-00

1
Out of stock

6

PIN

90249-05187-00

1
Out of stock

7

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

8

BAND

80L-26397-00-00

1

$6.57

In stock

9

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

10

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

11

BUMPER, REAR 2

87F-77542-00-00

1
Out of stock

12

FLAP

8X9-77595-00-00

1
Out of stock

13

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

14

SCREW, BIND(J50)

98980-08020-00

1

$3.40

In stock

15

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

SCREW, BIND

98903-08012-00

1
Out of stock
