Carburetor

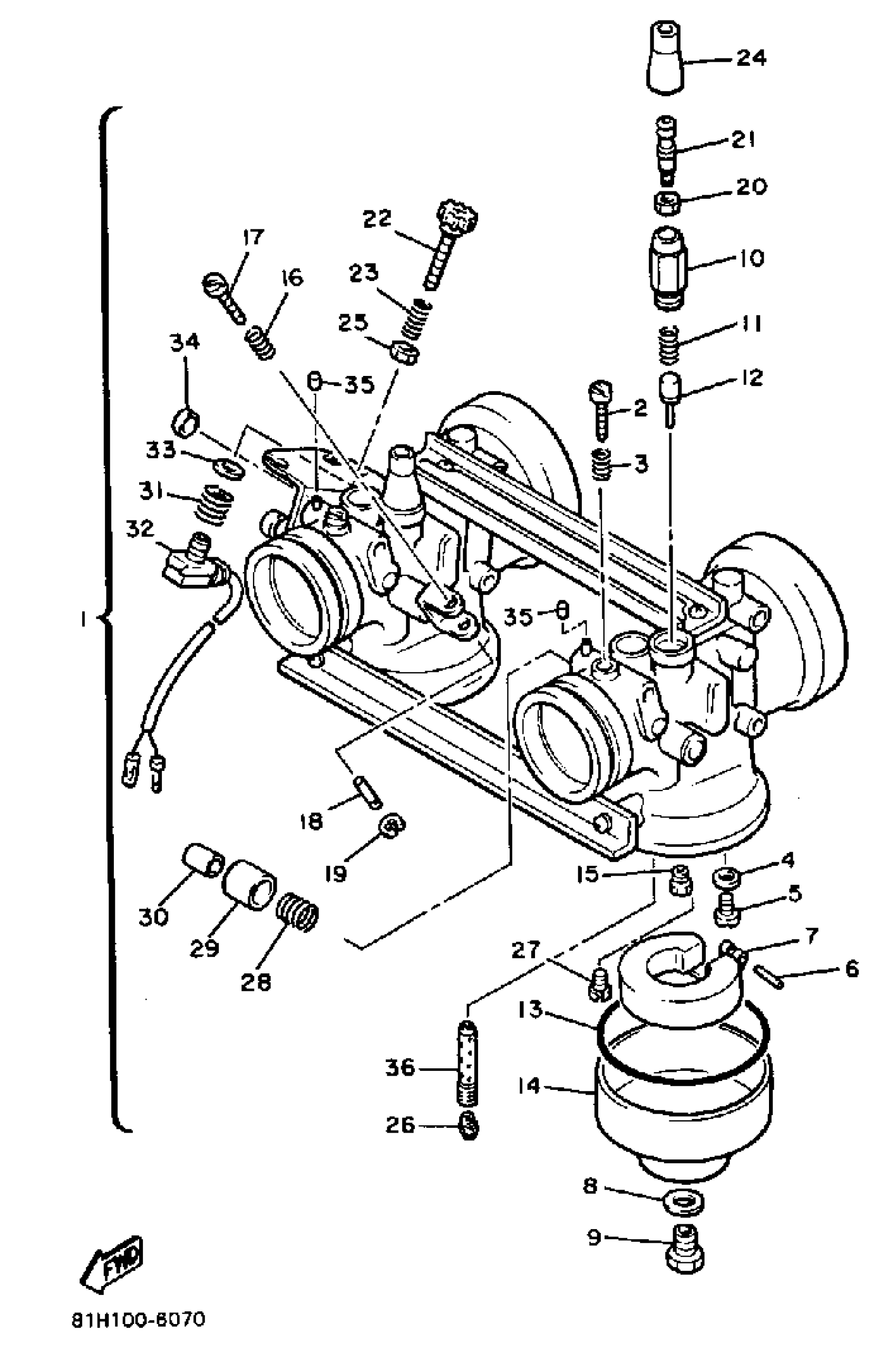

1986 Yamaha Phazer (PZ480K) Carburetor Diagram
Find the part on the Carburetor diagram for your 1986 Yamaha Phazer (PZ480K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR
80L-14100-04-00
16
. SPRING, THROTTLE STOP
3F7-14133-00-00
17
. STOP SCREW SET
12R-1490K-00-00
18
. ROD, PUSH
584-14992-00-00
19
. CLIP
256-14937-00-00
25
. NUT
8V0-14358-00-00
26
JET, MAIN (#135)
3G2-14231-27-00
26
JET, MAIN (#140)
3G2-14231-28-00
26
JET, MAIN (#145)
3G2-14231-29-00
26
. JET, MAIN (1525) (3G2-14231-81)
3G2-14231-81-A0
26
JET,MAIN #137.5
3G2-1423A-78-00
28
. SPRING, THROTTLE 2
80L-14932-00-00
