SECONDARY SHEAVE

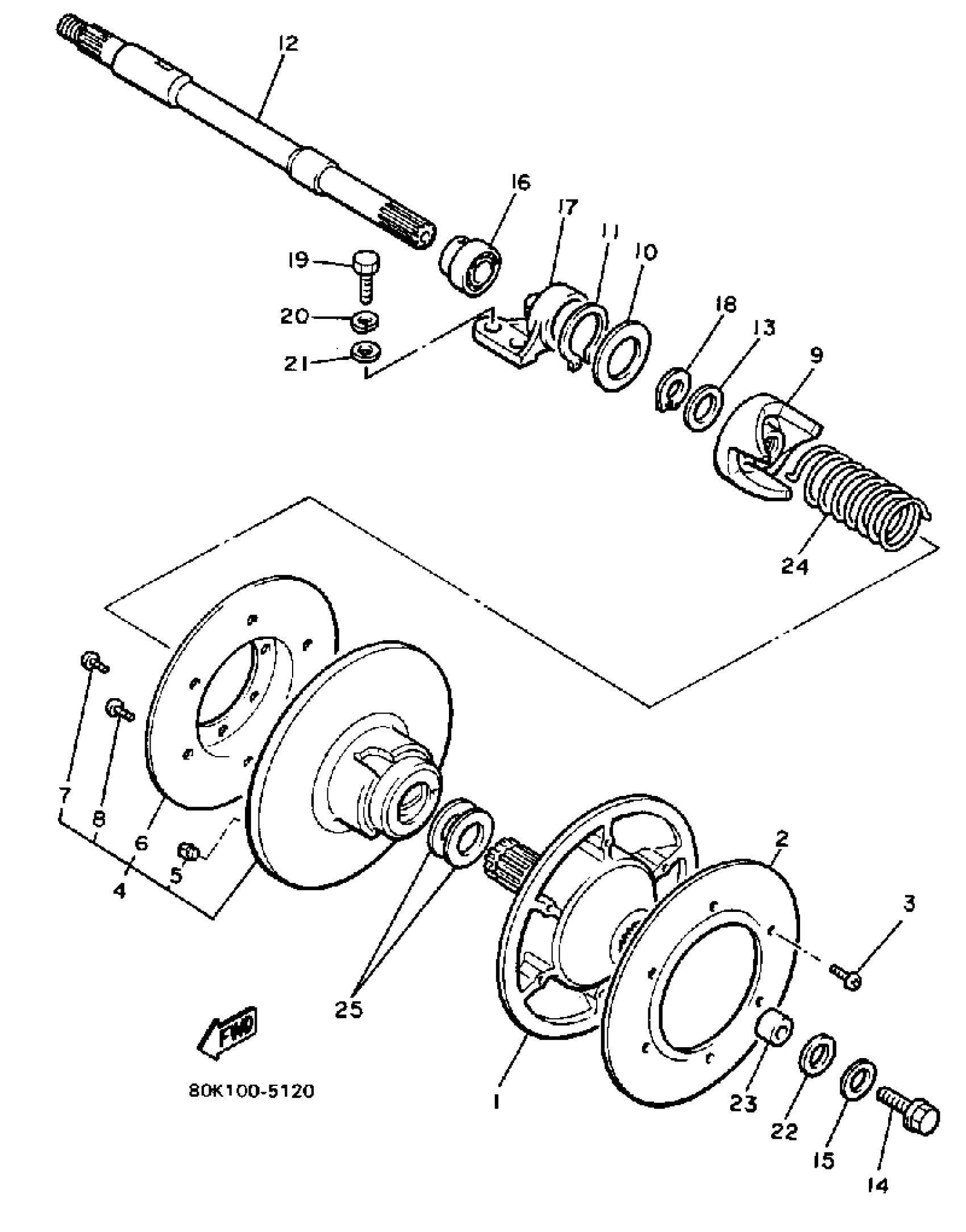

Yamaha PZ480J (PHAZER) 1985 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
89N-17660-00-00
Unavailable
2
PLATE 1
81H-17665-01-00
Unavailable
3
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
4
SECONDARY SLIDING SHEAVE
81H-17670-00-00
Unavailable
5
SHOE RAMP
8X6-17688-00-00
$8.49
6
PLATE 2
81H-17675-01-00
Unavailable
7
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
8
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
9
SEAT, SECONDARY SPRING
8V0-17684-00-00
Unavailable
10
WASHER, PLATE
90201-34684-00
Unavailable
11
CIRCLIP(86F)
93440-34170-00
$8.49
12
SHAFT, SECONDARY
82M-17681-00-00
Unavailable
13
WASHER, PLATE (8R6)
90201-252F1-00
$8.49
13
WASHER, PLATE (888)
90201-25526-00
$9.49
13
WASHER, PLATE (888)
90201-25527-00
$10.49
14
BOLT, WASHER BASED
90105-14175-00
Unavailable
15
WASHER, PLATE
90201-140A6-00
Unavailable
16
BEARING
888-17678-00-00
Unavailable
17
HOUSING, BEARING
85L-47631-00-00
Unavailable
18
CIRCLIP(26H)
99009-52500-00
Unavailable
19
BOLT,HEXAGON
97027-08022-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
22
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
23
COLLAR
90387-147A8-00
Unavailable
24
SPRING, TORSION
90508-50654-00
Unavailable
25
WASHER, PLATE (8U9)
90201-345G2-00
Unavailable
