1985 Yamaha Phazer (PZ480J) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1985 Yamaha Phazer (PZ480J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

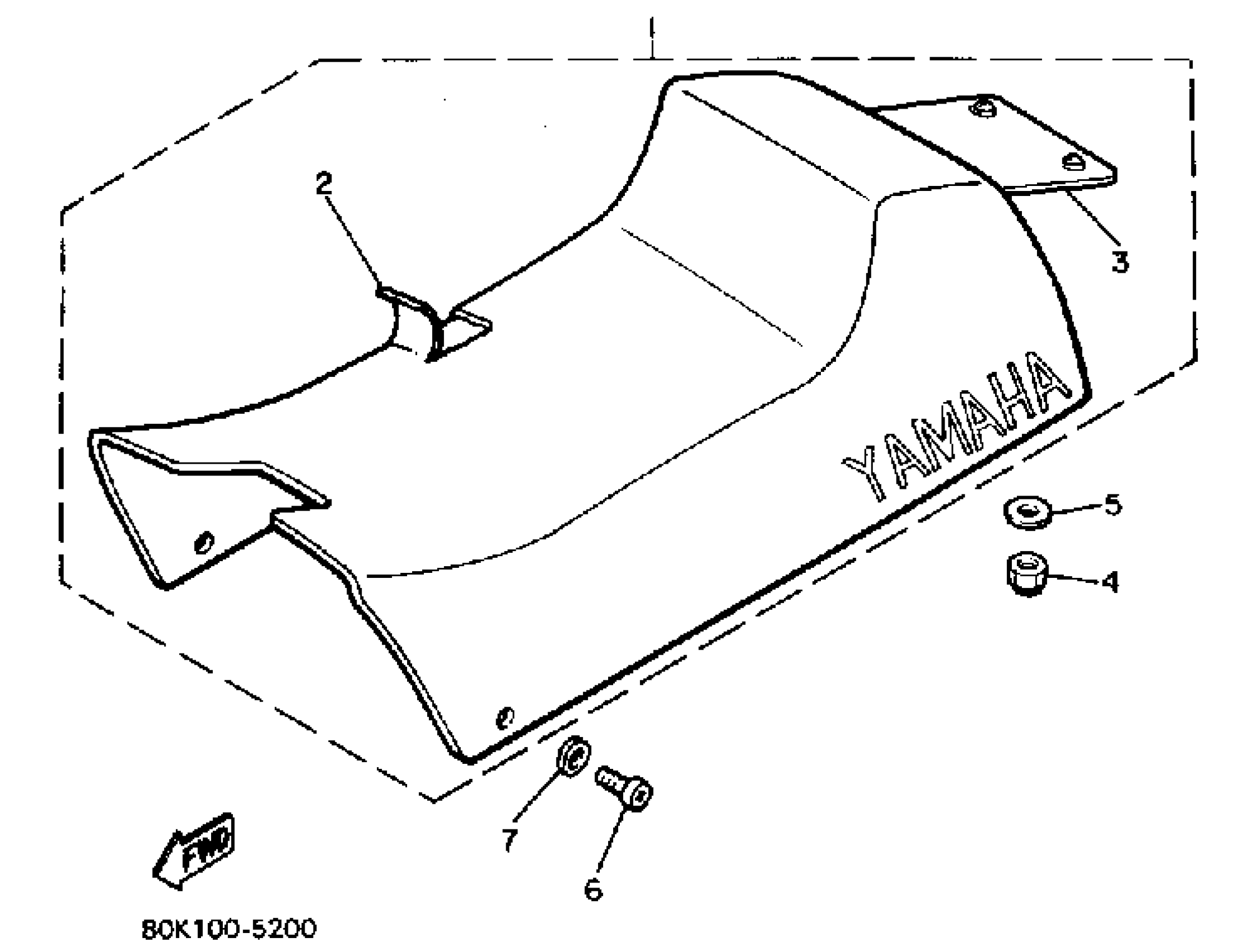

1985 Yamaha Phazer (PZ480J) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

82K-24710-00-00

1
Out of stock

2

COVER,SINGLE SEAT

82K-24711-00-00

1
Out of stock

3

. COVER, LUGGE BOX 2 (8X9-77377-00)

8X9-77377-01-00

1
Out of stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

6

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

7

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock
