1985 Yamaha Phazer (PZ480J) Frame Diagram

← All diagrams

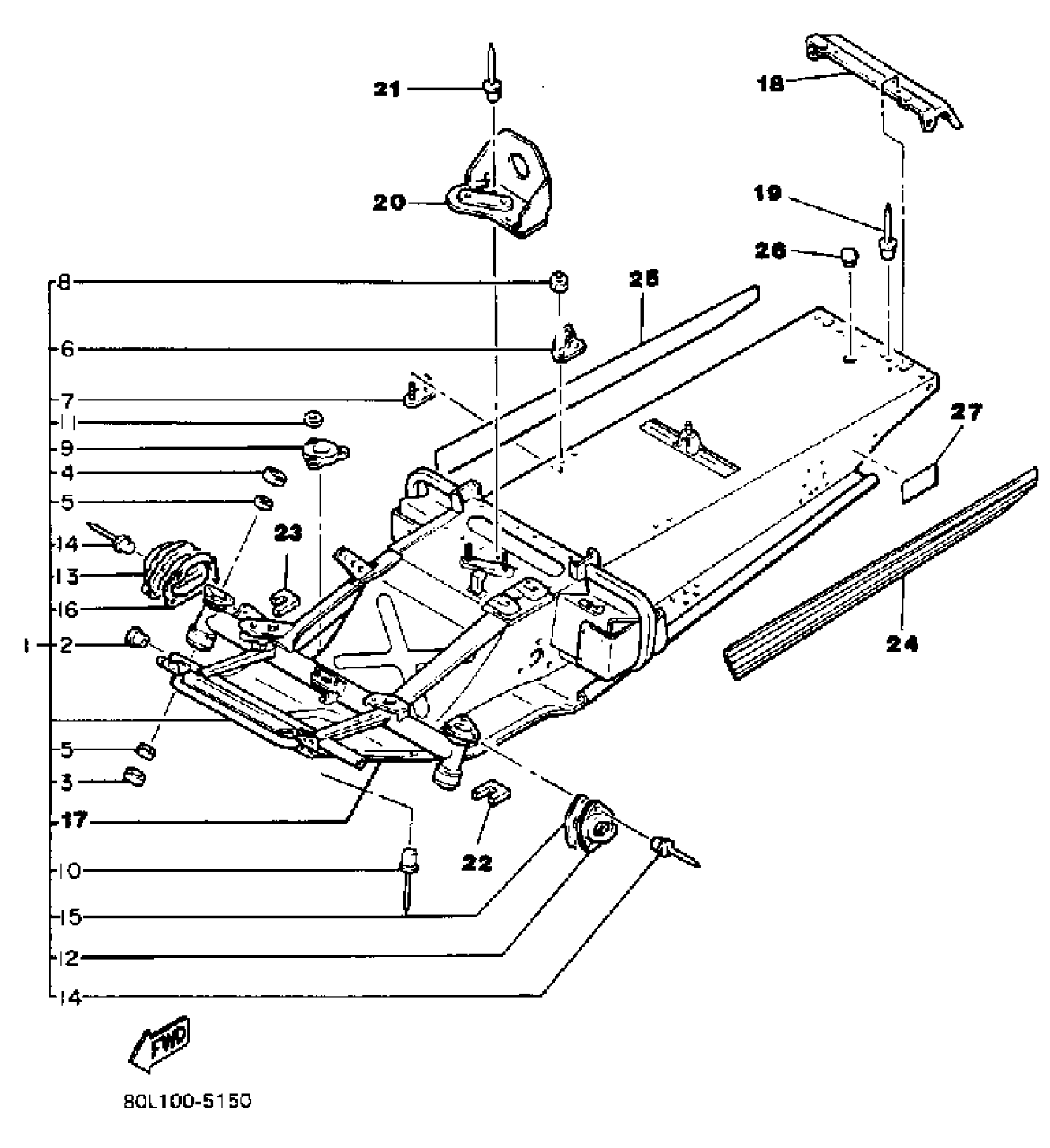

Find the part on the Frame diagram for your 1985 Yamaha Phazer (PZ480J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Phazer (PZ480J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

80L-21910-00-00

1
Out of stock

2

.. BUSH, SOLID

90381-12047-00

1
Out of stock

3

. OIL SEAL

93103-44134-00

1
Out of stock

4

. OIL SEAL, SD-TYPE

93102-44280-00

1
Out of stock

5

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

6

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

7

. PATCH 6

8V0-21966-00-00

1
Out of stock

8

NUT, NYLON

95707-06300-00

1

$3.20

In stock

9

. SPACER

80L-21998-00-00

1
Out of stock

10

RIVET, BLIND (8M6)

90267-48051-00

1

$1.88

In stock

11

WASHER, PLATE

90201-04027-00

1
Out of stock

12

. COVER 1

80L-2198F-00-00

1
Out of stock

13

. COVER 2

80L-2198G-00-00

1
Out of stock

14

RIVET, BLIND(8R6)

90267-40105-00

—

$1.62

In stock

15

. WASHER 1

80L-77525-00-00

1
Out of stock

16

. WASHER 2

80L-77526-00-00

1
Out of stock

17

. BELLY PAN (80L-21912-00)

8X9-21912-00-00

1
Out of stock

18

REINEFORCEMENT, FRAME REAR 1

8V0-21923-01-00

1
Out of stock

19

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

20

BRACKET, FUEL TNK 2

80L-2194R-00-00

1
Out of stock

21

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

22

TAPE 3

80L-7717G-00-00

1
Out of stock

23

TAPE 4

80L-7717H-00-00

1
Out of stock

24

EMBLEM 1

80L-77351-00-00

1
Out of stock

25

EMBLEM 2

80L-77352-00-00

1
Out of stock

26

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

27

INDICATOR 2

8K2-77742-00-00

1
Out of stock
