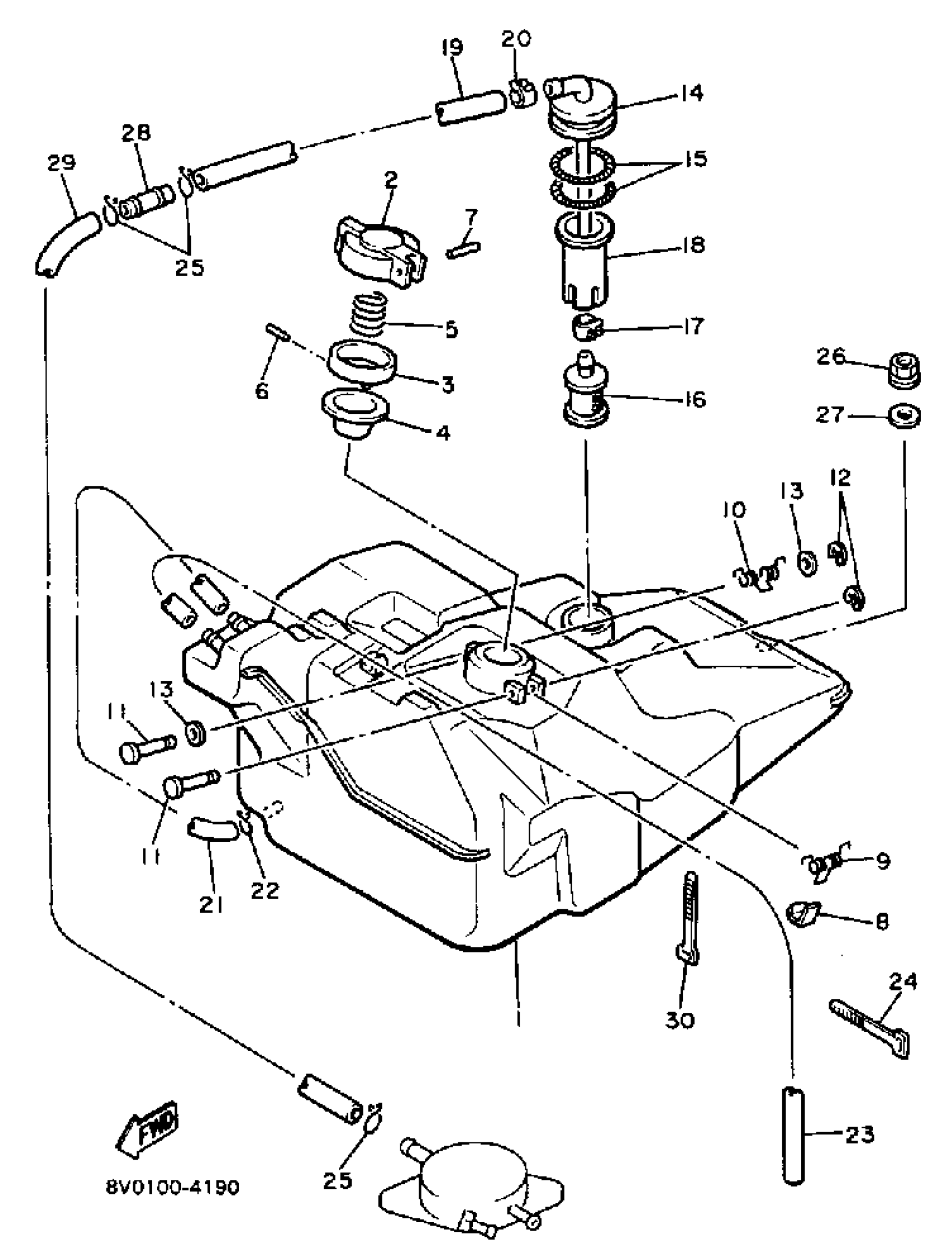

Yamaha PZ480J (PHAZER) 1985 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8V0-24111-03-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

SPRING, TORSIOW (8F3)

90508-08353-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

WASHER, PLATE 8077743700

90201-03313-00

$9.49

14

PIPE, SUCTION 1 (8V0-24335-01)

86M-24335-00-00

Unavailable

15

SPRING, TENSION (8R4)

90506-06261-00

$9.49

16

STAY, HEADLIGHT

29U-23174-00-00

Unavailable

17

LABEL

29U-83585-10-00

Unavailable

18

LABEL

24W-83585-20-00

Unavailable

19

BOLT, HEXAGON

97017-08025-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

Unavailable

22

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

23

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

24

WASHER, SPRING

92907-06100-00

Unavailable

25

WASHER(6TA)

92907-06600-00

Unavailable

26

GUIDE, CABLE

21V-23389-00-00

Unavailable

27

HOLDER, ADJUSTING

29U-26396-00-00

Unavailable

28

BOLT, HEXAGON

97017-06020-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

BAND, SWITCH CORD

437-83936-01-00

Unavailable
