Description

Price

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

2

LEVER 1

8H8-83912-00-00

$20.99

3

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

4

SCREW, PAN

98507-05040-00

$8.49

5

NUT, NYLON

95707-05300-00

$4.24

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

7

COLLAR, LEVER

802-83913-00-00

Unavailable

8

. SCREW, TAPPING

97780-30312-00

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

11

STOP SWITCH ASSY

88R-82530-00-00

$31.99

12

LEVER HOLDER ASSEMBLY (RIGHT)

84R-82720-00-00

Unavailable

13

LEVER, THROTTLE

8V0-42138-00-00

$64.99

14

EMERGENCY SAFETYSW

82K-82575-09-00

Unavailable

15

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

16

NUT, NYLON

95707-05300-00

$4.24

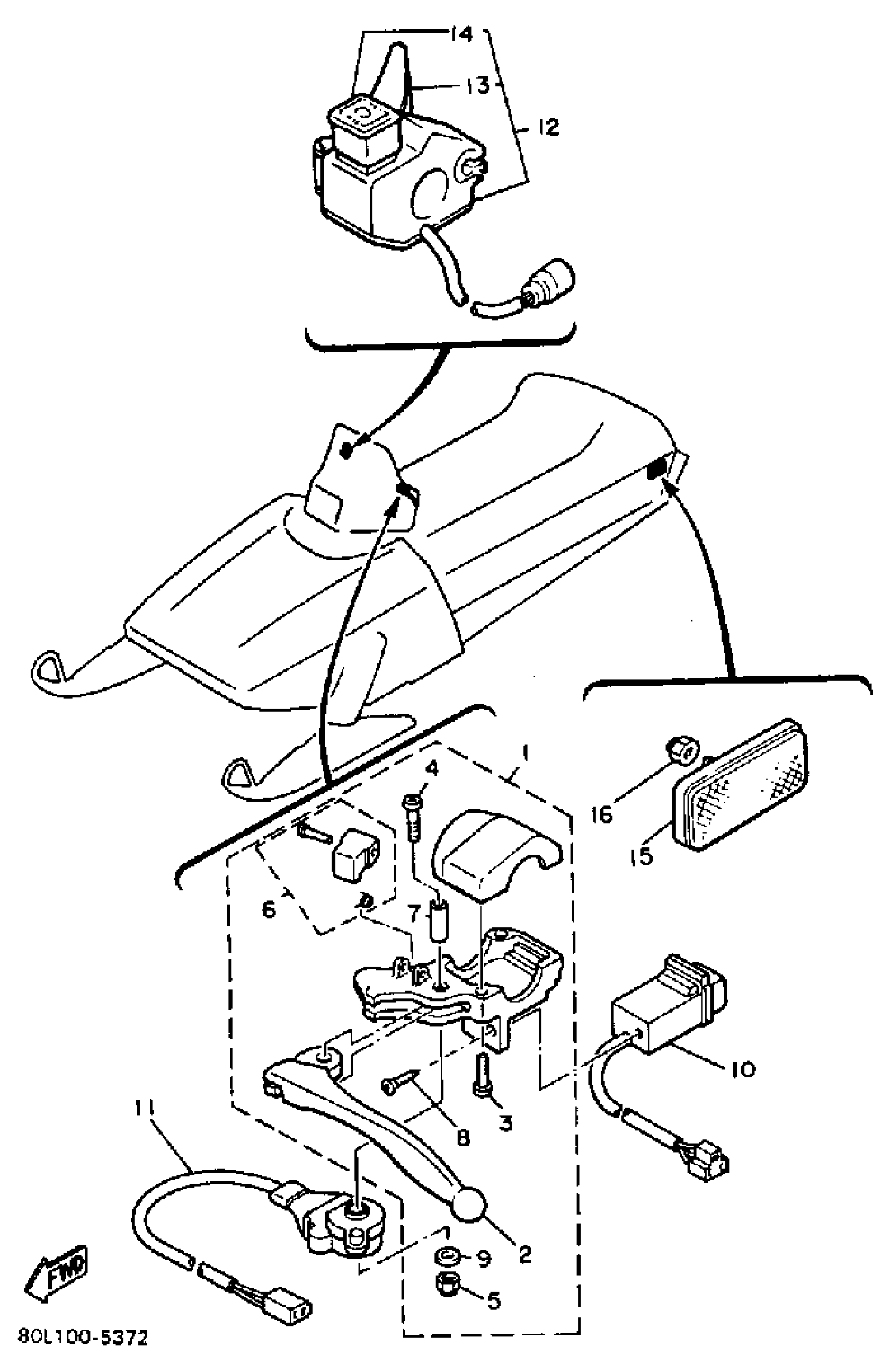

Yamaha PZ480J (PHAZER) 1985 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

LEVER 1

SCREW, PAN HEAD(41N)

SCREW, PAN

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

. WASHER, PLAIN

BEAM SWITCH ASSY

STOP SWITCH ASSY

LEVER HOLDER ASSEMBLY (RIGHT)

LEVER, THROTTLE

EMERGENCY SAFETYSW

REAR REFLECTOR ASSY

NUT, NYLON
