1984 Yamaha Phazer (PZ480H) SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1984 Yamaha Phazer (PZ480H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

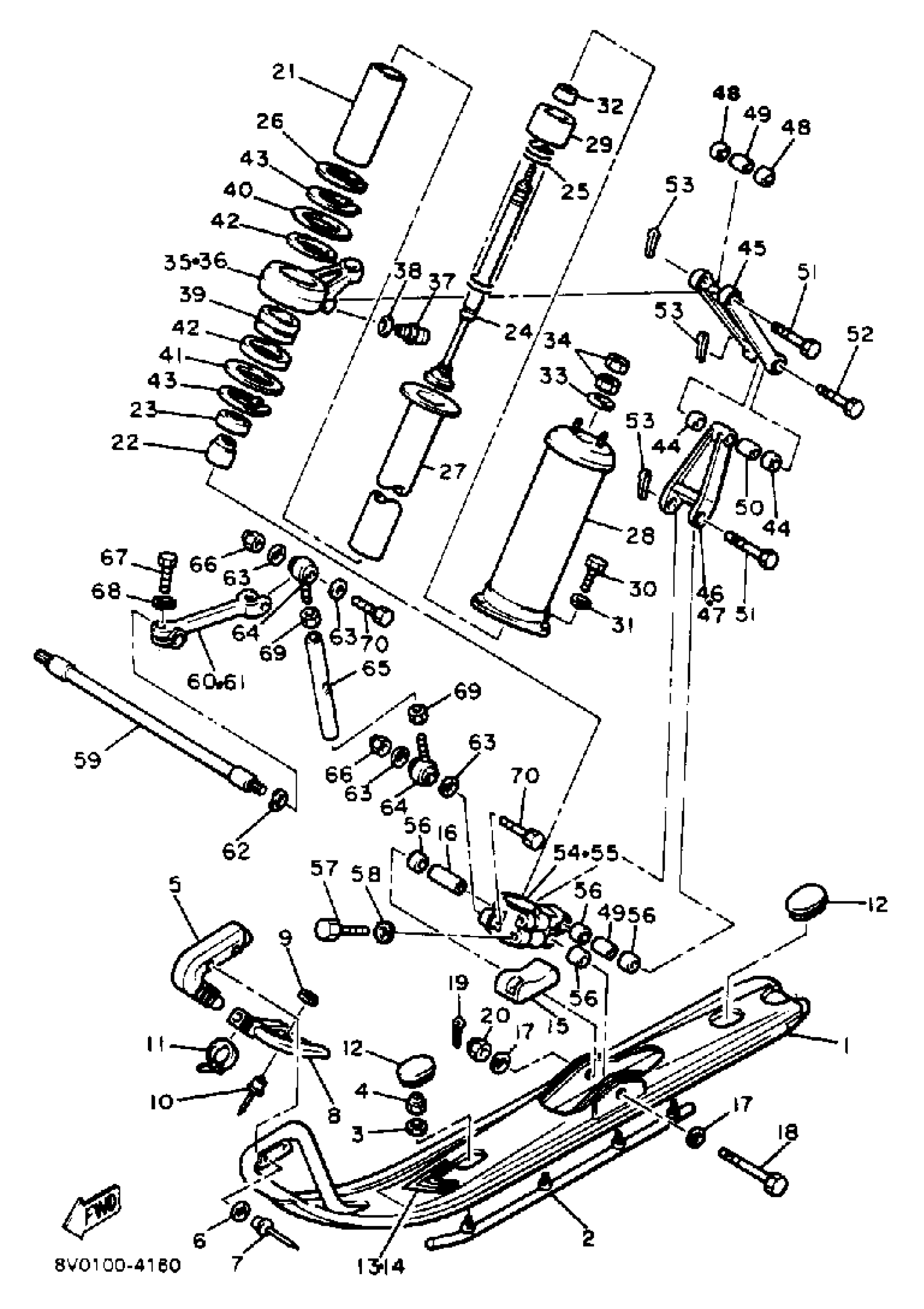

1984 Yamaha Phazer (PZ480H) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8V0-23710-02-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

PROTECTOR, SKI

8M6-23747-00-00

1
Out of stock

6

WASHER, PLATE

90201-042E0-00

1

$6.38

In stock

7

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

8

PROTECTOR, SKI 2

8V0-23748-00-00

1
Out of stock

9

WASHER, PLATE

90201-042E0-00

1

$6.38

In stock

10

RIVET, BLIND (8V0)

90267-40110-00

1

$1.78

In stock

11

BAND

1UA-82591-00-00

1
Out of stock

12

CAP 1

8V0-23741-00-00

1
Out of stock

13

EMBLEM 10

8V0-77365-00-00

1
Out of stock

14

EMBLEM 11

8V0-77366-00-00

1
Out of stock

15

STOPPER 1

8V0-23743-01-00

1
Out of stock

16

COLLAR (8V0)

90387-106J3-00

—

$13.95

In stock

17

WASHER(6TA)

92907-10600-00

—
Out of stock

18

BOLT, WITH HAUL (31A)

90102-10050-00

—

$16.75

In stock

19

PIN, COTTER

91490-20025-00

—

$1.31

In stock

20

NUT, NYLON

95707-10300-00

—

$6.68

In stock

21

PROTECTOR

8V0-2376R-00-00

1
Out of stock

22

SEAT, SPRING 1

8V0-23768-00-00

1
Out of stock

23

BEARING, SPECIAL

93399-99908-00

1
Out of stock

24

ABSORBER ASSEMBLY (8V0-2376A-00)

80L-2376A-00-00

1
Out of stock

25

SPRING, COMPRESSION

90501-60718-00

1
Out of stock

26

STOP, REBOUND

8V0-22494-00-00

1
Out of stock

27

CYLINDER, SHOCK ABSABSORBER

8V0-22471-00-00

1
Out of stock

28

HOLDER, ABSORBER

8V0-2376J-00-00

1
Out of stock

29

BUMP, STOP

8V0-22493-00-00

1
Out of stock

30

BOLT, W/WASHER

(97516-06120-00)

1
Out of stock

31

WASHER, SPRING

92907-06100-00

—
Out of stock

32

CUSHION

8V0-2386J-00-00

1
Out of stock

33

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

34

. NUT

95380-08700-00

1

$3.07

In stock

35

ARM, OUTSIDE 1

8V0-23851-01-00

1
Out of stock

36

ARM, OUTSIDE 2

8V0-23852-01-00

1
Out of stock

37

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

38

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

39

BUSH, BIMETAL FORMED

90384-63188-00

1
Out of stock

40

UNAVAILABLE IN PRICE BOOK

90201-657F3-00

1
Out of stock

41

WASHER, PLATE

90201-635H7-00

1
Out of stock

42

OIL SEAL

93109-63044-00

1
Out of stock

43

CIRCLIP

93410-63066-00

1
Out of stock

44

—

$9.15

In stock

45

ARM, FRONT 1

8V0-2382E-01-00

1
Out of stock

46

ARM, FRONT 2 (L, H)

8V0-2382F-02-00

1
Out of stock

47

ARM, FRONT4 (R, H)

8V0-2383F-02-00

1
Out of stock

48

—

$9.29

In stock

49

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

50

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

51

BOLT, WITH HOLE

90102-10054-00

1
Out of stock

52

BOLT, WITH HOLE

90102-10055-00

1
Out of stock

53

PIN, COTTER

91490-20025-00

—

$1.31

In stock

54

BRACKET, 1

8V0-2376E-01-00

1
Out of stock

55

BRACKET 2

8V0-2377E-01-00

1
Out of stock

56

—

$9.15

In stock

57

BOLT

97017-08035-00

—
Out of stock

58

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

59

BAR, STABLZR FRONT

8V0-2386E-01-00

1
Out of stock

60

ARM, STABILIZER 1

8V0-2386L-01-00

1
Out of stock

61

ARM, STABILIZER 2

8V0-2386M-01-00

1
Out of stock

62

WASHER, WAVE (666)

90206-12052-00

—

$3.48

In stock

63

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

64

JOINT, UNIVERSAL 1

J45-23841-00-00

—
Out of stock

65

LINK, STABLZR FRONT

8V0-2386F-01-00

1
Out of stock

66

NUT, U

95617-08100-00

1

$6.78

In stock

67

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

68

WASHER, SPRING

92907-06100-00

—
Out of stock

69

NUT, HEXAGON SMALL

95317-08700-00

—

$7.05

In stock

70

BOLT

97017-08035-00

—
Out of stock
