- PZ480H (PHAZER) 1984
SHROUD WINDSHIELD

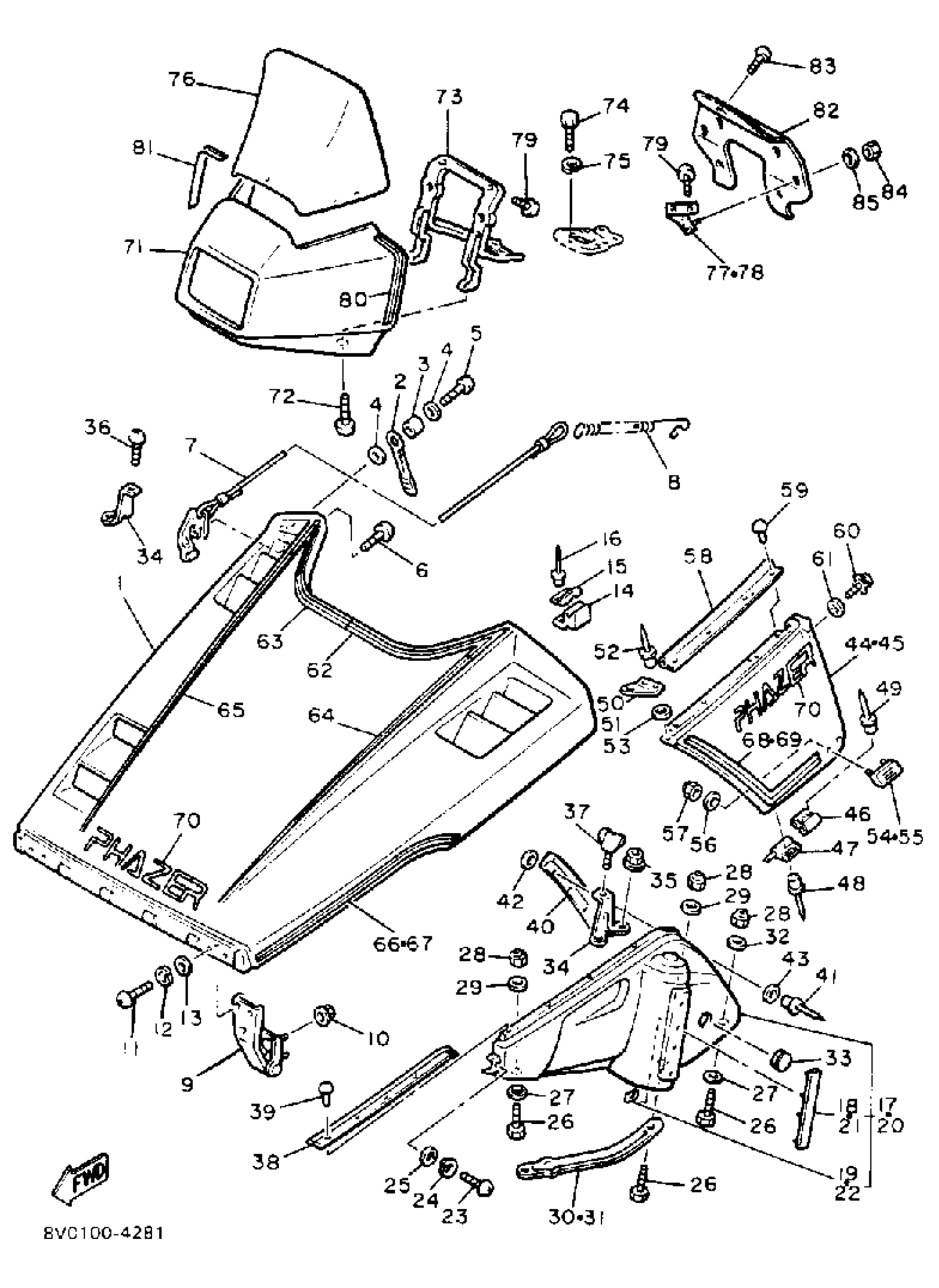

Yamaha PZ480H (PHAZER) 1984 SHROUD WINDSHIELD Diagram
#
1
SHROUD ASY
8V0-W7714-00-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06025-00
$8.49
6
SCREW, BINDING
98907-06010-00
$1.65
7
STOPPER, SHROUD
8V0-77118-01-00
Unavailable
8
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
8
CLAMP, ROD
8V0-77159-00-00
Unavailable
10
NUT, FLANGE(7NB)
95780-06500-00
$2.60
11
SCREW, PAN HEAD
90157-05M19-00
Unavailable
12
WASHER(3SX)
92907-05100-00
$8.49
13
WASHER, PLAIN LARGE
92907-05200-00
$4.46
14
STOPPER
8V0-77188-00-00
Unavailable
15
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
16
RIVET, BLIND
90267-40029-00
Unavailable
17
HOOD 1
8V0-21982-00-00
Unavailable
18
. EMBLEM 1
8V0-77141-00-00
Unavailable
19
NUT, SPRING (1L9)
90183-04012-00
Unavailable
20
HOOD 2
8V0-21983-00-00
Unavailable
21
. EMBLEM 1
8V0-77141-00-00
Unavailable
22
NUT, SPRING (1L9)
90183-04012-00
Unavailable
23
SCREW, PAN
98517-05012-00
Unavailable
24
WASHER(3SX)
92907-05100-00
$8.49
25
WASHER, PLAIN LARGE
92907-05200-00
$4.46
26
BOLT, HEXAGON
97017-06016-00
Unavailable
27
WASHER, PLATE
90201-06380-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
WASHER, PLATE
90201-06380-00
Unavailable
30
GUARD, SUB FRAMEFRAME FR 1
8V0-21995-01-00
Unavailable
31
GUARD, SUB FRAMEFRAME FR 2
8V0-21996-01-00
Unavailable
32
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
33
GROMMET
90480-40347-00
Unavailable
34
BRACKET 3
8V0-2196F-00-00
Unavailable
35
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
36
SCREW, BIND (705)
98980-06016-00
Unavailable
37
BOLT, WING
90122-06015-00
Unavailable
38
BUSH, RUBBER 1
8V0-77515-01-00
Unavailable
39
RIVET(81E)
90269-05055-00
Unavailable
40
TRIM 1
8V0-2196T-00-00
Unavailable
41
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
42
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
43
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
44
HOOD 3
8V0-2197H-00-00
Unavailable
45
HOOD 4
8V0-2198H-00-00
Unavailable
46
BRACKET, 1
8V0-2194X-00-00
Unavailable
47
BRACKET 2
88R-2195X-00-00
Unavailable
48
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
49
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
50
PROTECTOR 3
8V0-77553-00-00
Unavailable
51
PROTECTOR 4
8V0-77554-00-00
Unavailable
52
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
53
WASHER, PLATE
90201-04027-00
Unavailable
54
PROTECTOR 1
8V0-77551-00-00
Unavailable
55
PROTECTOR 2
8V0-77552-00-00
Unavailable
56
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
57
NUT, NYLON
95707-05300-00
Unavailable
58
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
59
RIVET(81E)
90269-05055-00
Unavailable
60
HOLDER, LATCH
8V0-77175-00-00
Unavailable
61
PLATE
4U5-2176E-00-00
Unavailable
62
STRIPE 1
8V0-77281-00-00
Unavailable
63
STRIPE 2
8V0-77282-00-00
Unavailable
64
STRIPE 3
8V0-77283-00-00
Unavailable
65
STRIPE 4
8V0-77284-00-00
Unavailable
66
ORNAMENT 1
8V0-77163-00-00
Unavailable
67
ORNAMENT 2
8V0-77164-00-00
Unavailable
68
STRIPE 5
8V0-77285-00-00
Unavailable
69
STRIPE 6
8V0-77286-00-00
Unavailable
70
EMBLEM 6
8V0-77356-00-00
Unavailable
71
FAIRING 1
8V0-77231-00-00
Unavailable
72
SCREW, BIND(1JK)
98980-06010-00
Unavailable
73
STAY, FAIRING
8V0-77241-00-00
Unavailable
74
BOLT, HEXAGON
97017-06025-00
Unavailable
75
WASHER, SPRING
92995-06100-00
Unavailable
76
WINDSHIELD
8BH-77210-00-XX
Unavailable
77
WASHER 1
8V0-77218-00-00
Unavailable
78
WASHER 2
8V0-77219-00-00
Unavailable
79
SCREW, PAN HEAD
98502-05006-00
Unavailable
80
STRIPE 9
8V0-77289-00-00
Unavailable
81
STRIPE 10
8V0-77291-00-00
Unavailable
82
COVER, HEADLIGHT
8V0-77251-00-00
Unavailable
83
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
84
NUT, CAP
95307-05800-00
Unavailable
85
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
