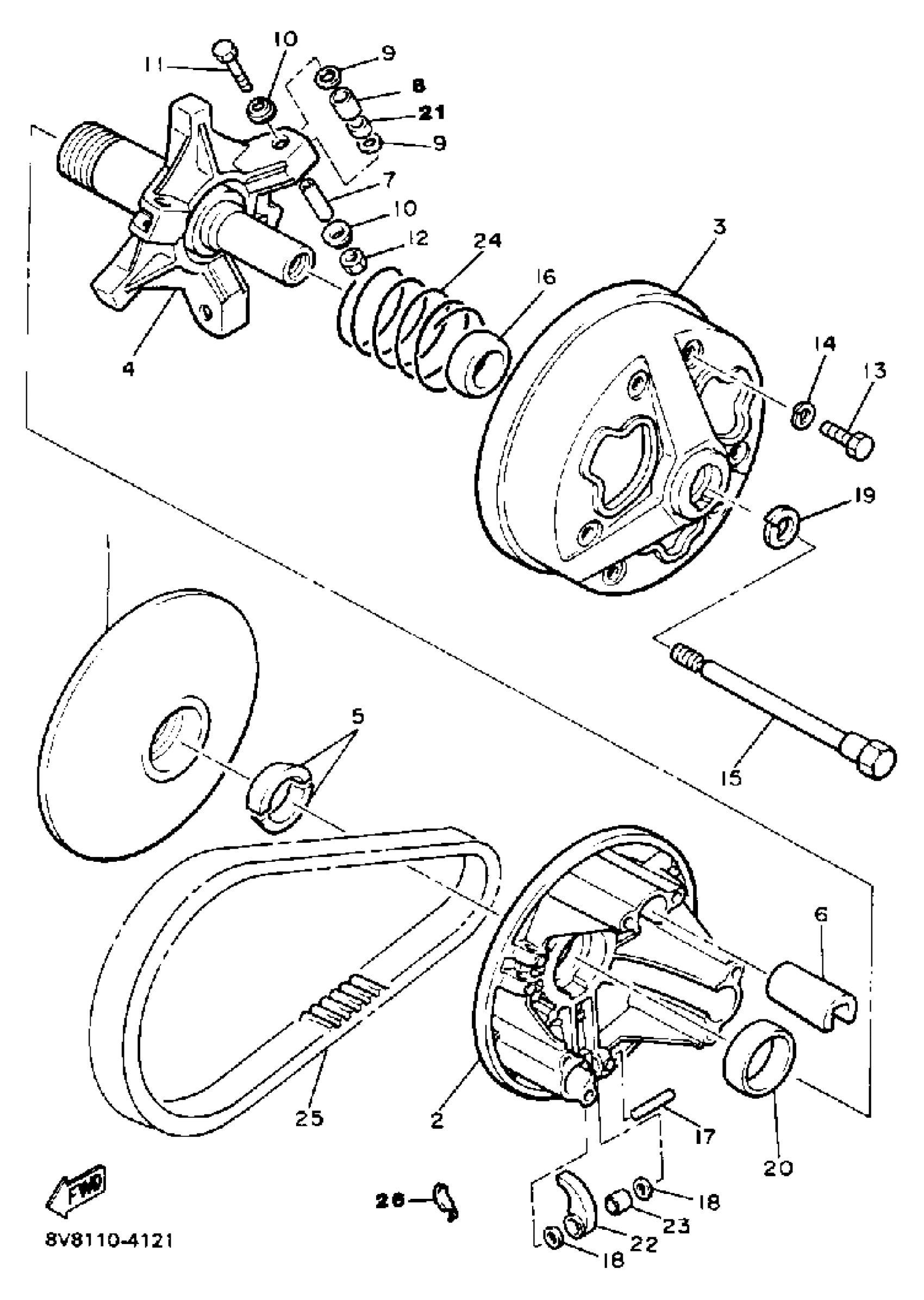

Yamaha PZ480H (PHAZER) 1984 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

Unavailable

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

Unavailable

3

CAP

8V0-17631-00-00

Unavailable

4

SPIDER COMPLETE

82M-17640-02-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

SLIDER

88X-17653-00-00

$14.49

7

COLLAR(83R)

90387-057W5-00

$14.99

8

COLLAR

90387-096J5-00

Unavailable

9

WASHER, PLATE(87G)

90202-08205-00

$8.49

10

WASHER, CONICAL SPRING (8V8)

90208-05036-00

$9.49

11

BOLT (674)

97313-05035-00

Unavailable

12

NUT, U

95617-05100-00

$9.49

13

BOLT(JF7)

97080-06030-00

$5.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT (L=156.5MM)

8V0-17647-10-00

$25.99

16

BUSH(83R)

90389-28032-00

Unavailable

17

PIN, DOWEL (8V8)

93607-44190-00

Unavailable

18

WASHER, PLATE (8V8)

90201-077F5-00

Unavailable

19

WASHER(JN5)

92907-16100-00

Unavailable

20

BUSH (81H)

90389-40029-00

Unavailable

21

BUSH, SOLID

90380-08132-00

Unavailable

22

WEIGHT, WITH BUSH

8V0-W176A-00-00

Unavailable

23

BUSHING

8V0-17677-02-00

Unavailable

24

SPRING, COMPRESSION

90501-45534-00

Unavailable

24

SPRING, COMPRESSION

90501-520A2-00

Unavailable

25

V-BELT

89X-17641-01-00

Unavailable

26

CLUTCH TUNE-UP KIT (K)

89X-00000-50-00

Unavailable

26

CLUTCH REPAIR KIT

89X-17601-09-00

Unavailable

26

SPACER

(8V0-17649-00-00)

Unavailable
