Description

Price

1

HEADLIGHT UNIT ASSY

86M-84310-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

. DAMPER, HEADLIGHT 1

8V0-84366-00-00

Unavailable

4

DAMPER, HEADLIGHT 1

8W6-84366-00-00

Unavailable

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

TAILLIGHT UNIT ASSY

8K4-84710-01-00

$97.99

7

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

8

BASE, TAILLIGHT

8K4-84711-01-00

$36.99

9

LENS, TAILLIGHT

8K4-84721-01-00

$43.99

10

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

11

SEAL

3TJ-14457-00-00

Unavailable

12

GROMMET

8K4-84718-00-00

$2.02

13

COLLAR

90387-06166-00

$12.49

14

WASHER, PLATE

90201-06747-00

$8.49

15

BOLT(3RV)

97014-06035-00

$2.75

16

WASHER, SPRING

92995-06100-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

19

. BULB (12V5W)

8V0-85353-00-00

Unavailable

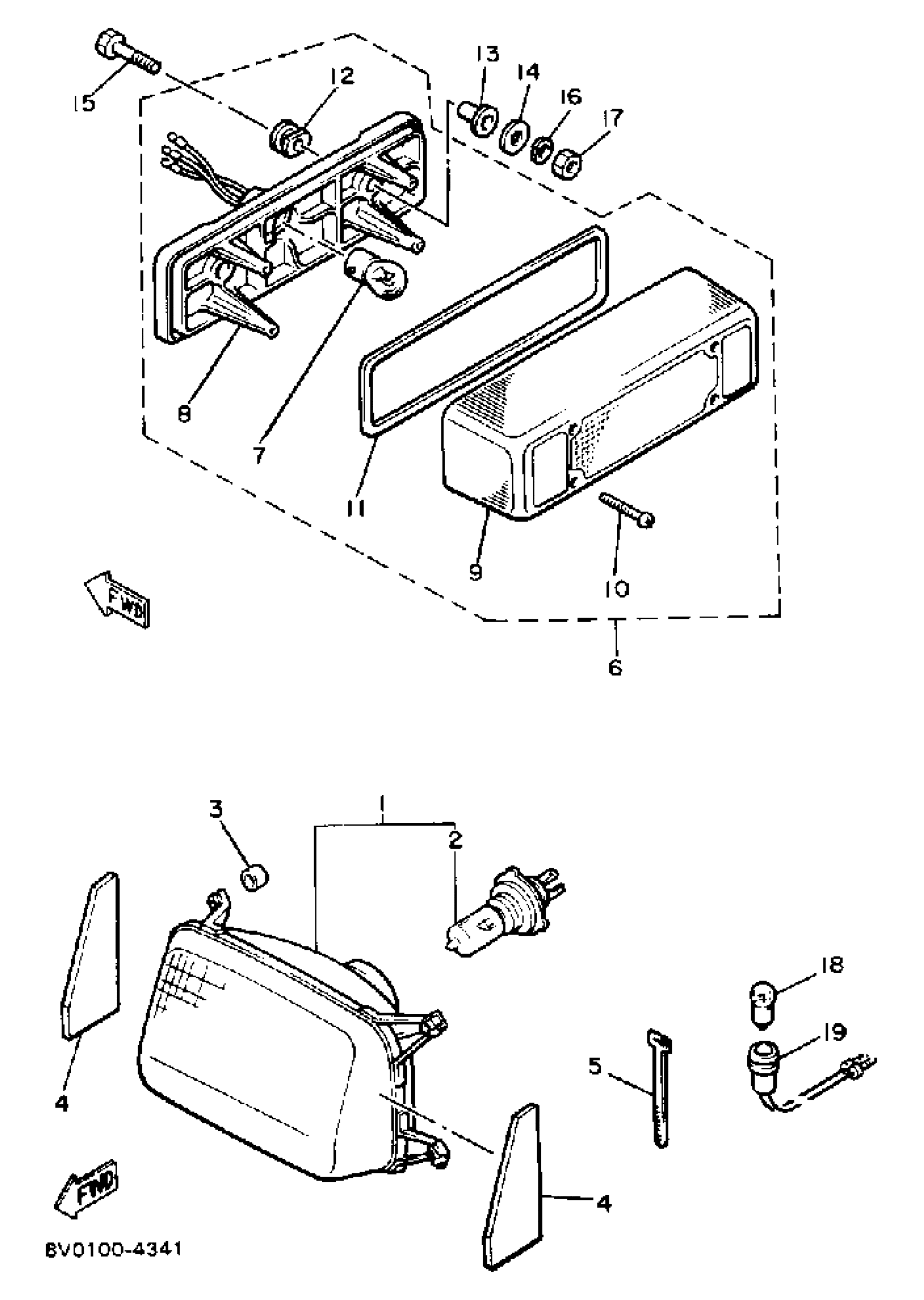

Yamaha PZ480H (PHAZER) 1984 HEADLIGHT TAILLIGHT Diagram

HEADLIGHT UNIT ASSY

BULB, HEADLIGHT

. DAMPER, HEADLIGHT 1

DAMPER, HEADLIGHT 1

BAND, SWITCH CORD

TAILLIGHT UNIT ASSY

BULB(12V32/3CP)1157

BASE, TAILLIGHT

LENS, TAILLIGHT

YBS83-430 SCREW,PANH. TAPPING

SEAL

GROMMET

COLLAR

WASHER, PLATE

BOLT(3RV)

WASHER, SPRING

NUT, HEXAGON

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)
