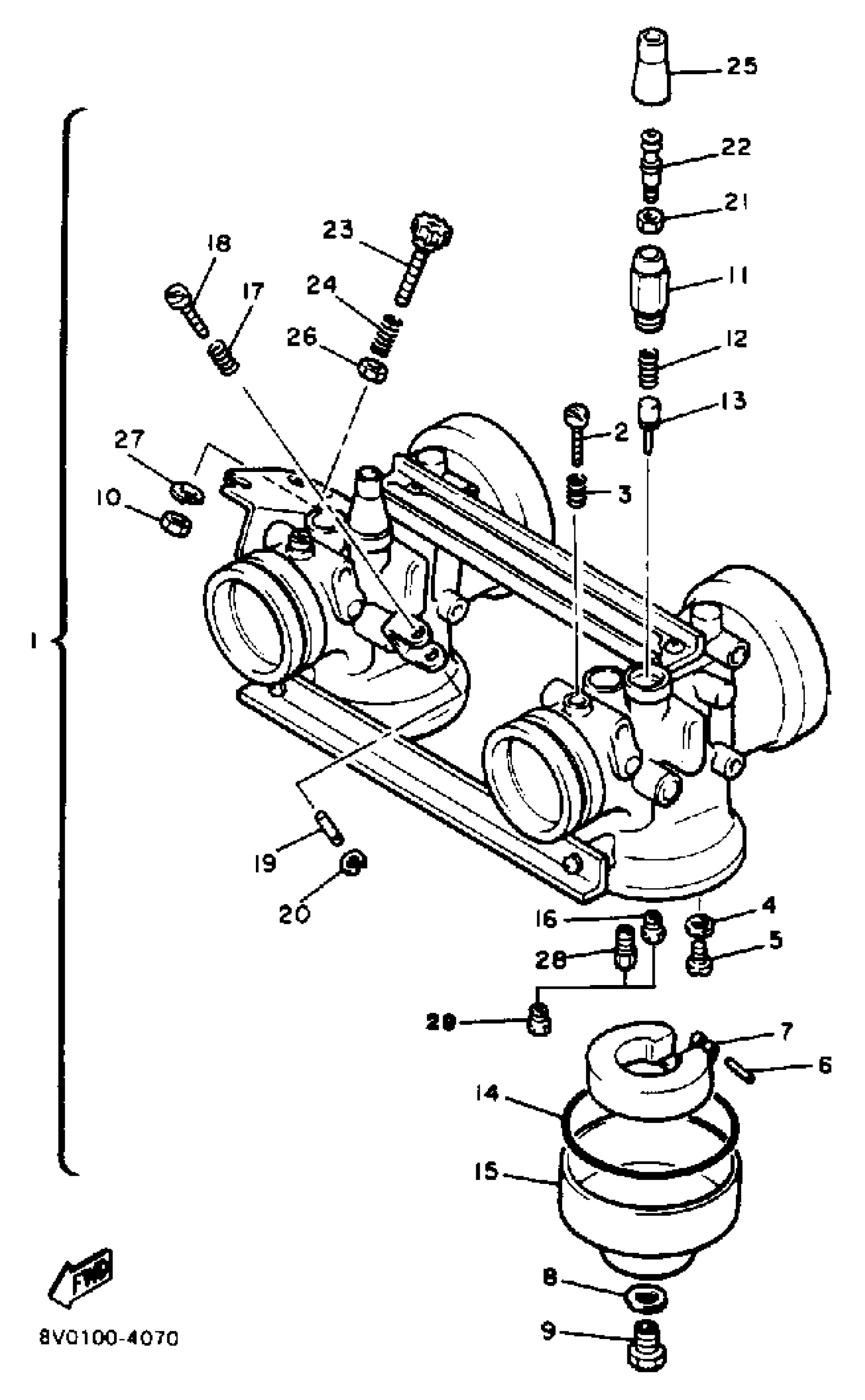

Yamaha PZ480H (PHAZER) 1984 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR

80L-14100-04-00

Unavailable

2

SCREW, PILOT ADJUSTING

620-14211-00-00

$19.99

3

SPRING, PILOT ADJUSTING

7R4-14212-00-00

$2.24

4

WASHER, VALVE SEAT

214-14195-00-00

$7.99

5

VALVE SEAT ASSY

168-14190-15-00

$42.99

6

PIN,FLOAT

8M6-14186-00-00

$9.49

7

FLOAT ASSY

8M6-14185-00-00

$91.99

8

GASKET

286-14198-00-00

$9.99

9

HOLDER

8M6-14261-00-00

$46.99

10

NUT

812-14594-00-00

$6.99

11

CAP, PLUNGER

8G8-14174-00-00

$30.99

12

SPRING, PLUNGER

127-14135-00-00

$7.99

13

PLUNGER, STARTER

8G8-14171-00-00

$34.99

14

GASKET, FLOAT CHAMBER

8M6-14126-00-00

$18.99

15

BODY, FLOAT CHAMBER

8M6-14181-00-00

Unavailable

16

JET, PILOT (# 95)

193-14142-95-00

Unavailable

17

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

18

. STOP SCREW SET

12R-1490K-00-00

Unavailable

19

. ROD, PUSH

584-14992-00-00

Unavailable

20

. CLIP

256-14937-00-00

Unavailable

21

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

22

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

23

. SCREW, THROTTLE

8V0-14122-00-00

Unavailable

24

. SPRING

8V0-14555-00-00

Unavailable

25

CAP

8A7-14169-00-00

Unavailable

26

. NUT

8V0-14358-00-00

Unavailable

27

. WASHER, SPRING

8V0-14356-00-00

Unavailable

28

JET, MAIN (#130)

3G2-14231-26-A0

Unavailable

28

JET,MAIN(#120)

3G2-14231-24-00

Unavailable

28

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

28

JET, MAIN (#135)

3G2-14231-27-00

Unavailable

28

JET, MAIN (#140)

3G2-14231-28-00

Unavailable

28

JET, MAIN (#145)

3G2-14231-29-00

Unavailable

28

JET, MAIN (#150)

3G2-14231-30-A0

Unavailable

28

JET MAIN (#143.8)

3G2-1423E-57-00

Unavailable

29

CAP

8V0-14118-00-00

Unavailable
