AIR SHROUD FAN

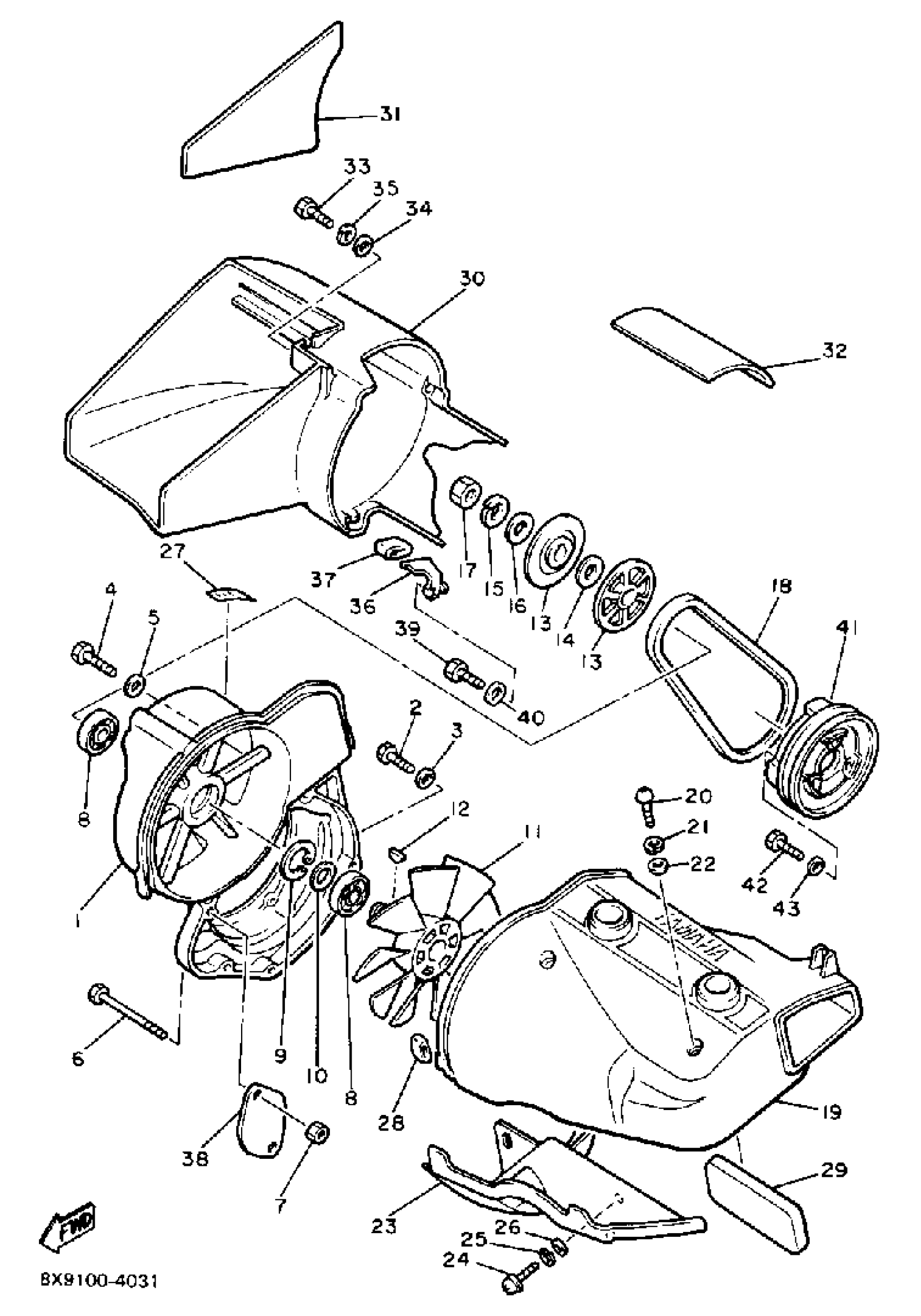

Yamaha PZ480H (PHAZER) 1984 AIR SHROUD FAN Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
BOLT
97013-08035-00
$5.60
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
BOLT, HEXAGON
97013-08050-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BOLT (97321-08090)
97023-08090-00
Unavailable
7
NUT, FLANGE
95704-08500-00
$8.49
8
BEARING
93306-20348-00
$40.99
9
CIR-CLIP (70R)
93420-40064-00
Unavailable
10
WASHER, PLATE (8H8)
90201-17713-00
$7.49
11
FAN
8H8-12611-01-00
$89.99
12
KEY, WOOD RUFF (324)
90280-05014-00
$9.49
13
PULLEY 2
8H8-12619-01-00
$37.99
14
WASHER, CLAW (8H8)
90214-17017-00
$7.49
14
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
15
WASHER(JN5)
92907-16100-00
Unavailable
16
WASHER, PLATE (8H8)
90201-17713-00
$7.49
17
NUT
90170-16425-00
Unavailable
18
BELT
8V0-12612-00-00
Unavailable
19
AIR SHROUD, CYLINDER 1
8V0-12651-02-00
Unavailable
20
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
21
WASHER, SPRING
92907-06100-00
Unavailable
22
WASHER(6TA)
92907-06600-00
Unavailable
23
AIR SHROUD, CYLINDER 2
8V0-12652-00-00
Unavailable
24
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
25
WASHER, SPRING
92907-06100-00
Unavailable
26
WASHER(6TA)
92907-06600-00
Unavailable
27
UNAVAILABLE IN PRICE BOOK
8K4-12628-00-
Unavailable
28
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
29
DAMPER, ENGINE MOUNT 2
3WF-15326-00-00
Unavailable
30
DUCT
8V0-12661-04-00
Unavailable
31
DAMPER, DUCT 2
8V0-12685-01-00
Unavailable
32
DAMPER, DUCT 3
8V0-12686-00-00
Unavailable
33
BOLT,SOCKET
91317-06025-00
Unavailable
34
WASHER, PLATE
90201-06045-00
Unavailable
35
WASHER, SPRING
92907-06100-00
Unavailable
36
STAY 1
8V0-12637-00-00
Unavailable
37
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
38
PLATE
8K4-12633-00-00
Unavailable
39
BOLT, HEXAGON
97017-06016-00
Unavailable
40
WASHER, SPRING
92907-06100-00
Unavailable
41
PULLEY, STARTER
8V0-15723-00-00
Unavailable
42
BOLT (682)
97013-08025-00
Unavailable
43
.. WASHER, PLATE
92990-08600-00
Unavailable
