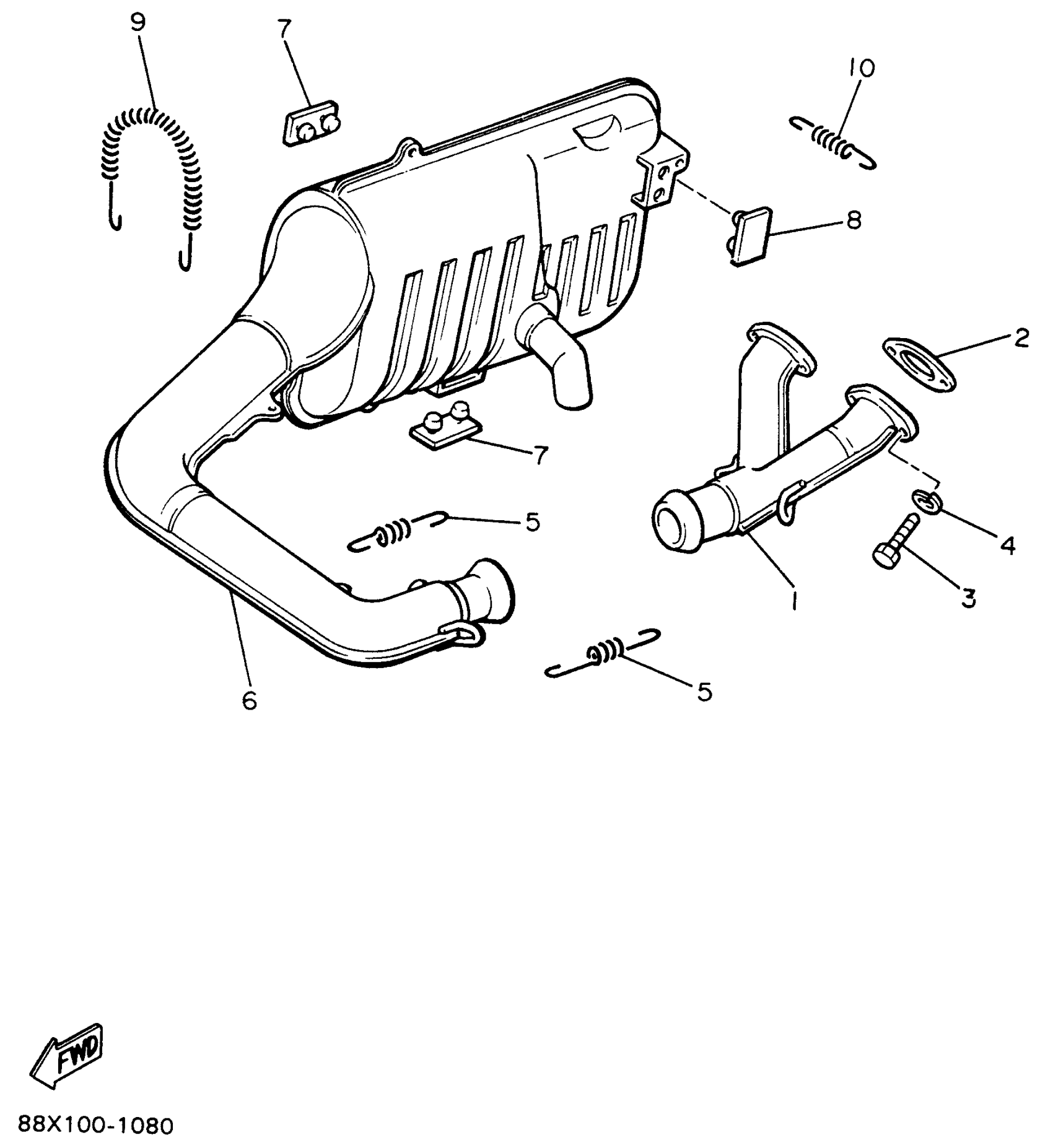

Yamaha PZ480EW (PHAZER II LE (ELEC START)) 8BG3 1996 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

8V0-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT, HEXAGON

97017-08020-00

$9.49

4

WASHER(6TA)

92907-08600-00

$3.03

5

SPRING, TENSION (8R7)

90506-20272-00

$11.49

6

MUFFLER ASSEMBLY 1

88T-14710-00-00

Unavailable

7

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

8

PROTECTOR, MUFFLER 2

88F-14728-00-00

Unavailable

9

SPRING, TENSION

90506-14207-00

Unavailable

10

SPRING, TENSION

90506-16466-00

Unavailable
