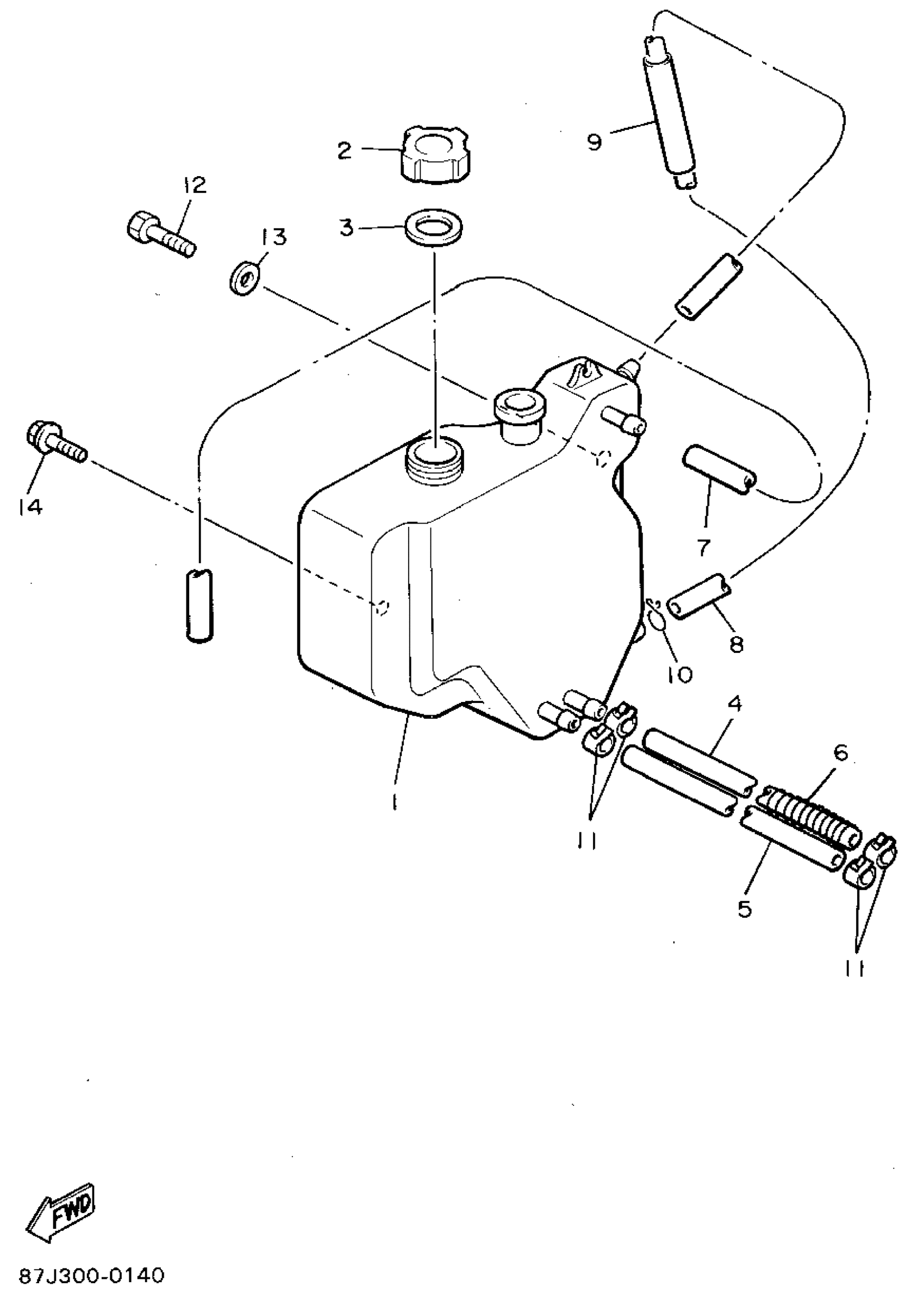

Yamaha PZ480EV (PHAZER II LE (ELEC START)) 8BG2 1995 OIL TANK Diagram

TANK, OIL

8V0-21751-02-00

Unavailable

BODY, CAP

8LU-21771-00-00

$31.99

GASKET, TANK (867)

90430-31003-00

$10.49

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

HOSE

90446-09353-00

Unavailable

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

PROTECTOR, PIPE

88T-24326-00-00

Unavailable

CLIP (8L2)

90467-08017-00

$10.49

CLIP (8A1)

90467-09026-00

$3.28

BOLT(3JP)

97017-06010-00

$3.76

WASHER, PLAIN (646)

92990-06600-00

$2.80

BOLT, WITH WASHER

90119-06152-00

$7.49
